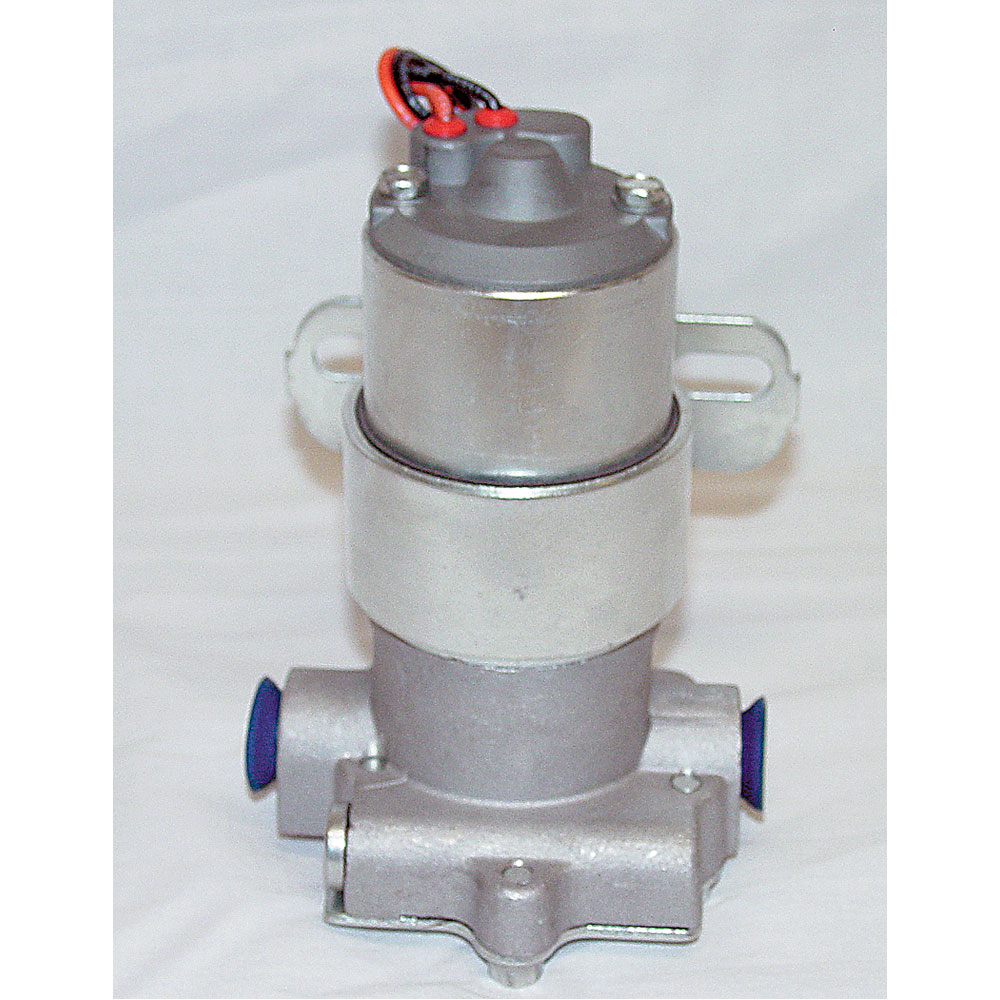

Holley Electric Fuel Pump 12-801-1; Red 97 GPH @ 7 PSI 71 GPH @ 4 PSI Silver Aluminum Gasoline
$158.35
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Tumble Polished Billet Look
- Flows 71 gph At 4 PSI
- Regulator Is Not Required
- Has Externally Accessible Pressure Relief Valve Max 7 PSI
- Lower Housing Casting Designed For Enhanced Fuel Flow
- Maximum Pressure Is 7 PSI
- Motor Draws 2 Amps Current
- Relay Kit P/N 12-753 And 7 1/2 Amp Fuse Recommended
- Constant Fuel Flow With No Pulsation
- Improved Design For Street/Strip Applications
- Distinctive Red Logo
- Flows 97 gph [Free Flow]
- Lower Housing Casting Designed For Enhanced Fuel Flow
- Maximum Pressure Is 7 PSI
- Motor Draws 2 Amps Current
- Relay Kit P/N 12-753 And 7 1/2 Amp Fuse Recommended
- Constant Fuel Flow With No Pulsation
- Improved Design For Street/Strip Applications
- Distinctive Red Logo
- Flows 97 gph [Free Flow]
Product Description
The world famous Holley Red, Blue, and Black pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 1970's. Their time-proven rotor/vane design is known to get the job done and readily available rebuild parts allow you to keep on running with minimal expense!
Specifications
- Electric Fuel Pump Model or Series:
- Red
- Compatible Fuels:
- Gasoline
- Volume (Standard Pressure):
- 97 GPH @ 7 PSI
- Volume (High Pressure):
- 71 GPH @ 4 PSI
- Fuel Pump Material:
- Aluminum
- Fuel Pump Finish:
- Silver
- Inlet Port:
- 3/8 in. NPT
- Outlet Port:
- 3/8 in. NPT
- Bypass:
- No
- Includes Fuel Level Sending Unit:
- No
- Includes Seals:
- No
- Includes Strainer:
- No
- Includes Mounting Bracket:
- Yes
- Bracket Material:
- Steel
- Bracket Finish:
- Zinc Plated
- Volume (Free Flow):
- 97 GPH
- Notes:
- Pressure preset @ 7 psi. Gravity feed pump should be mounted below fuel tank level for best results.
- Quantity:
- Sold As Each
