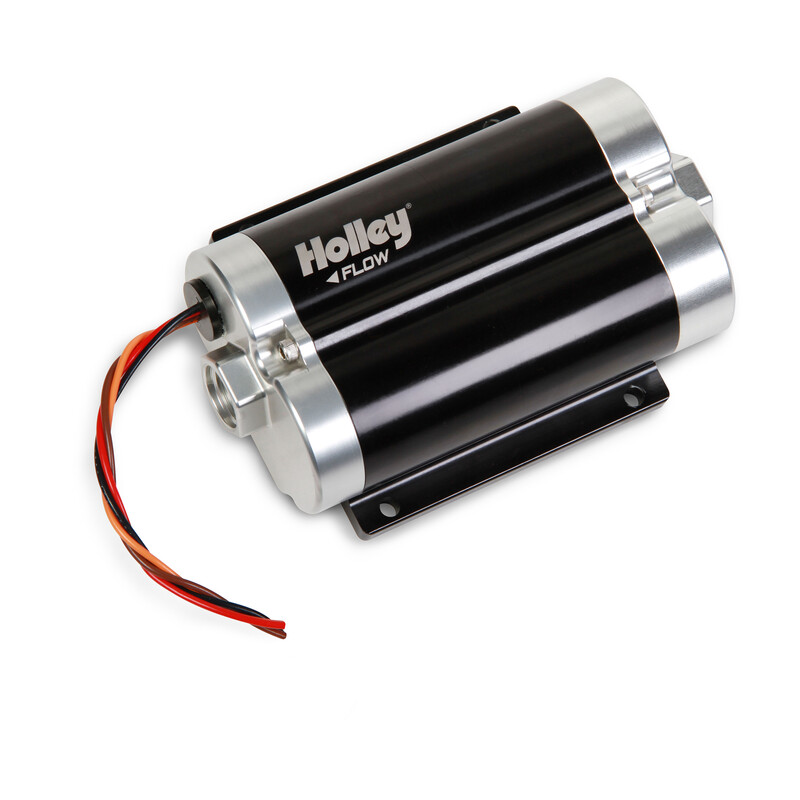

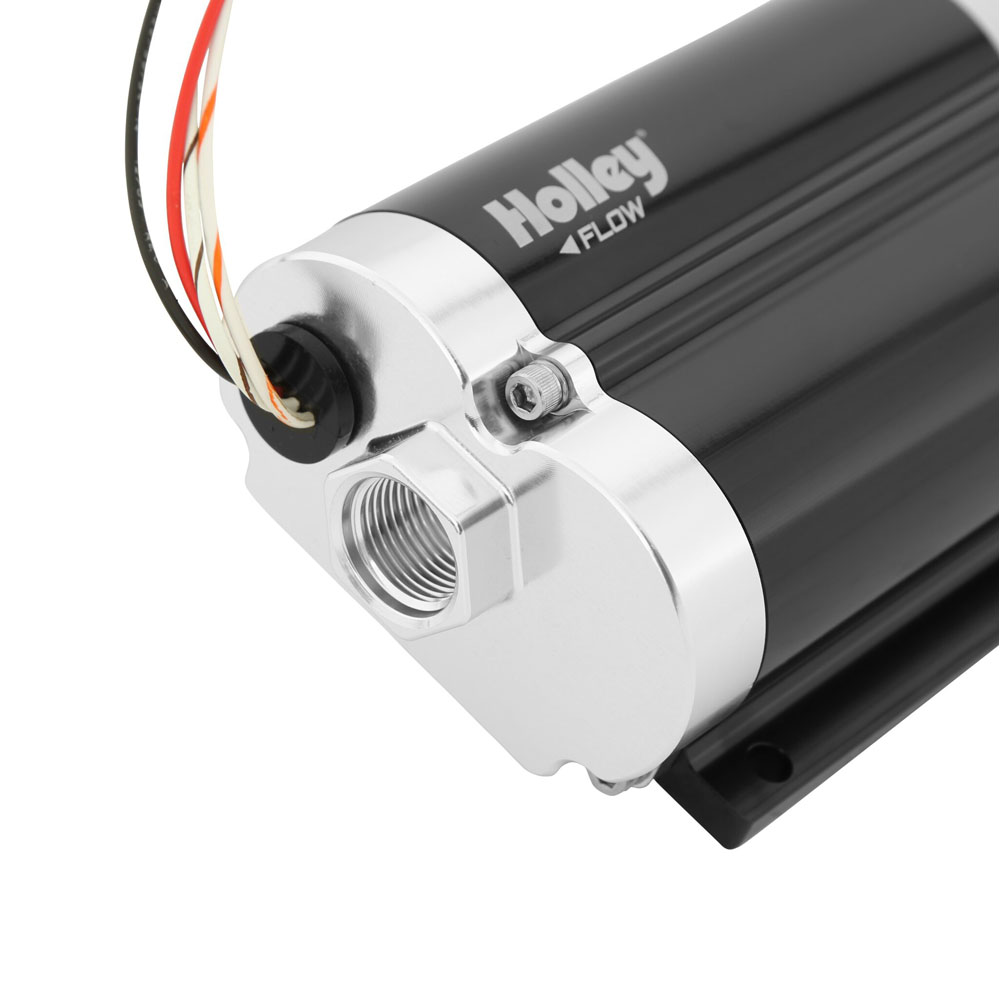

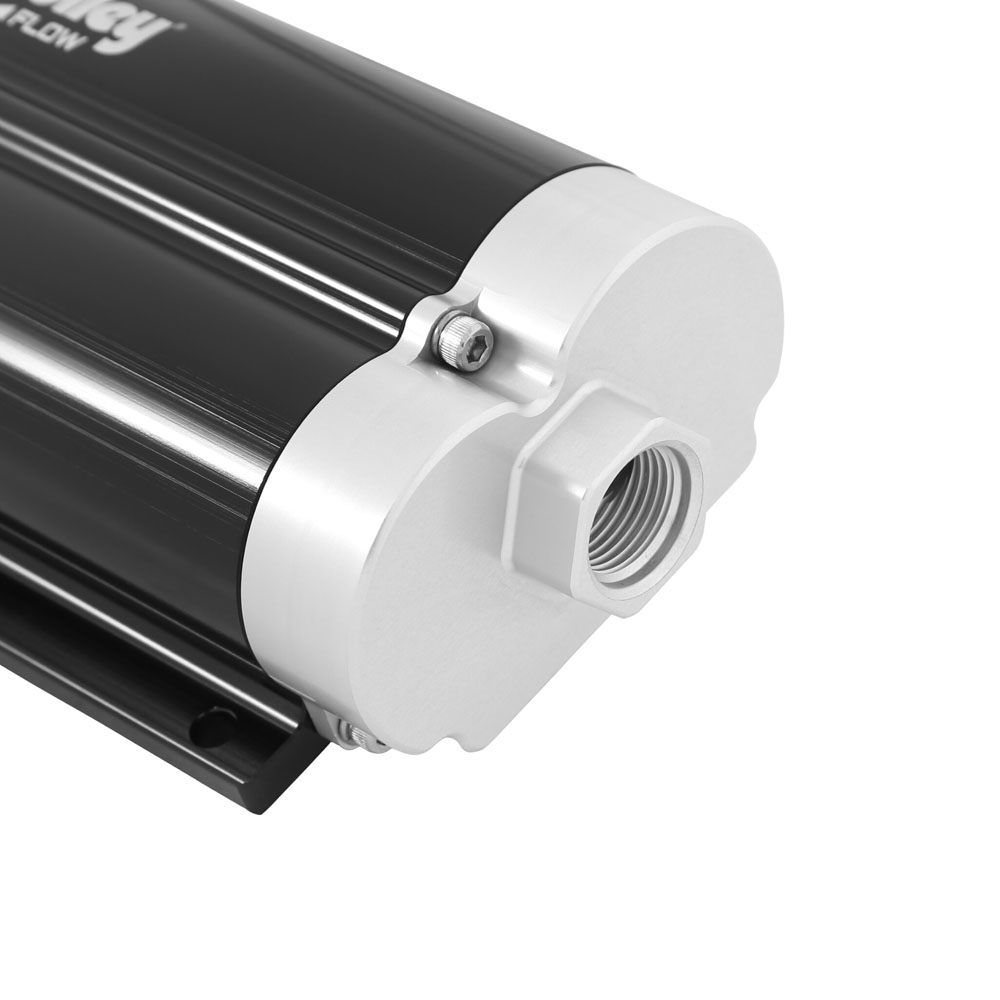

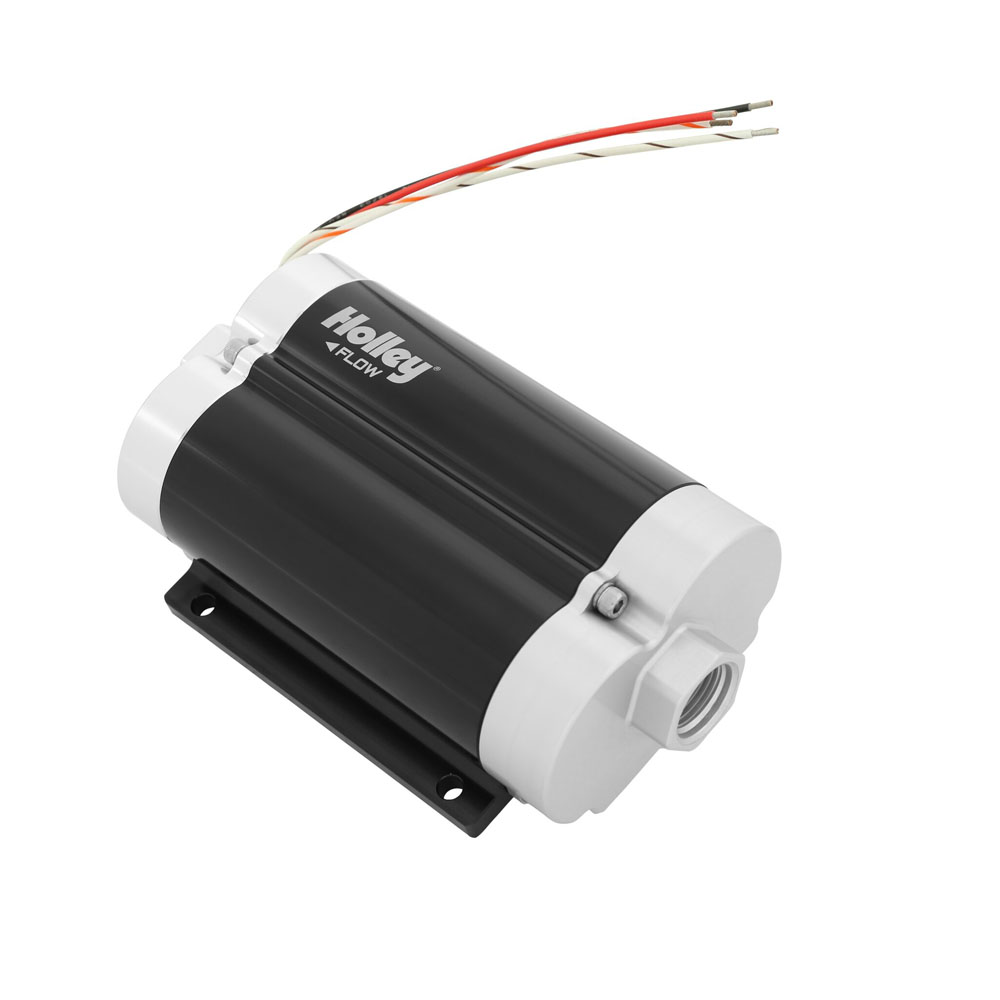

Holley Electric Fuel Pump 12-1600; 160 GPH Dominator 480 LPH @ 43 PSI 427 LPH @ 60 PSI Black Billet Aluminum Gasoline
$511.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Improved Hot Fuel Handling
- Proven Durability Beyond 3000 Hours In Gasoline
- Weighs Only 5.1 lbs..
- Max Current Draw Is 28 Amps
- Billet Aluminum Construction For Durability and Good Looks
- 10AN O-Ring Inlet/Outlet For High Flow and Superior Sealing
- Excellent For Use With Carbureted Or EFI Applications
- Fully Submersible In-Tank Space Savings and Less Plumbing
- Compatible With 12V To 18.5V Systems For Street Or Race Use
- Compact For Easy Installation On Frame Rails Or Other Tight Areas
- Twin Pump Design Allows The Use Of Both Pumps
- Patent Pending Dual Pump Technology
- Billet Aluminum Construction For Durability and Good Looks
- 10AN O-Ring Inlet/Outlet For High Flow and Superior Sealing
- Excellent For Use With Carbureted Or EFI Applications
- Fully Submersible In-Tank Space Savings and Less Plumbing
- Compatible With 12V To 18.5V Systems For Street Or Race Use
- Compact For Easy Installation On Frame Rails Or Other Tight Areas
- Twin Pump Design Allows The Use Of Both Pumps
- Patent Pending Dual Pump Technology
Product Description
Need to feed some serious horsepower? Have a nitrous or forced induction power plant that also sees street duty? Holley's new Dominator in–line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000 horsepower pumps yet have twice the features!
Specifications
- Electric Fuel Pump Series:
- 160 GPH Dominator
- Compatible Fuels:
- Gasoline
- Volume (Standard Pressure):
- 480 LPH @ 43 PSI
- Volume (High Pressure):
- 427 LPH @ 60 PSI
- Fuel Pump Material:
- Billet Aluminum
- Fuel Pump Finish:
- Black
- Inlet Port:
- -10AN ORB Female
- Outlet Port:
- -10AN ORB Female
- Horsepower Rating:
- 1050 HP EFI Forced Induction 1430 HP Carb Forced Induction
- Bypass:
- No
- Includes Fuel Level Sending Unit:
- No
- Includes Seals:
- No
- Includes Strainer:
- No
- Includes Mounting Bracket:
- Yes
- Bracket Material:
- Aluminum
- Bracket Finish:
- Black
- Volume (Free Flow):
- 587 LPH
- Volume (Low Pressure)
- 587 LPH @ 8 PSI
- Notes:
- Pump is not E-85, Alcohol, or Diesel fuel compatible. Please look at #12-1800 for a pump that is compatible with Methonal. Use port style fittings only as regular AN style fittings will cause flow issues and possible damage to pump.
- Quantity:
- Sold As Each
