Holley Electric Fuel Pump 12-136; Die Cast In Tank Retro Fit Natural Die Cast Aluminum Gasoline, E85

$521.95

Part #: 12-136

Brand: Holley

UPC: 090127017654

Estimated Ship Date: 6/8/2025 (From manufacturer)

Specifications Videos

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

The Easiest Way To Convert To An In-Tank EFI System
Installs In Any Fuel Tank From 6.5 to 12 in. Deep
Low Profile Design Is Only 1.275 in. Thick Above Tank Surface

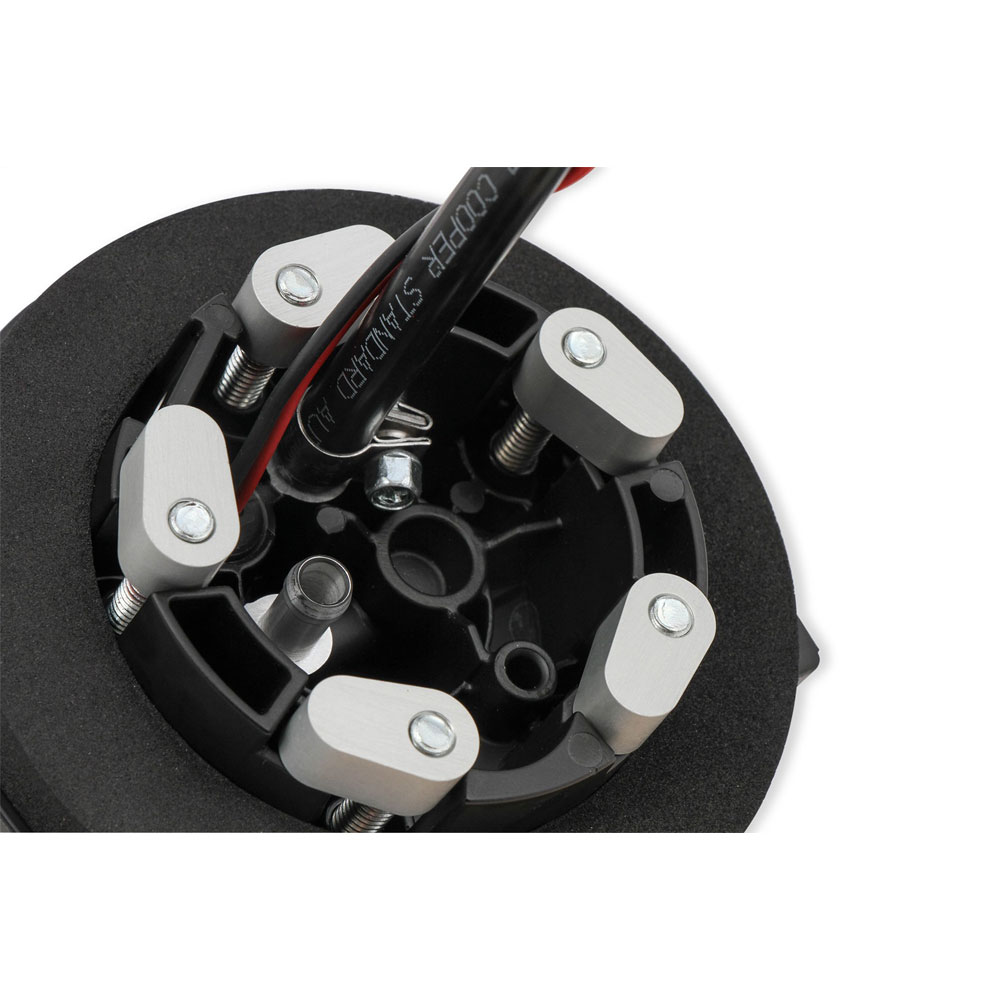

Innovative Clamping System
Clamping System Allows You To Rotate The Unit 360 Degrees
Die Cast Aluminum For Corrosion Resistance
1/4 in. NPT Ports

Product Description

Do you have a Mopar, Ford or other type engine you want to install multi–point fuel Injection on? No, problem, the Holley HP universal retrofit EFI kits are designed to be used with any V–8 intake manifold. The kit comes with injector bungs and un–machined fuel rails so you can modify to fit any single plane 4bbl intake manifold. The HP universal retrofit kits also come with the necessary wiring, ECU, sensors and throttle body. Just select the fuel pump and Injectors of choice and you are off and running.

Specifications

Electric Fuel Pump Series:
Die Cast In Tank Retro Fit: Compatible Fuels:
Gasoline, E85: Fuel Pump Material:
Die Cast Aluminum: Fuel Pump Finish:
Natural: Inlet Port:
1/4 in. NPT: Outlet Port:
1/4 in. NPT: Horsepower Rating:
550 HP (EFI) 700 HP (Carb): Bypass:
Yes: Includes Fuel Level Sending Unit:
No: Includes Strainer:
Yes: Includes Mounting Bracket:
Yes: Volume (Free Flow):
255 LPH: Notes:
Includes HydraMat strainer: Quantity:
Sold As Each
