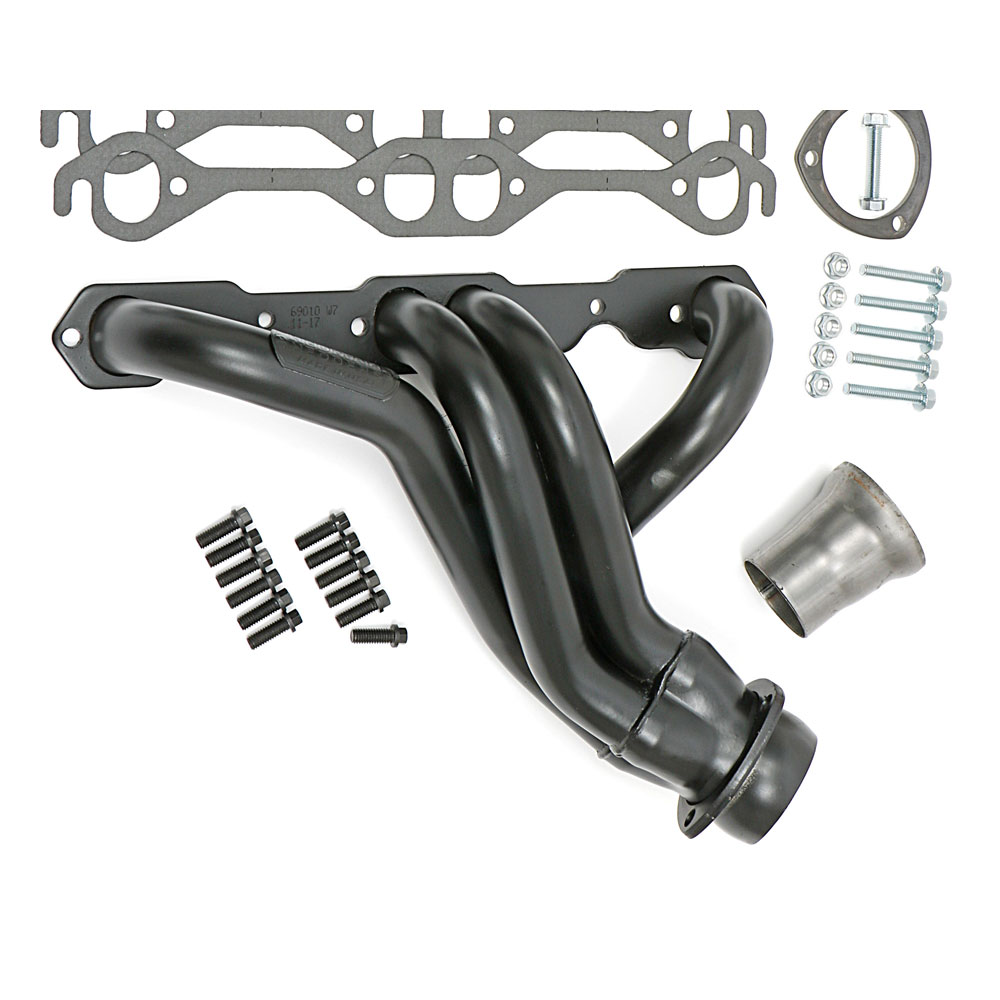

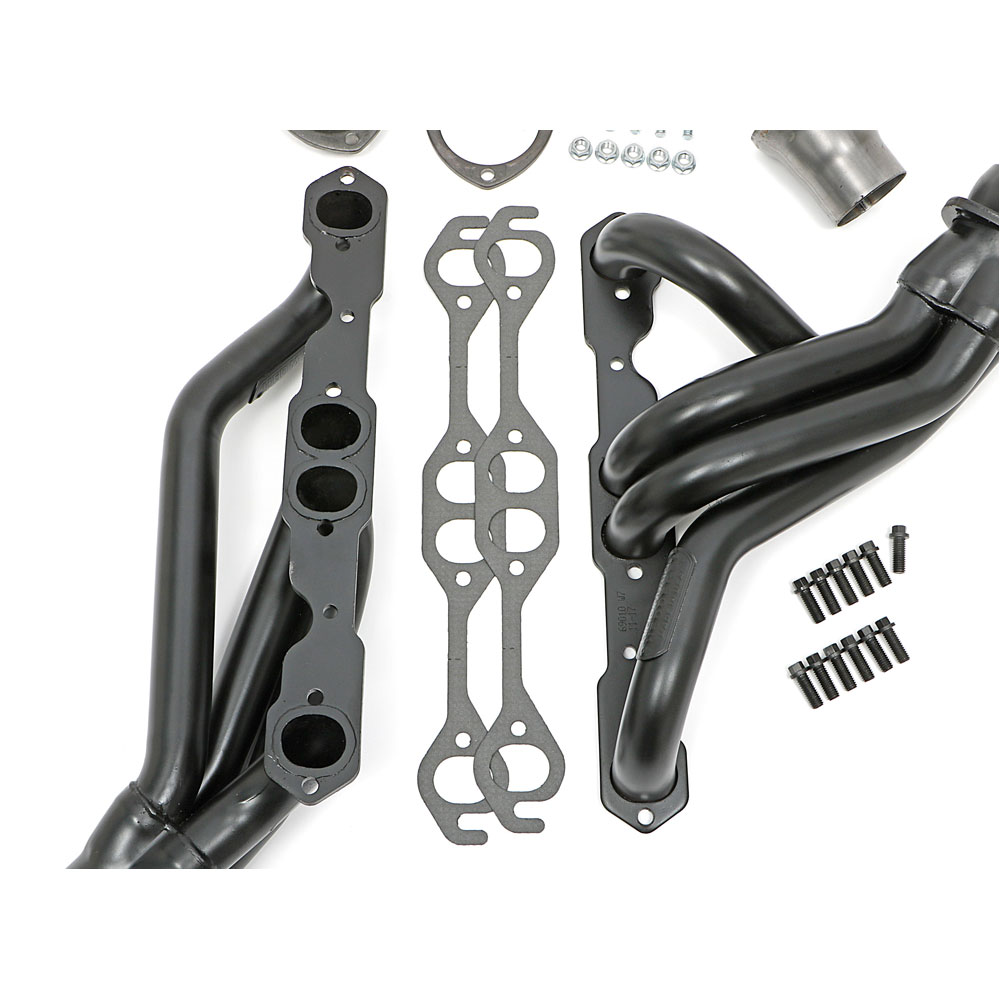

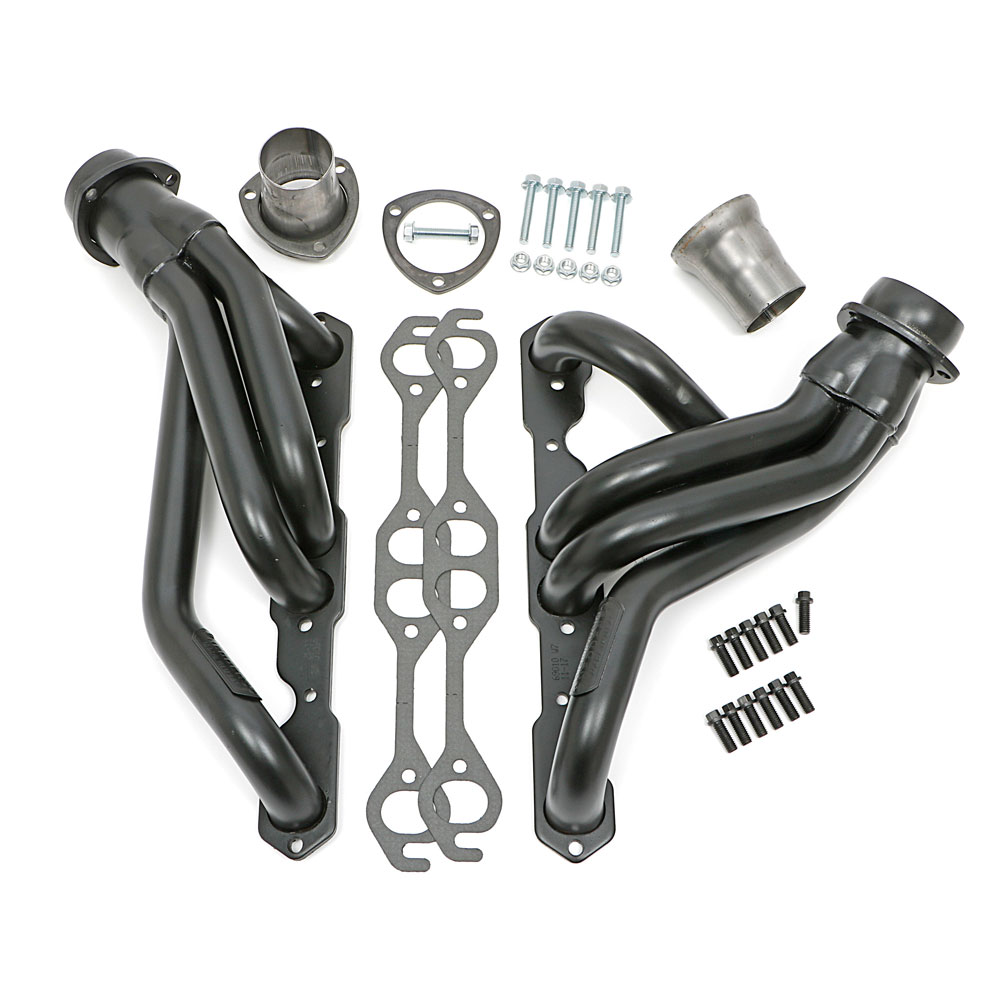

Hedman Hedders Exhaust Header 69010; 1.625 in. 3.000 in. Mid Length 16 Gauge Black Steel for 1967 to 1987 Chevy C10, C20 262 to 400 Automatic, Manual

$277.99

Part #: 69010

Brand: Hedman Hedders

UPC: 732611690102

Estimated Ship Date: Today

This item has a $35.92 oversized shipping charge.
See our shipping policy for more details.

Details

  • Handcrafted, Mild Steel Construction.
  • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Product Description

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy truck headers for nearly as long. Whether your cherished truck is powered by a Chevy small block, big block, or LS engine, Hedman Hedders manufactures as model for you in its Whittier, California manufactruring facility. This set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, MID-LENGTH tube headers fit 1967-1987 2WD, 1/2 ton and 3/4 ton Chevy and GMC trucks, Suburbans, and Blazers with a SB Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in tube design provides ample exhaust flow to let your C10/C20, C15/C25 truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. The MID-LENGTH design of these headers keeps the header connection up, tighter to the body, so you can keep your entire exhaust above the frame rails. These headers work with factory chassis, as well as, aftermarket front clips, like Porterbuilt.</p><p> These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>

Specifications

Year:
1967 to 1987
Make:
Chevy
Model:
C10, C20
Engine:
262 to 400
Transmission:
Automatic, Manual
Header Style:
Mid Length
Header Material:
Steel
Header Finish:
Black
Primary Tube Diameter (in):
1.625 in.
Collector Attachment:
3 Bolt Ball and Socket
Collector Diameter:
3.000 in.
Primary Tube Gauge:
16 Gauge
Flange Thickness (in):
0.375 in.
Includes Bolts/Studs:
Yes
Includes Gaskets:
Yes
Includes Reducers:
Yes
Includes O2 Sensor Port:
No
Port Shape:
Oval
Includes Y-Pipe:
No
Quantity:
Sold As Pair
