Hedman Hedders Exhaust Header 68230; Long Tube Headers 1.625 in. 3.000 in. Long Tube 16 Gauge Black Paint (Temporary) Steel for 1958 to 1964 Chevy Biscayne, Impala 262 to 400

$301.93

Part #: 68230

Brand: Hedman Hedders

UPC: 732611682305

Estimated Ship Date: Today

This item has a $77.30 oversized shipping charge.
See our shipping policy for more details.

Details

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

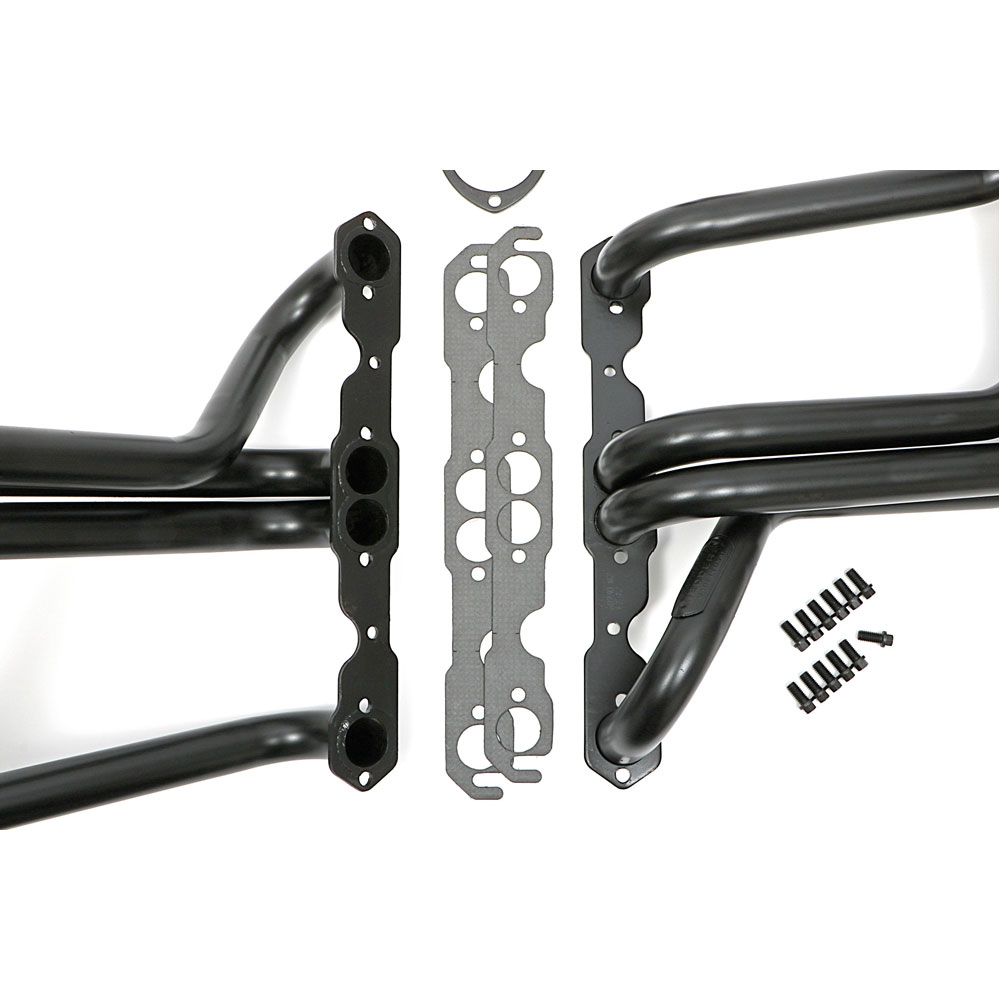

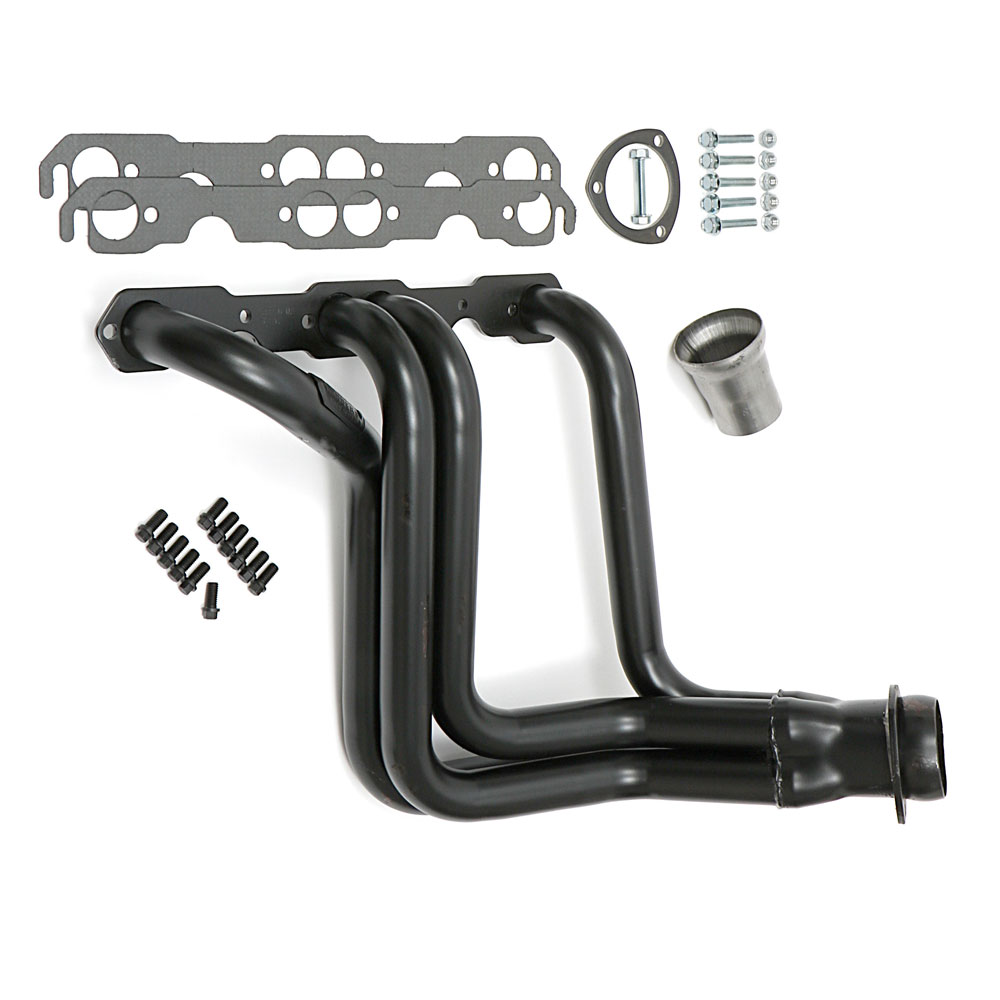

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Product Description

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These LONG-TUBE headers fit GM's 1958-1964 X-Frame vehicles equipped with a SB Chevy (Gen 1) engine. This includes extremely popular models, such as, Impala, Bel Air, El Camino and Biscayne. The smooth 1-5/8 in tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>

Specifications

Exhaust Header Model or Series:
Long Tube Headers
Year:
1958 to 1964
Make:
Chevy
Model:
Biscayne, Impala
Engine:
262 to 400
Header Style:
Long Tube
Header Material:
Steel
Header Finish:
Black Paint (Temporary)
Primary Tube Diameter (in):
1.625 in.
Collector Attachment:
Ball and Socket
Collector Diameter:
3.000 in.
Primary Tube Gauge:
16 Gauge
Flange Thickness (in):
5/16 in.
Includes Bolts/Studs:
Yes
Includes Gaskets:
Yes
Includes Reducers:
Yes
Includes O2 Sensor Port:
No
Includes Y-Pipe:
No
Quantity:
Sold As Set

Tech Resources

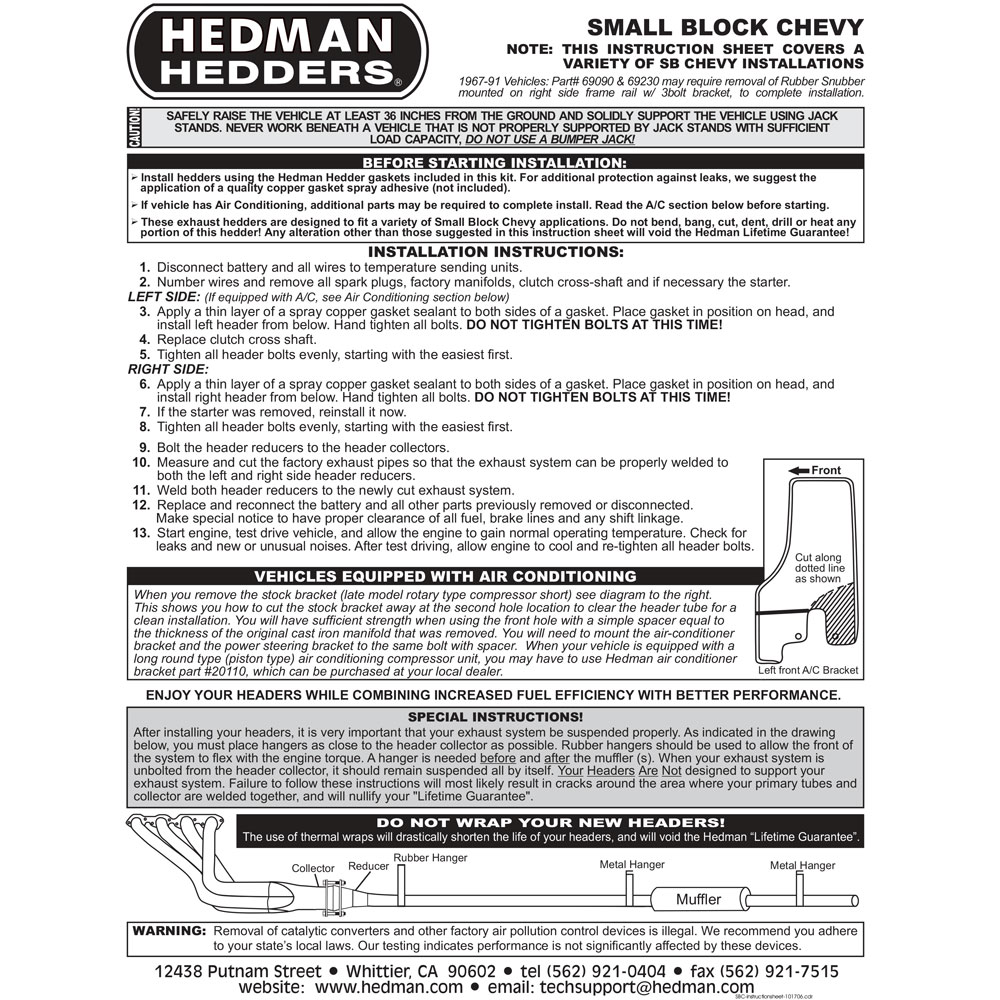

  • 68230.pdf

  • HPGroup-Linecard1117.pdf
