Hedman Hedders Exhaust Header 68196; Long Tube Ceramic Coated 1.750 in. 3.000 in. Long Tube 18 Gauge Ceramic Coated Mild Steel for 1965 to 1975 Chevy Camaro, Chevelle, Nova, Passenger 396 to 454

$629.52

Part #: 68196

Brand: Hedman Hedders

UPC: 732611681964

Estimated Ship Date: 5/28/2025 (From manufacturer)

This item has a $65.13 oversized shipping charge.
See our shipping policy for more details.

Details

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

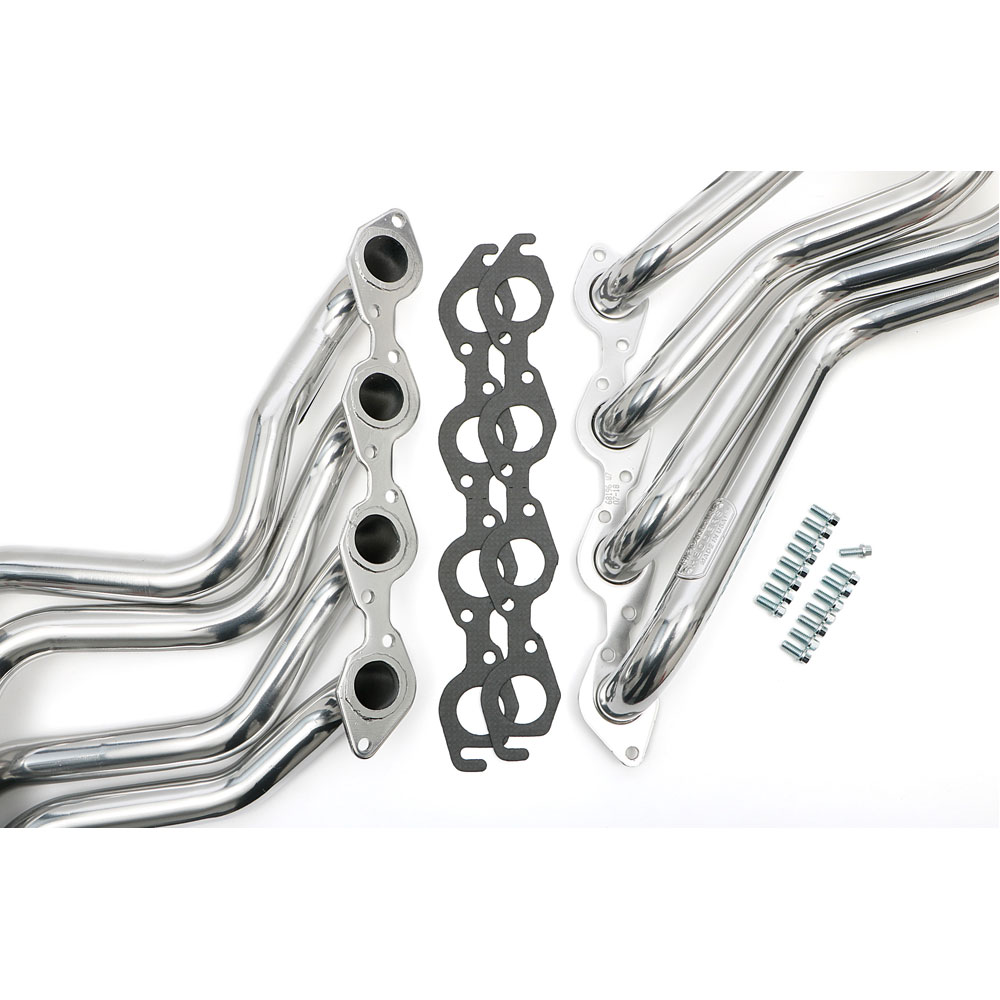

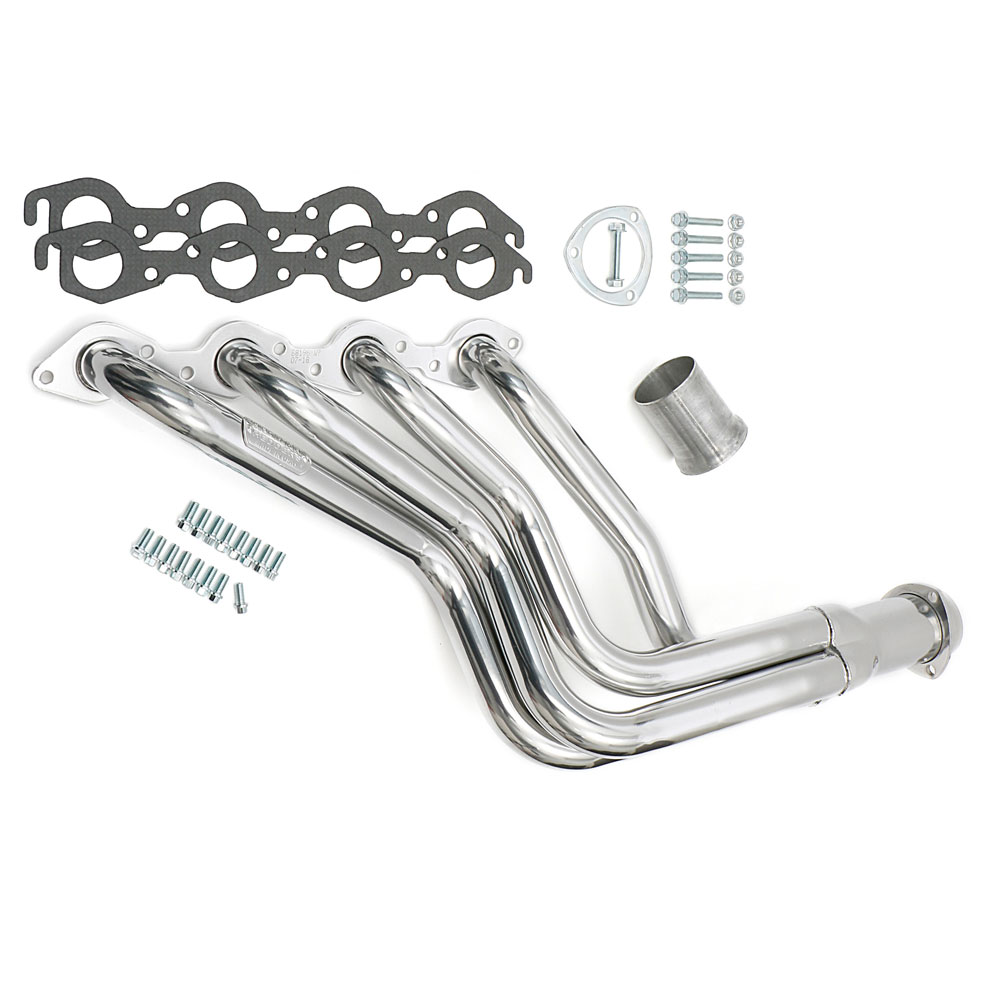

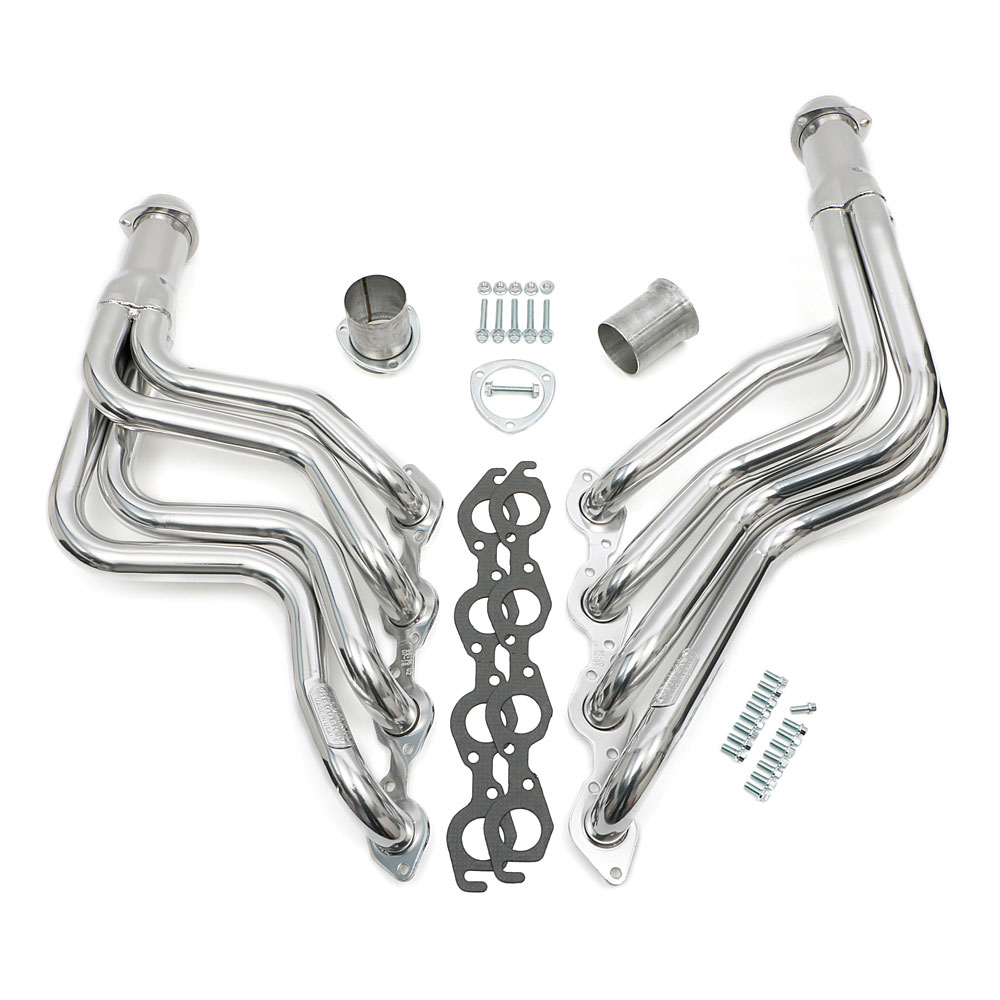

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Product Description

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These LONG-TUBE headers fit a variety of BB Chevy (396-454) powered 1967-77 Chevy passenger cars. Model like, 1967-69 Camaros, 64-77 Chevelles and El Caminos, 68-74 Novas, and 1965-70 Bel Air, Impala and Biscayne models. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 Chevy engine breathe easy, and produce maximum horsepower and torque.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

Specifications

Exhaust Header Model or Series:
Long Tube Ceramic Coated
Year:
1965 to 1975
Make:
Chevy
Model:
Camaro, Chevelle, Nova, Passenger
Engine:
396 to 454
Header Style:
Long Tube
Header Material:
Mild Steel
Header Finish:
Ceramic Coated
Primary Tube Diameter (in):
1.750 in.
Collector Attachment:
Ball and Socket
Collector Diameter:
3.000 in.
Primary Tube Gauge:
18 Gauge
Flange Thickness (in):
1/4 in.
Includes Bolts/Studs:
Yes
Includes Gaskets:
Yes
Includes Reducers:
Yes
Includes O2 Sensor Port:
No
Includes Y-Pipe:
No
Quantity:
Sold As Set
