Hamburger’s Performance Oil Pan 1488; Drag Race Wet Sump 8 Quart Red for 1965 to 1990 Chevy 396 to 454
$367.86
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Ideal For Performance Engine Use

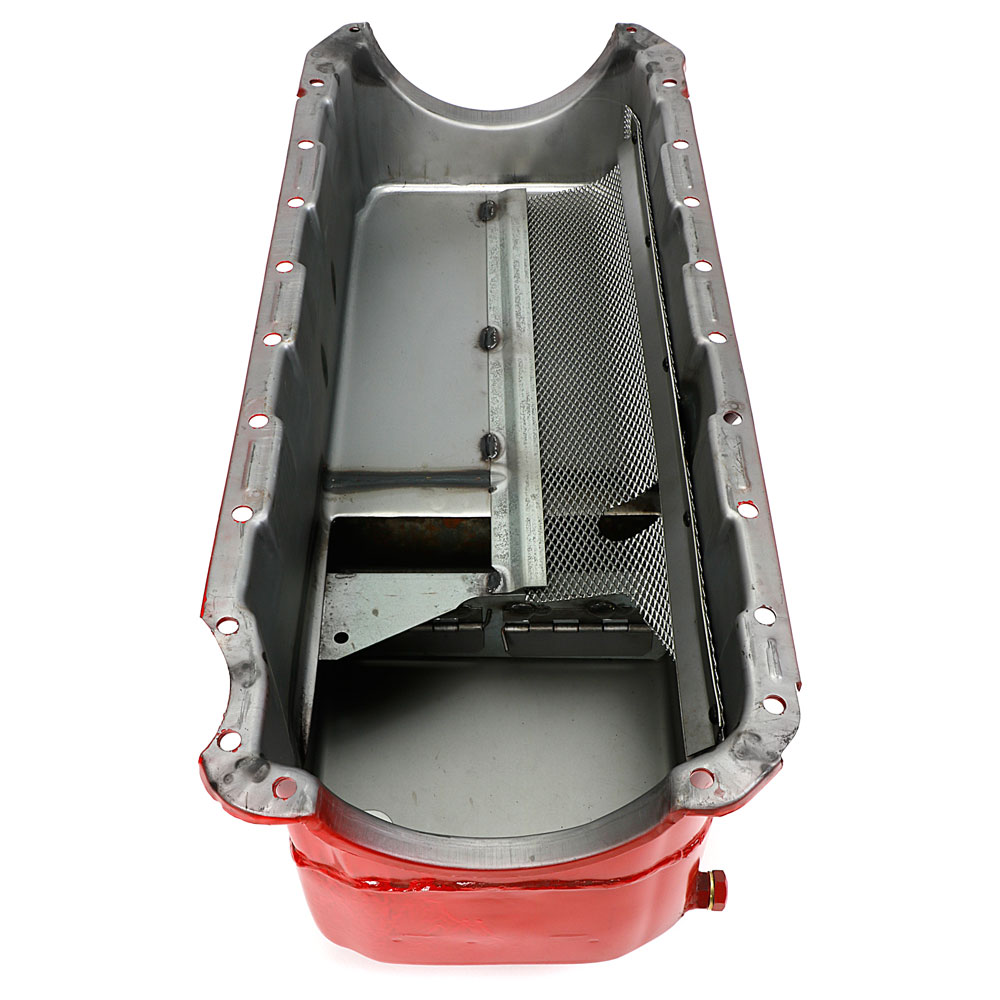

- Equipped With Crankshaft Scraper And Windage Screen
- Wet Sump Design
- Durable Steel Construction

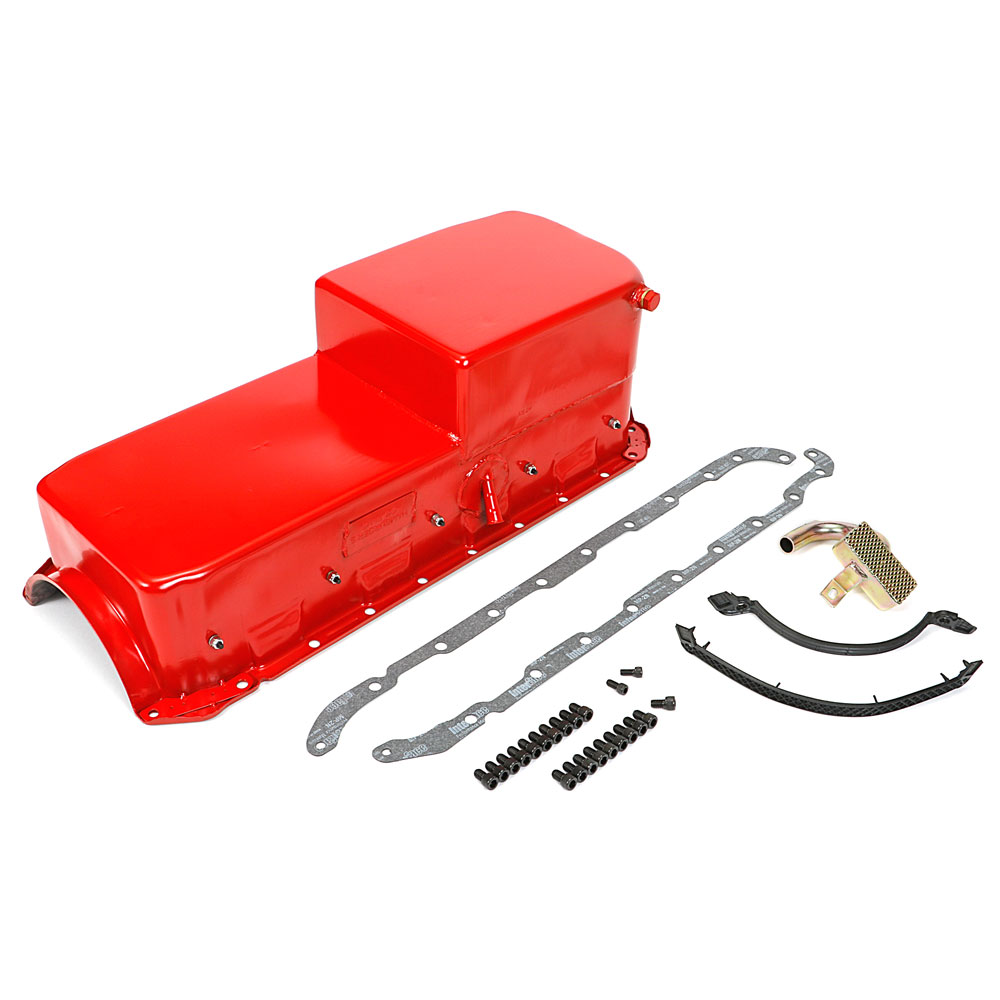

- Includes Gasket, Bolts, Drainplug and Special Pick-Up Tube
Product Description
Econo Series Pans are made from a .055 inch steel core. Increased oil capacity to improve bearing life and engine durability. SBC Pans have notched rails that take up to a 4.000 inch Stroke Crankshaft. BB Chevy Pans accept up to a 4.500 inch Stroke. Integreated directional windage screen and crankshaft scraper for max oil control & horsepower. All Pans listed include pan, magnetic drain plug, oil pickup and oil pan gasket.
Specifications
- Engine Oil Pan Model or Series:
- Drag Race
- Year:
- 1965 to 1990
- Make:
- Chevy
- Engine:
- 396 to 454
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Passenger Side
- Capacity:
- 8 Quart
- Depth:
- 8.000 in.
- Material:
- Steel
- Finish:
- Red
- Kick Out:
- None
- Sump Location:
- Rear
- Baffled:
- Yes
- Includes Pickup:
- Yes
- Standard Pickup Part Number:
- HAM2568
- Includes Windage Tray:
- Yes
- Includes Crank Scraper:
- Yes
- Includes Gasket:
- Yes
- Quantity:
- Sold As Each
