Hamburger Oil Pan 1099; Drag Race Wet Sump 7 Quart Red for 1982 to 2004 Chevy S10 262 to 400
$335.68
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

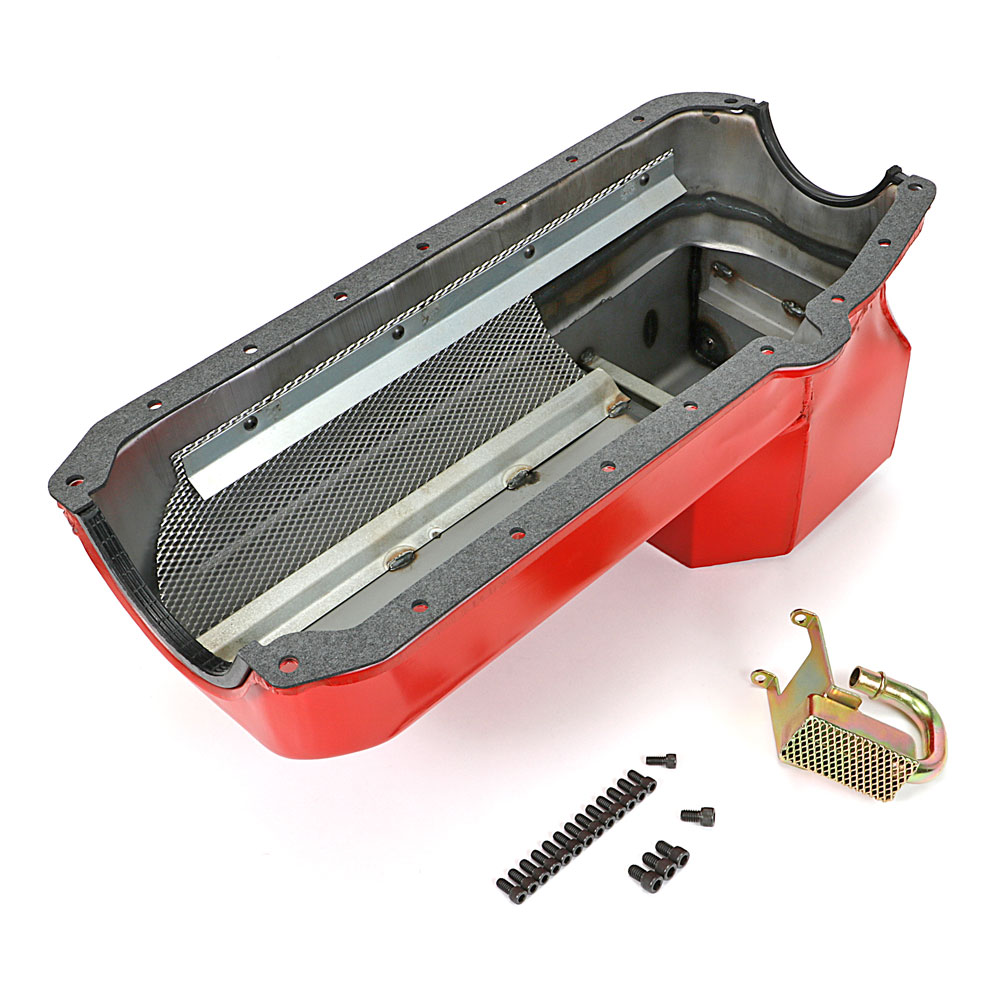

- Designed Especially For Installing A V8 Engine In S10/S15 Trucks And Blazers
- Geared To Hi-Performance Engine Use
- Durable Steel Construction

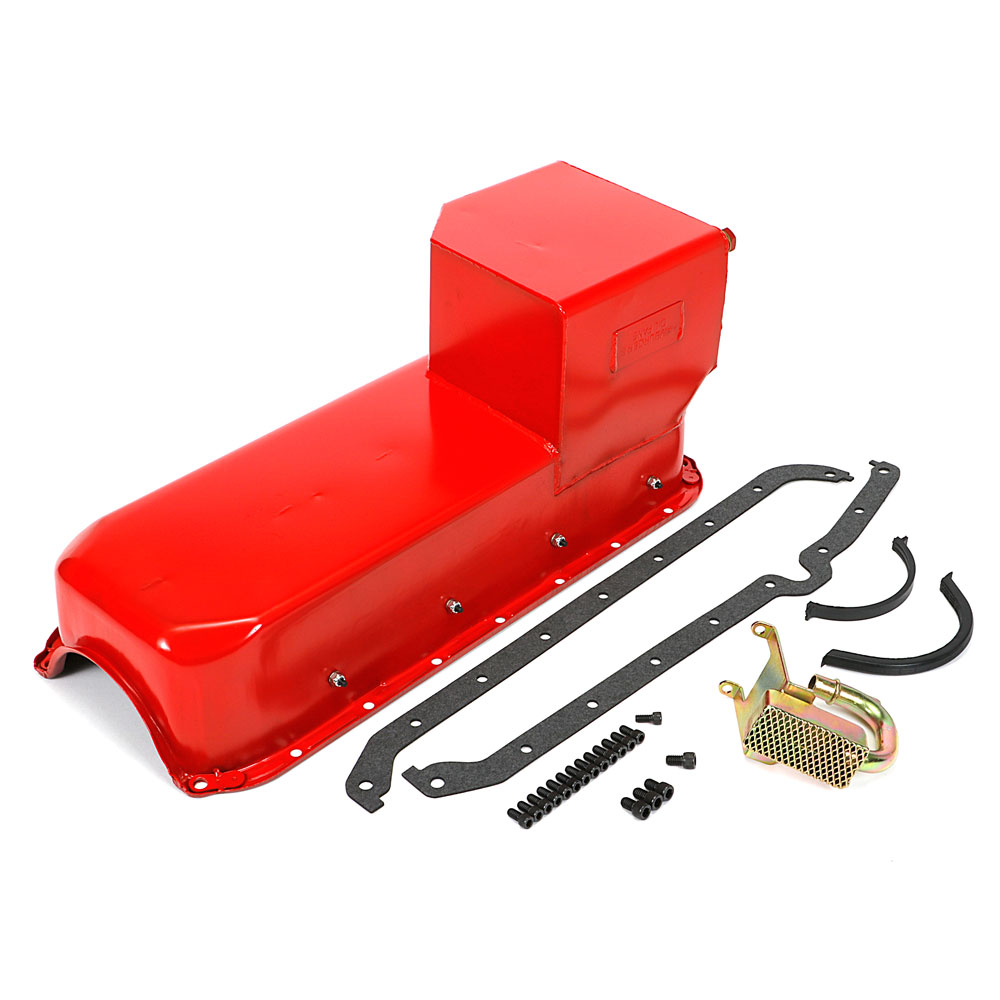

- Includes Gasket, Bolts, Drainplug and Special Pick-Up Tube
- Equipped With Crankshaft Scraper And Windage Screen
Product Description
Constructed from extra heavy .055inch thick steel core. Increased oil capacity to improve bearing life and engine durability. SB Chevy pans have notched rails that take up to a 4.000" Stroke Crankshaft. Integrated directional windage screen and crankshaft scraper for max oil control & horsepower. All pans include pan, magnetic drain plug, oil pickup and oil pan gasket.
Specifications
- Oil Pan Series:
- Drag Race
- Year:
- 1982 to 2004
- Make:
- Chevy
- Model:
- S10
- Engine:
- 262 to 400
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Driver Side
- Capacity:
- 7 Quart
- Depth:
- 9.250 in.
- Material:
- Steel
- Finish:
- Red
- Kick Out:
- None
- Sump Location:
- Rear
- Baffled:
- Yes
- Includes Pickup:
- Yes
- Standard Pickup Part Number:
- HAM2509
- Includes Windage Tray:
- Yes
- Includes Crank Scraper:
- Yes
- Includes Gasket:
- Yes
- Quantity:
- Sold As Each
