Flo-Tek Cylinder Head Bare 290-500; 290.00 cc Aluminum 112 cc for Chevy 396 to 454
$719.99
$799.00 On Sale
Save 10%
See our shipping policy for more details.
Product Description
FLOTEK’s medium sized 290cc oval port cylinder head with 112 combustion chamber is recommended for moderate street or street/strip big block Chevys with displacements up to 509 cubic inches, operating at or below 6500 RPM. Capable of flowing 367 CFM at 0.600″ of lift; tested on Super Flow Bench 1020. It may be necessary to slightly clearance or modify the the piston due to our more efficient heart shaped combustion chamber design with some domed aftermarket pistons, most of the newer designed dome profiles will clear.

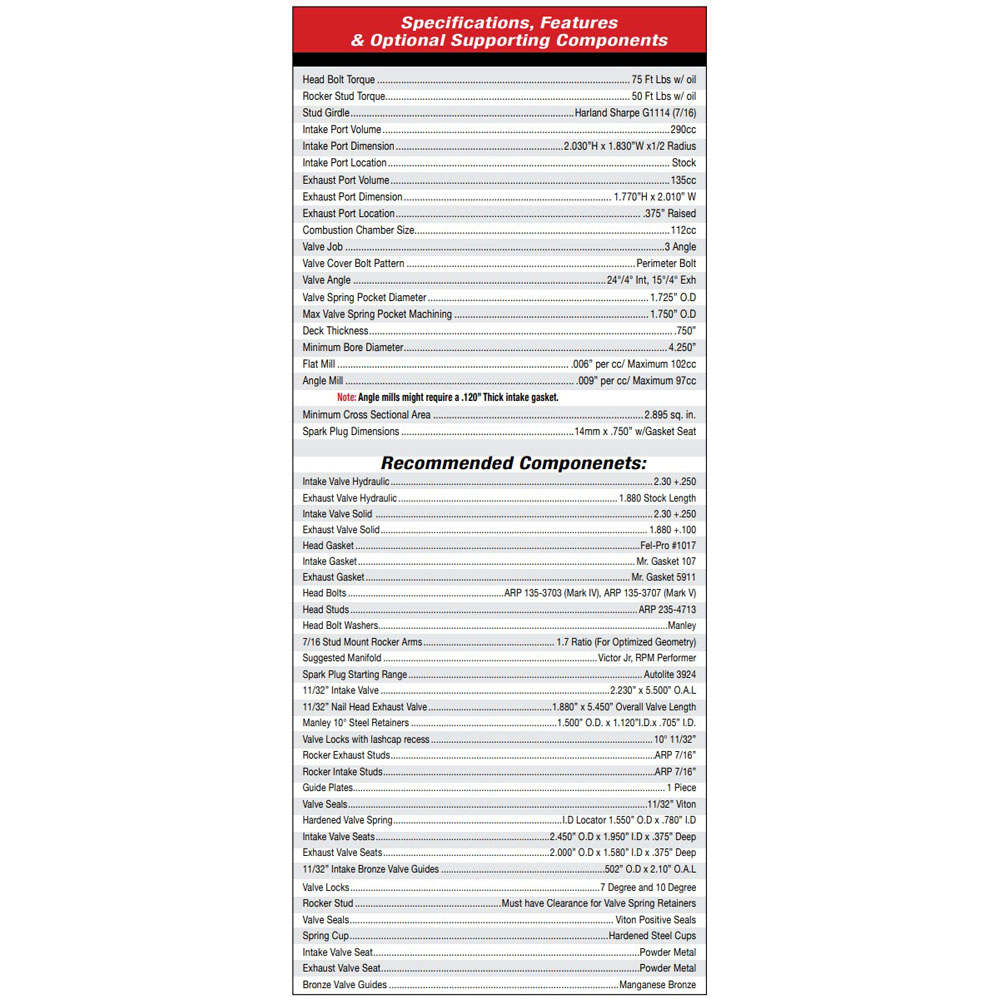

Specifications
- Make:
- Chevy
- Engine:
- 396 to 454
- Material:
- Aluminum
- Combustion Chambers:
- 112 cc
- Intake Valve Diameter:
- 2.300 in.
- Exhaust Valve Diameter:
- 1.880 in.
- Intake Runners:
- 290.00 cc
- Exhaust Runners:
- 135.00 cc
- Port Style:
- Oval
- Includes Accessory Mounting Bolt Holes:
- Yes
- Intake Runner Porting:
- None
- Exhaust Runner Porting:
- None
- Combustion Chamber Porting:
- None
- Valve Cover Mounting Style:
- Perimeter Bolt
- Quantity:
- Sold As Each
