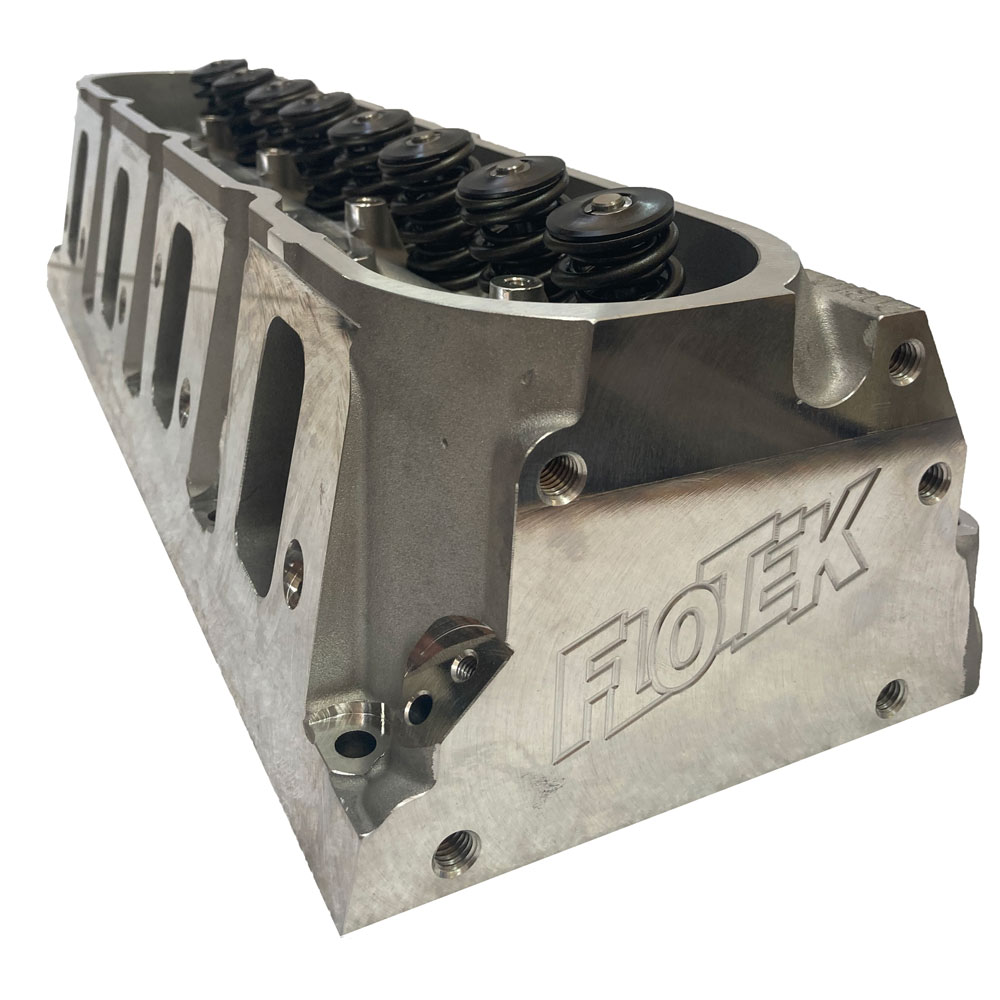

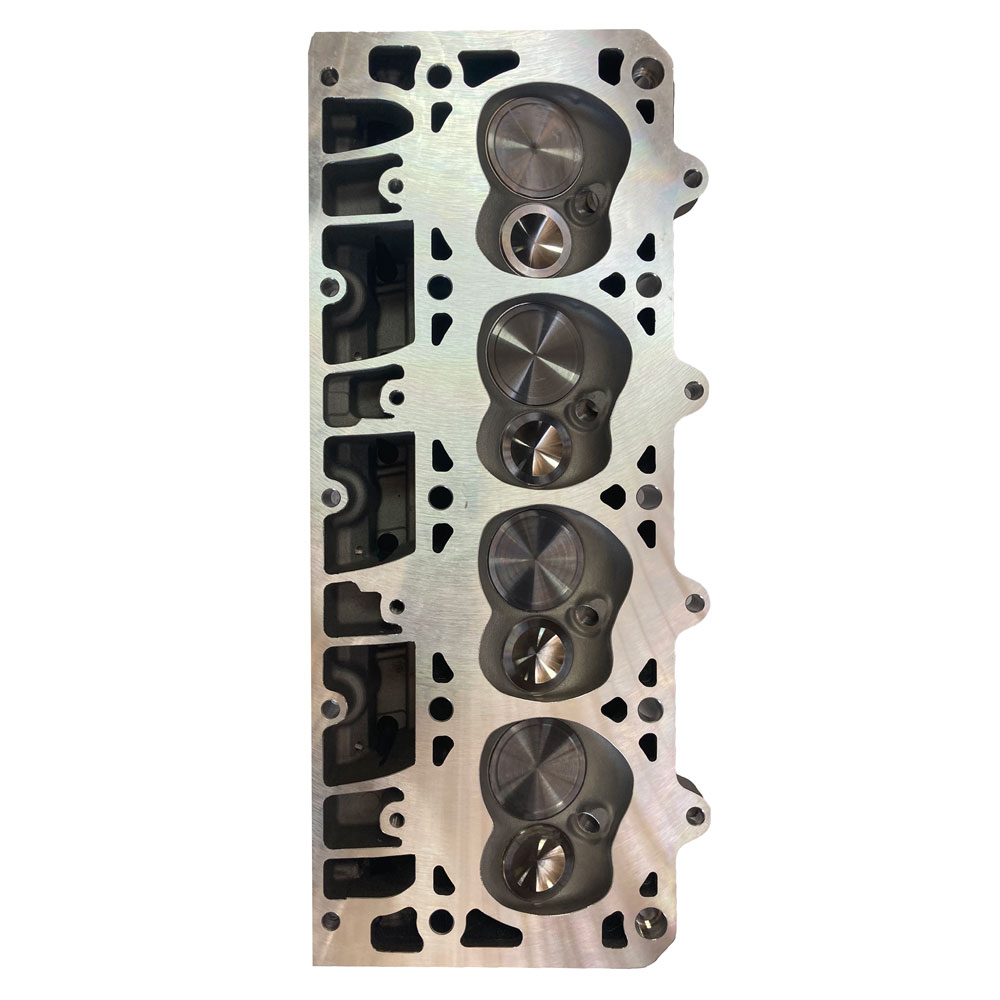

Flo-Tek Cylinder Head Assembly LS3-505; 276.00 cc Aluminum 68 cc for Chevy LS3

$705.00

Part #: LS3-505

Brand: Flo-Tek

Estimated Ship Date: Today

This item has a $48.66 oversized shipping charge.
See our shipping policy for more details.

Product Description

The new FLOTEK LS3 head features as-cast high flow intake runners that flow significantly better than the stock LS3 heads. In back to back testing at .650 lift, the FLOTEK LS3 flow tested 44 CFM better than the stock LS3 heads. The FLOTEK LS3 has a 276cc intake runner, 92cc exhaust runner, and 68cc combustion chamber. The ports are in the stock location so no special valve train parts or rocker arms are required. The heads are a 15 degree, which is the same as the stock cylinder heads so no special pistons are required. The FLOTEK LS3 will work on any LS block that has a 4.000" bore or bigger. These heads combine high performance and high quality at a value price.

Specifications

Make:
Chevy
Engine:
LS3
Material:
Aluminum
Combustion Chambers:
68 cc
Intake Valve Diameter:
2.160 in.
Exhaust Valve Diameter:
1.590 in.
Intake Runners:
276.00 cc
Exhaust Runners:
92.00 cc
Port Style:
Rectangular
Cam Type Recommended:
Hydraulic Roller
Max Valve Lift:
0.625 in.
Valve Spring OD:
1.290 in.
Closed Spring Pressure:
142 lbs. @ 1.800 in.
Open Spring Pressure:
385 lbs. @ 1.150 in.
Spring Rate:
374 lbs/in.
Coil Bind:
1.030 in.
Valve Spring Retainer Material:
Chromoly
Quantity:
Sold As Each
