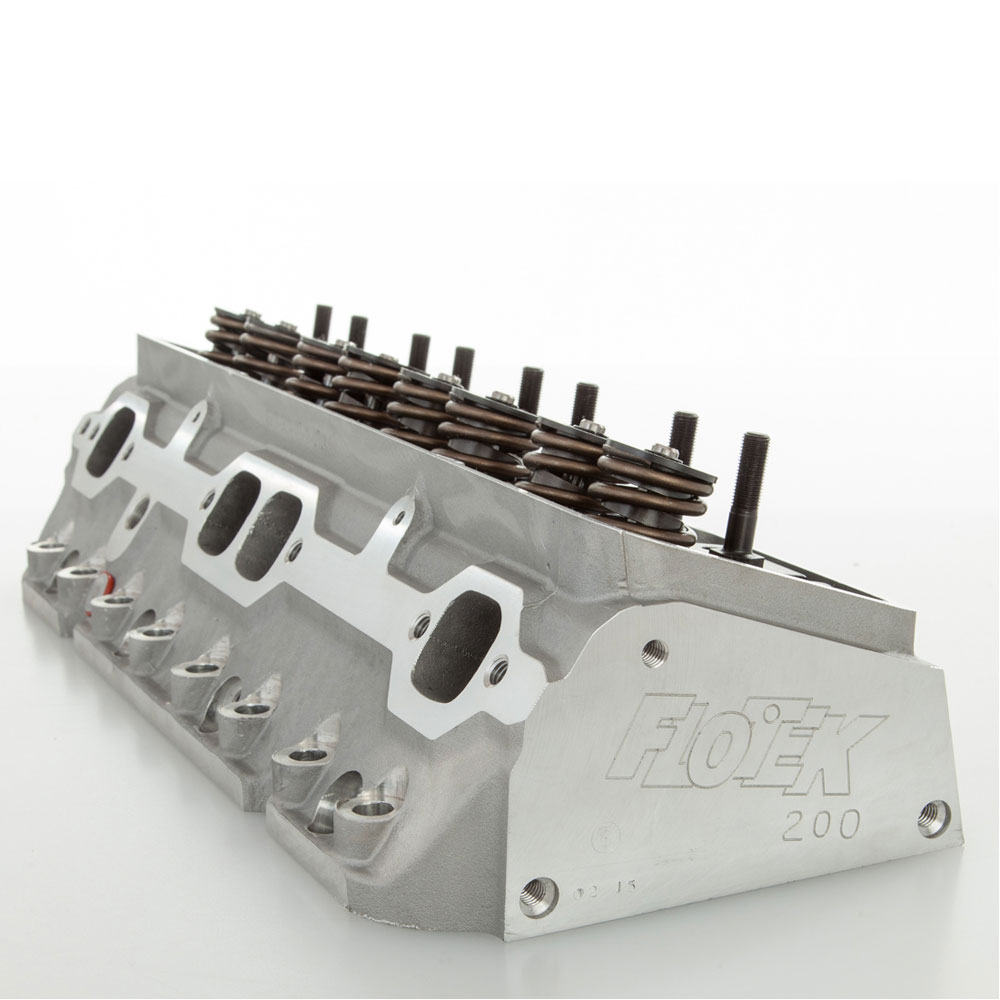

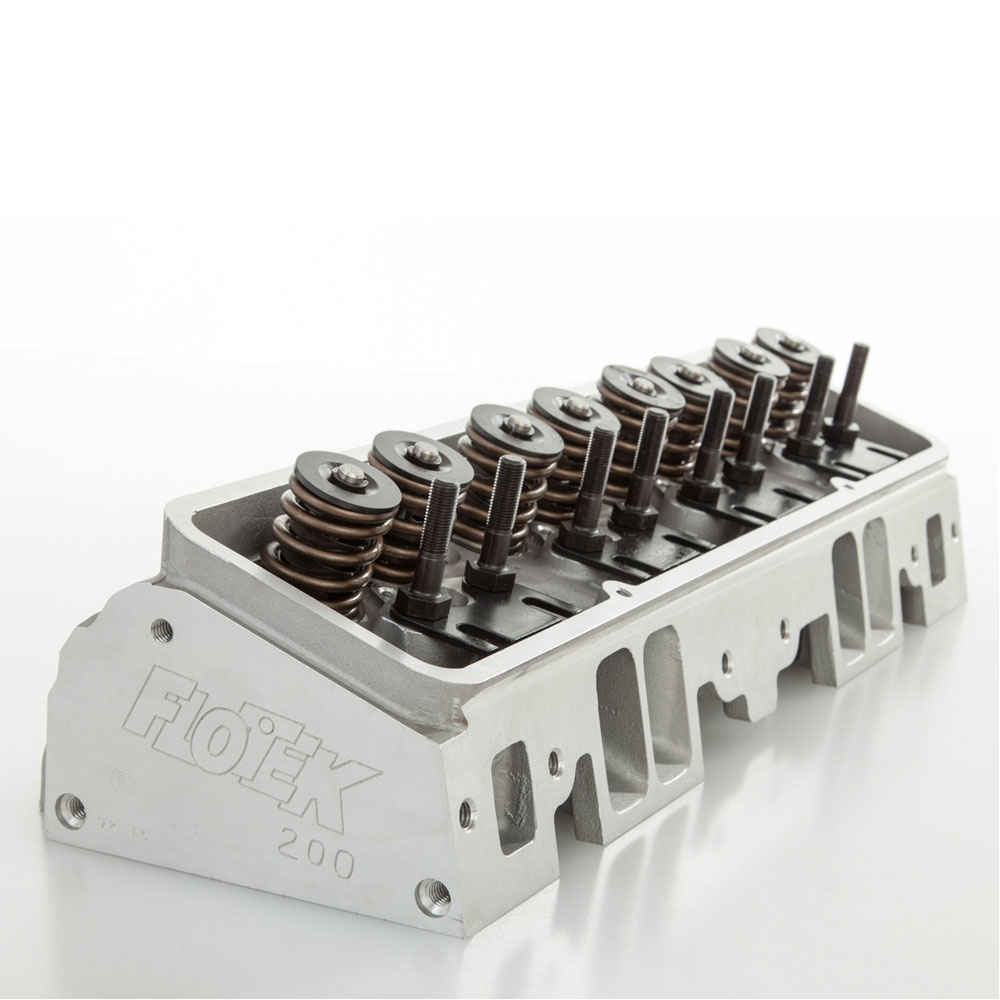

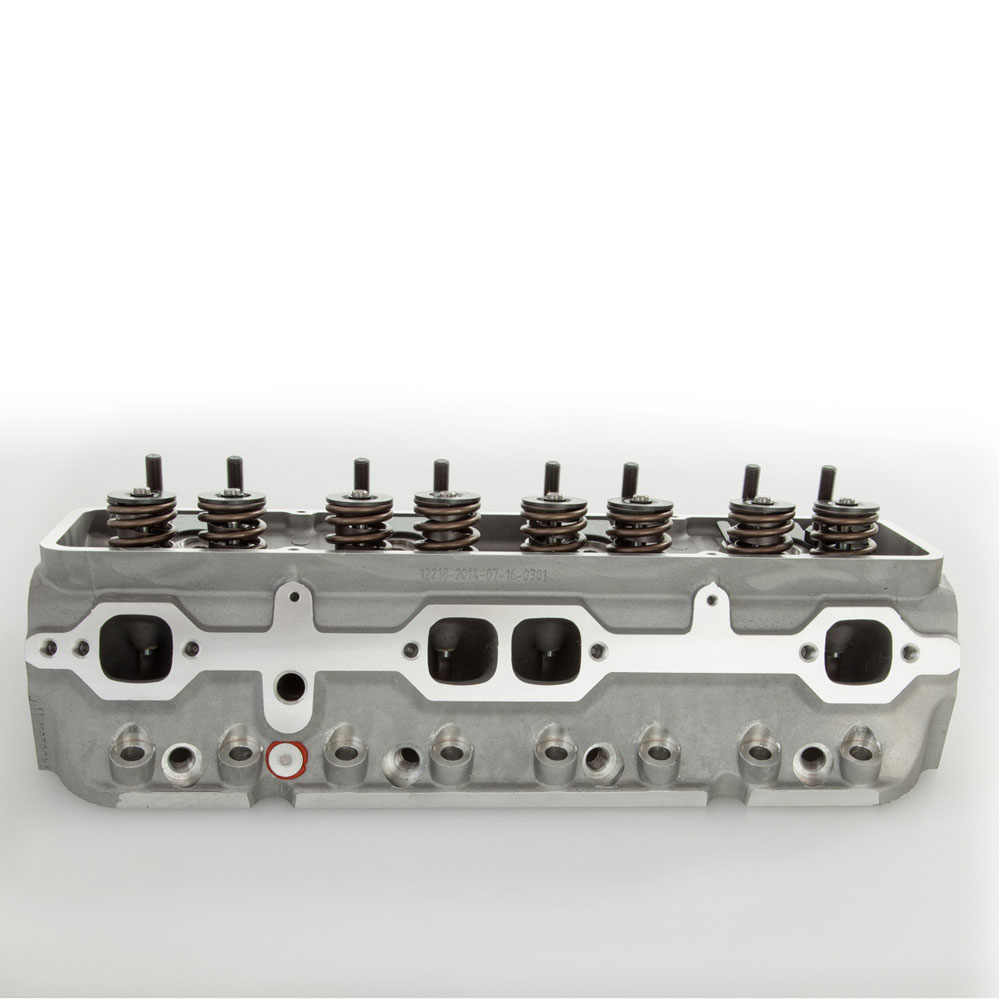

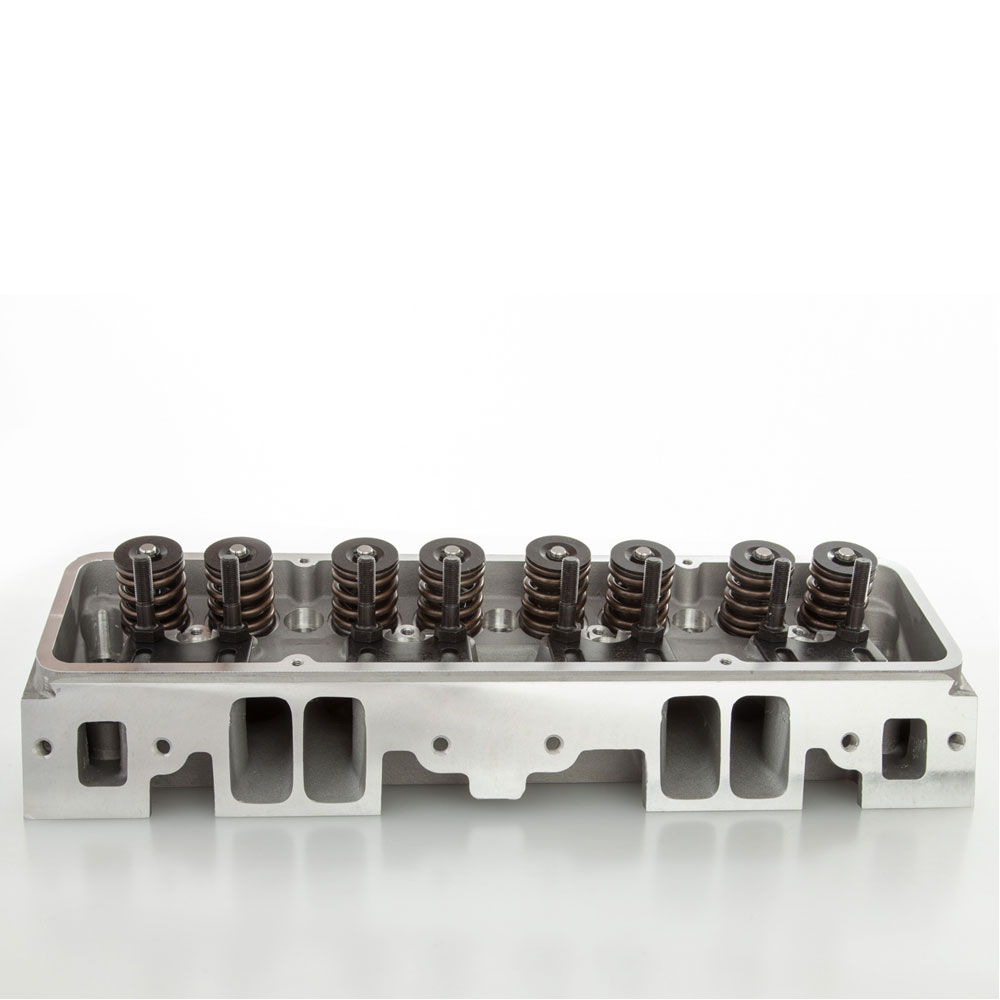

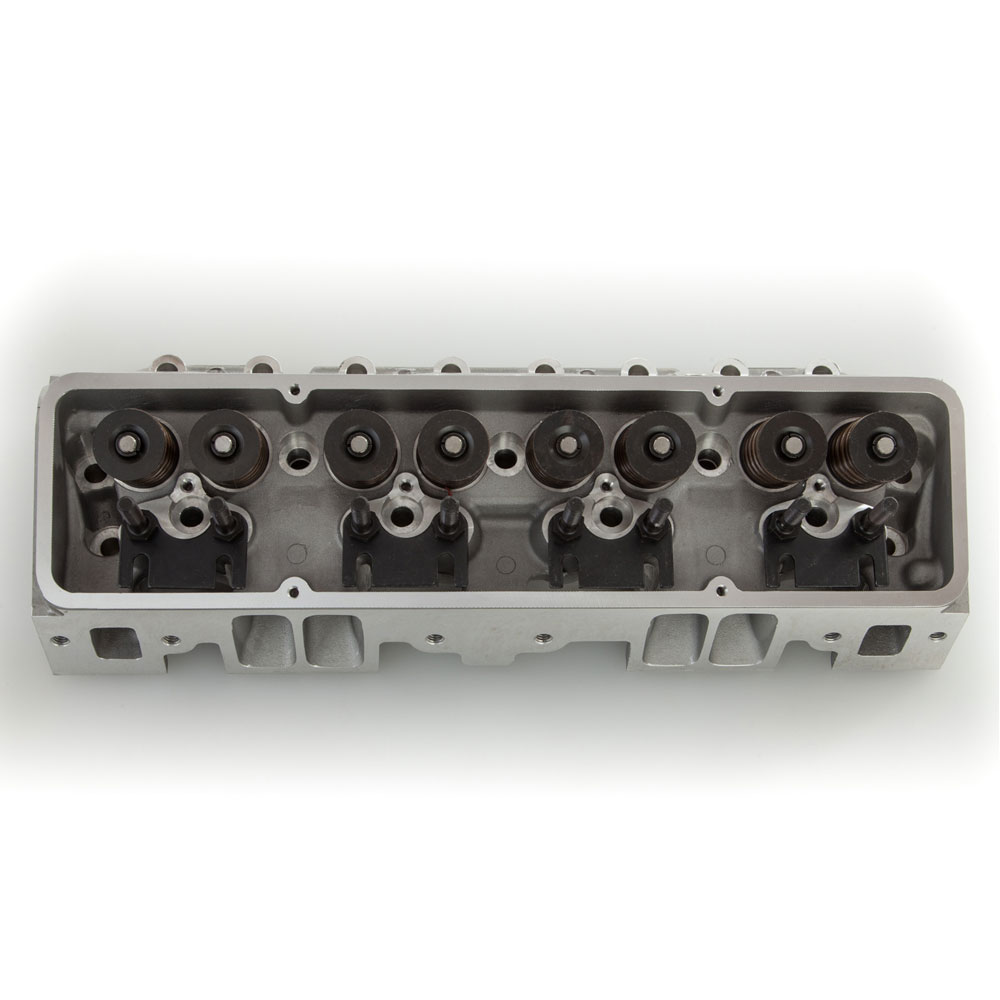

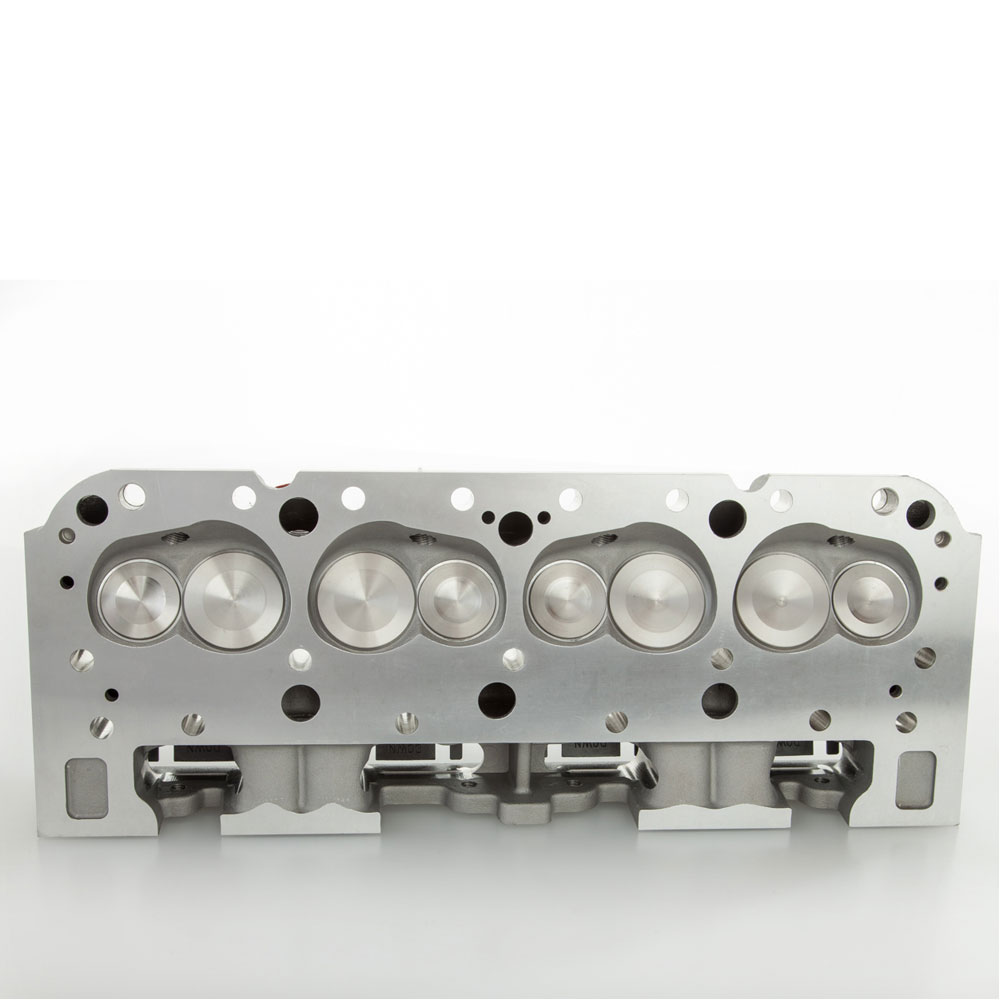

Flo-Tek Cylinder Head Assembly 1200-HRSB-505S; Street Build 200.00 cc Aluminum 64 cc for Chevy 262 to 400
$464.00
This item has a $44.45 oversized shipping charge.
See our shipping policy for more details.
Product Description
FLO-TEK'S small block 200cc As Cast ported chamber cylinder head, designed by Jones Engineering, with 23 degree runners make impressive horsepower-power ideal for street-strip ready. Right out of the box, these heads deliver exceptional flow numbers. The features for the FLOTEK 200cc include state of the art casting, versatile 200 cc intake ports that are specifically designed for outstanding versatility, 64 cc combustion chamber. These are the most affordable high quality aluminum cylinder heads on the market. The FLOTEK Performance Cylinder Heads series are a line of heads designed by Tri-State Cylinder Head for maximum out-of-the-box horsepower. Standard features are aluminum alloy, phosphorous bronze valve guides, high nickel valve seats, ends milled and drilled for accessories, offered in solid or hydraulic. Great for 383, 350, or 400 Stroker. FLO-TEK inspects each shipment of aluminum heads offered in Straight or Angle assuring the customer that they are receiving the best products for the money. 100 percent assembled in the USA!
Specifications
- Cylinder Head Assembly Series:
- Street Build
- Make:
- Chevy
- Engine:
- 262 to 400
- Material:
- Aluminum
- Combustion Chambers:
- 64 cc
- Intake Valve Diameter:
- 2.020 in.
- Exhaust Valve Diameter:
- 1.600 in.
- Spark Plug Angle:
- Straight
- Intake Runners:
- 200.00 cc
- Exhaust Runners:
- 78.00 cc
- Port Style:
- Rectangular
- Cam Type Recommended:
- Hydraulic Roller
- Max Valve Lift:
- 0.550 in.
- Valve Spring OD:
- 1.460 in.
- Closed Spring Pressure:
- 130 lbs. @ 1.750 in.
- Open Spring Pressure:
- 310 lbs. @ 1.200 in.
- Spring Rate:
- 327.3 lbs/in.
- Coil Bind:
- 1.160 in.
- Valve Spring Retainer Material:
- Chromoly
- Quantity:
- Sold As Each
