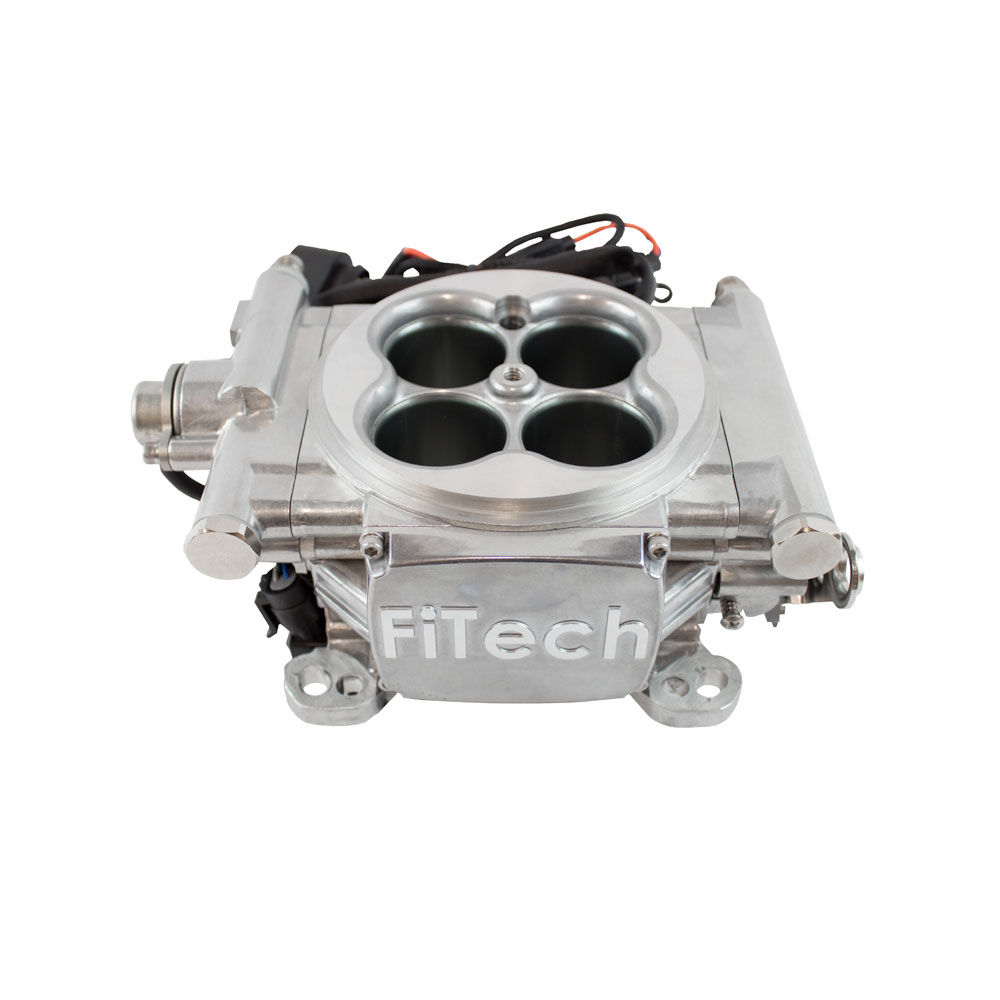

FiTech Fuel Injection System Kit 31001; Go EFI 4 and Inline Pump 650 HP Throttle Body Satin Die Cast Aluminum
$1,145.69
Part #: 31001
Brand: FiTech
UPC: 854549007002
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 1 BAR internal MAP sensor
- Suitable for up to 650hp
- (4) Flow matched injectors
- (1) Fan control
- Built-in pressure regulator
- Bright aluminum finish
- Built-in pressure regulator
- Bright aluminum finish
Product Description
The Go EFI 4 with bright aluminum finish combined with the Inline Fuel Pump Fuel Delivery Kit is rated at 600HP but is suitable for engines from 200HP thru 650HP. This self-tuning fuel injection system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the fastest most accurate self-learning available, timing control, wet flow annular discharge and tons of additional features.It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.The Redhorse Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 280 L/PH inline external fuel pump that is suitable for engines making up to 900HP (Note that some EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 20-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 100-micron pre-filter and a 40-micron post filter. High pressure EFI grade hose and the hose ends are push lock style for easy assembly.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Fuel Injection System Kit Series:
- Go EFI 4 and Inline Pump
- Injection Style:
- Throttle Body
- Supported Horsepower:
- 650 HP
- Includes Intake Manifold:
- No
- Intake Manifold Finish:
- Bright Anodized
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- 4150 Square Bore, 4500 Dominator
- Throttle Body Material:
- Die Cast Aluminum
- Throttle Body Finish:
- Satin
- Number of Injectors Included:
- 4 Bolt
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- Yes
- Includes Fuel Pressure Regulator:
- Yes
- Sensors Included:
- Wide band O2 Sensor, Coolant Temp Sensor, Throttle Position Sensor, MAP Sensor
- Notes:
- Includes 30001 Satin Go-EFI 4 fuel injection system, and 50001 inline fuel pump kit
- Quantity:
- Sold As Kit
