FiTech Fuel Injection System 70013; Ultimate LS 752 HP Port Injection 1000 CFM Black Anodized Billet Aluminum for Chevy LS3, L92
$1,799.77
$2,107.00 On Sale
Save 15%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details

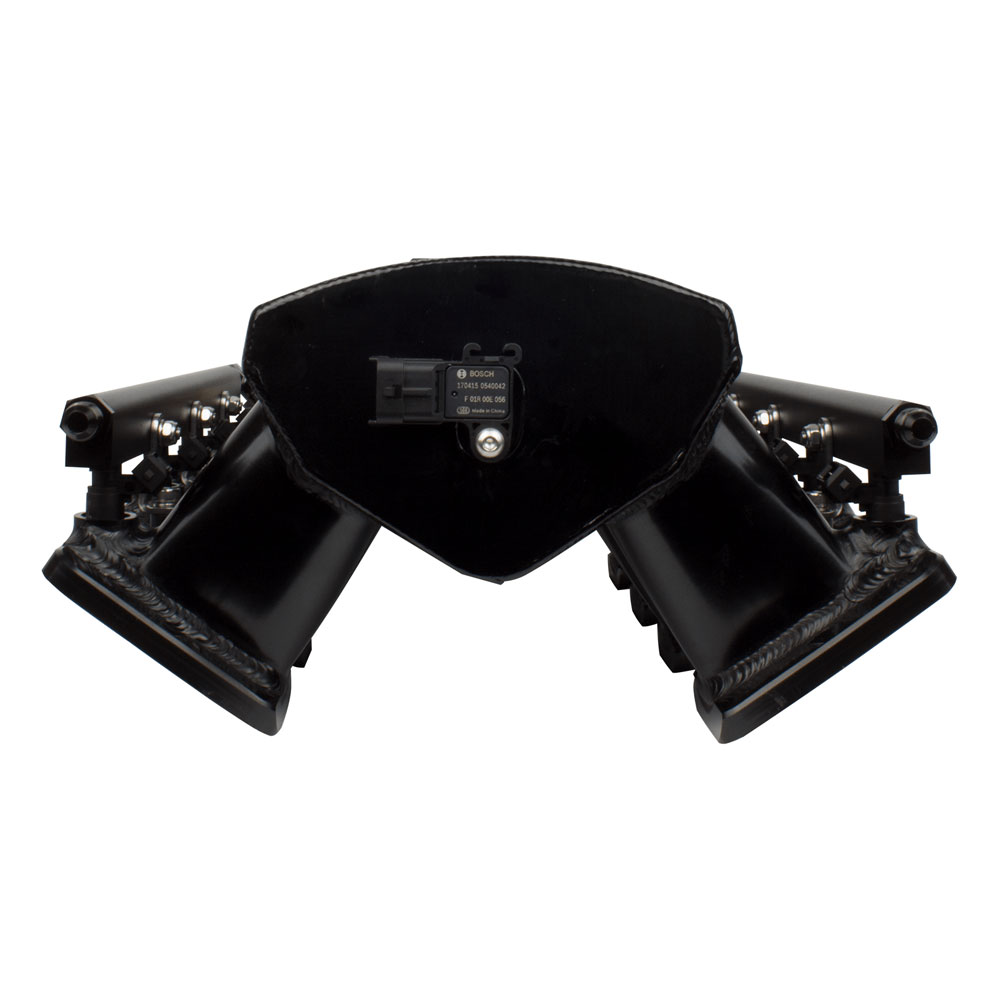

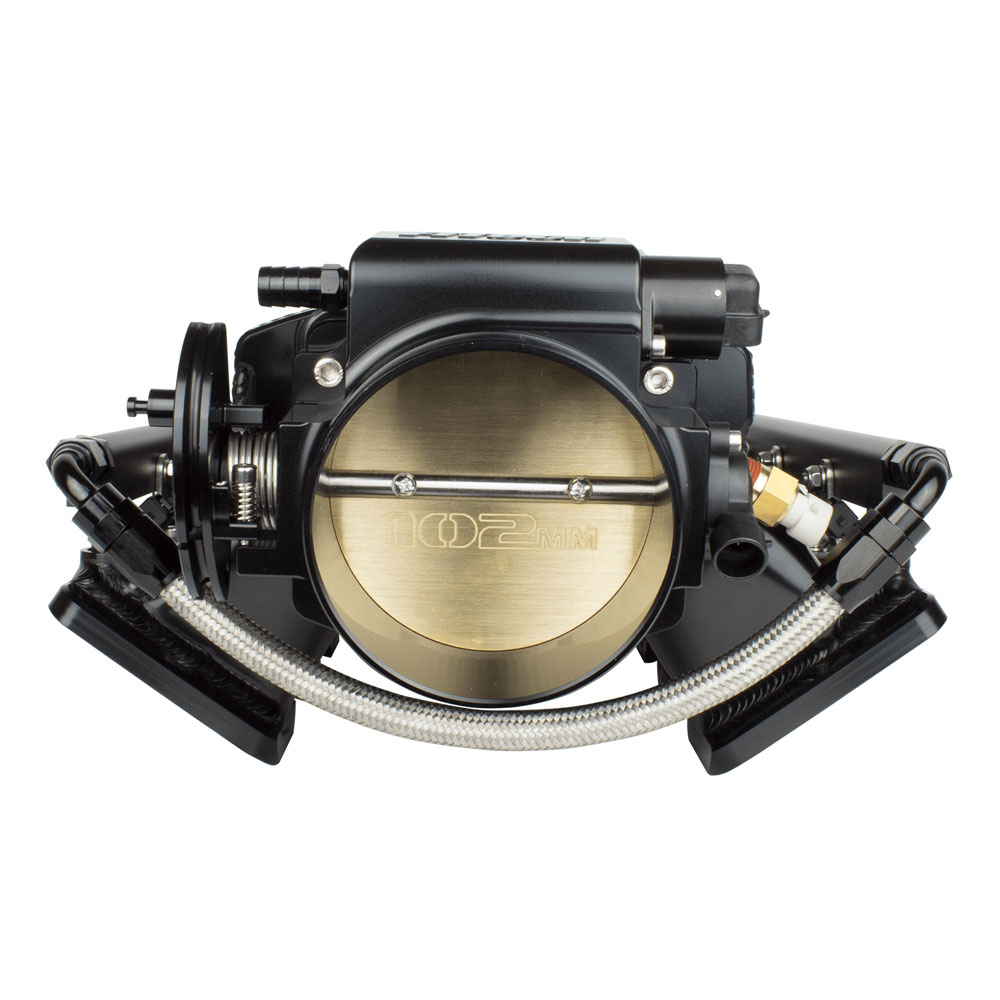

- Low profile, 102mm inlet, Fabricated 3mm thick aluminum sheet metal TIG welded intake manifold with 1500-6500 rpm power-band up to 750 HP to the flywheel and contains a 3 BAR MAP sensor for power adder applications that supports up to 30 PSI of boost.
- Self-learning ECU with touch screen controller for easy setup and configuration.
- Sequential fuel and spark control with individual cylinder trim.
- Dual Bosch wide band with dual trim control (Self-learning).
- 24X and 58X crank and cam compatible.
- On the fly programmable target AFR and timing (if desired).
- 24X and 58X crank and cam compatible.
- On the fly programmable target AFR and timing (if desired).
Product Description
The Ultimate LS 750HP Kit without trans control for LS3/L92 (Part No: #70013) are a complete self-tuning induction Systemsfor LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from “Craigslist”. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this kit the Ultimate EFI.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Fuel Injection System Series:
- Ultimate LS
- Make:
- Chevy
- Engine:
- LS3, L92
- Injection Style:
- Port Injection
- Supported Horsepower:
- 752 HP
- Includes Intake Manifold:
- Yes
- Intake Manifold Finish:
- Black Anodized
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- 102.000 mm
- Throttle Body CFM:
- 1000 CFM
- Throttle Body Material:
- Billet Aluminum
- Throttle Body Finish:
- Black Anodized
- Includes Fuel Rails:
- Yes
- Number of Injectors Included:
- 8 Injector
- Injector Flow Rate:
- 55 lbs/hr.
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- No
- Includes Fuel Pressure Regulator:
- No
- Sensors Included:
- MAP, Wide Band O2, Idle Air Temp, Throttle Position
- Notes:
- Does not include transmission control
- Quantity:
- Sold As Kit
