FiTech Fuel Injection System 70001; Ultimate LS 500 HP Port Injection Black Anodized Billet Aluminum for Chevy LS
$1,599.77
$1,806.00 On Sale
Save 11%
Please note that this part is not included in any pre-paid freight agreement.
See our shipping policy for more details.
Details
- Low profile, 92mm inlet, Fabricated 3mm thick aluminum sheet metal TIG welded intake manifold with 1500-6500 rpm power-band up to 500 HP to the flywheel.
- Self-learning ECU with touch screen controller for easy setup and configuration.
- Sequential fuel and spark control with individual cylinder trim.
- Bosch wide band controlled (Self-learning).
- 24X and 58X crank and cam compatible.
- On the fly programmable target AFR and timing (if desired).
- 24X and 58X crank and cam compatible.
- On the fly programmable target AFR and timing (if desired).
Product Description

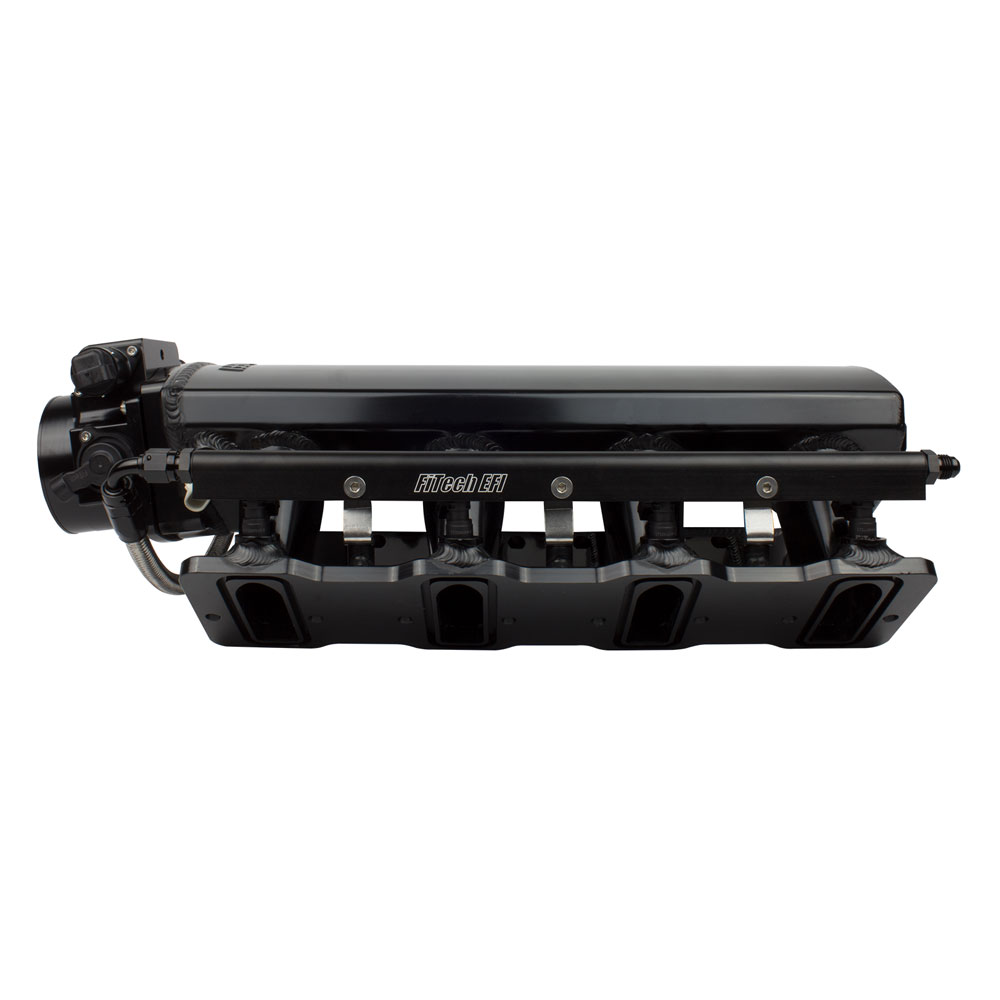

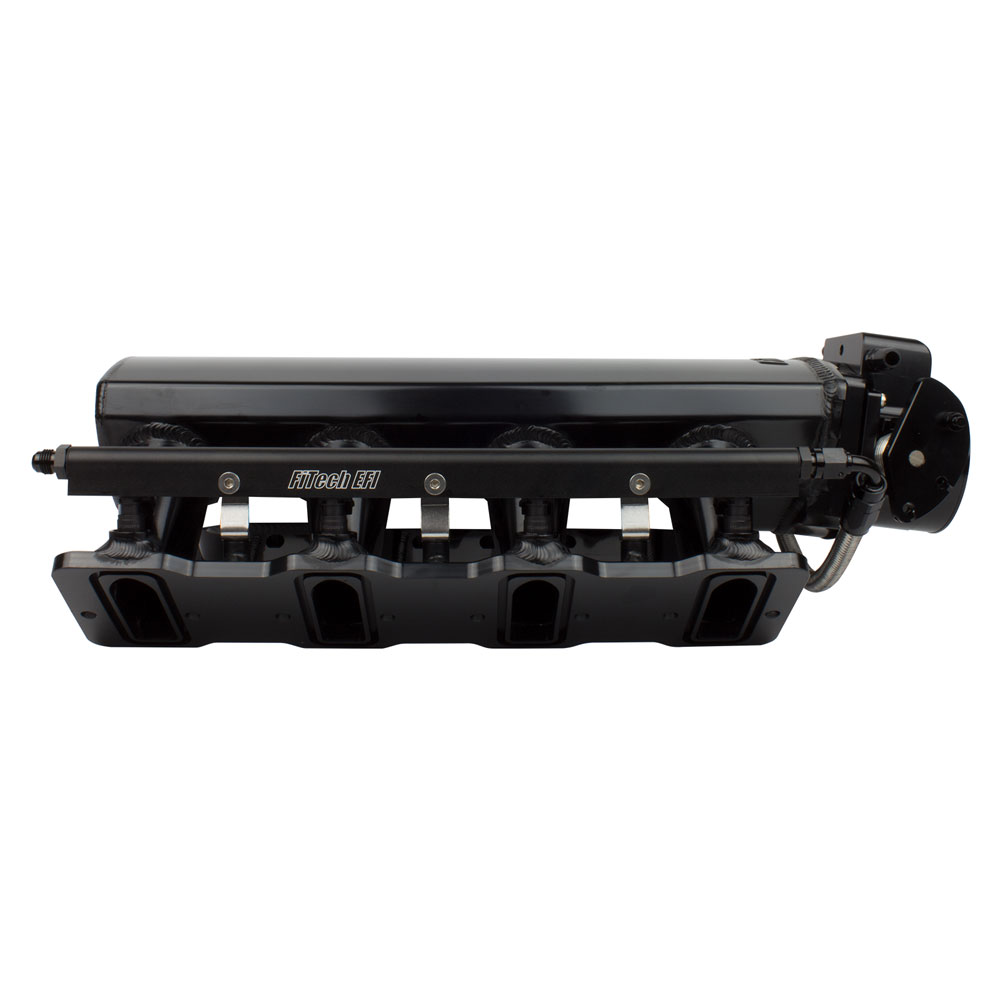

The Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body are a complete self-tuning induction Systemsfor LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from “Craigslist”. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this intake manifold kit the Ultimate EFI.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Fuel Injection System Series:
- Ultimate LS
- Make:
- Chevy
- Engine:
- LS
- Injection Style:
- Port Injection
- Supported Horsepower:
- 500 HP
- Includes Intake Manifold:
- Yes
- Intake Manifold Finish:
- Black Anodized
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- 92.000 mm
- Throttle Body Material:
- Billet Aluminum
- Throttle Body Finish:
- Black Anodized
- Includes Fuel Rails:
- Yes
- Number of Injectors Included:
- 8 Injector
- Injector Flow Rate:
- 36 lbs/hr.
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- No
- Includes Fuel Pressure Regulator:
- No
- Sensors Included:
- MAP, Wide Band O2, Idle Air Temp, Throttle Position
- Notes:
- Does not include transmission controller
- Quantity:
- Sold As Kit
