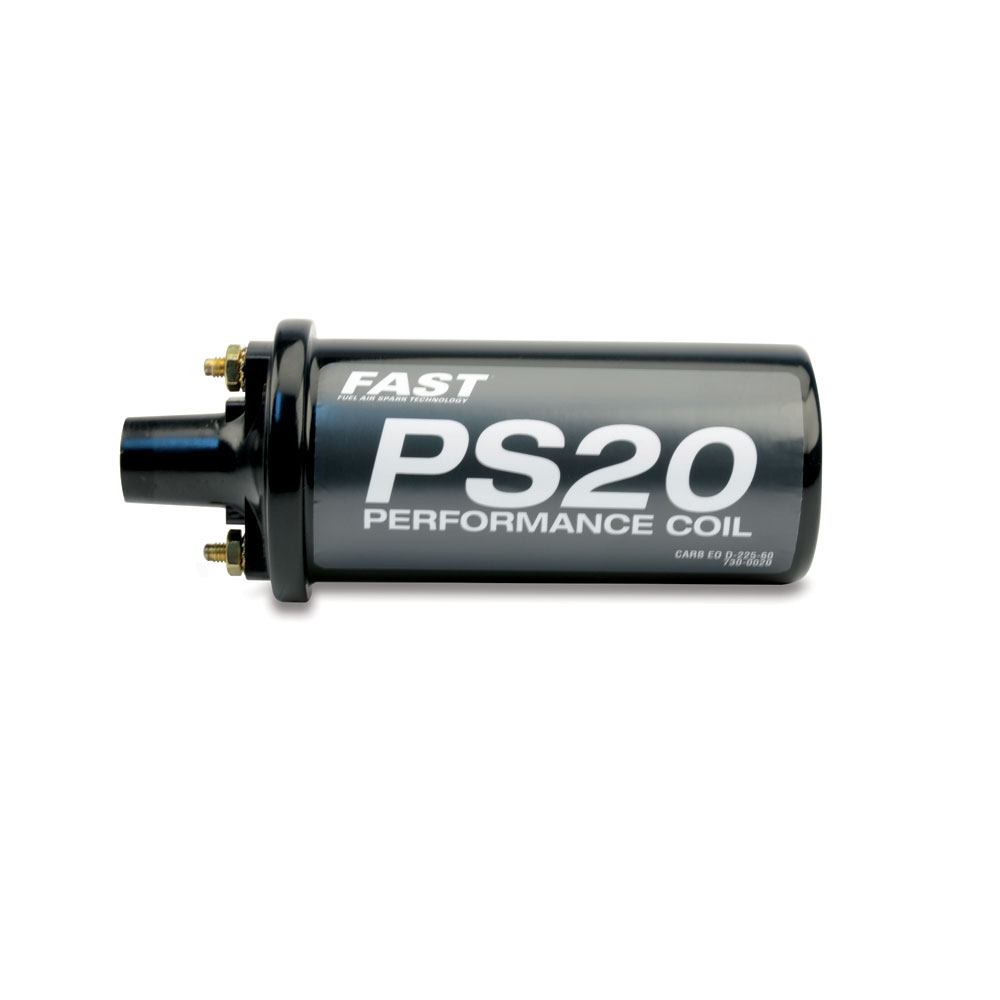

FAST Ignition Coil 730-0020; PS20 Black 46000 Volt Canister Socket, Female
$52.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- PS20 Canister Style coil
- Black
- 20-50% higher energy at spark plug than typical stockcoils
- Oil filled for maximum cooling of internal windings and high reliability
- Windings optimized with computer aided design for maximum spark gap current and high available voltage
- Alkyd coil towers eliminate failure from flash over and carbon tracking.
- 50 state legal CARB E.O. D-225-60
- Windings optimized with computer aided design for maximum spark gap current and high available voltage
- Alkyd coil towers eliminate failure from flash over and carbon tracking.
- 50 state legal CARB E.O. D-225-60
Product Description
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
Specifications
- Ignition Coil Series:
- PS20
- Coil Type:
- Canister
- Maximum Voltage:
- 46000 Volt
- Primary Resistance:
- 1.400 Ohms
- Secondary Resistance:
- 5.2K Ohms
- Coil Wire Attachment:
- Socket, Female
- Height:
- 5.750 in.
- Diameter:
- 2.125 in.
- Finish:
- Black
- Internal Construction:
- Oil Filled
- Primary Inductance:
- 7.50 mH
- Turns Ratio:
- 60:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- Yes
- Notes:
- C.A.R.B. EO# D-225-60
- Quantity:
- Sold As Each
