Equus Gauge Set 7500; 7000 Series Mechanical, Electric Speedometer, Oil Pressure, Water Temperature, Fuel Level, Voltmeter Black

Details

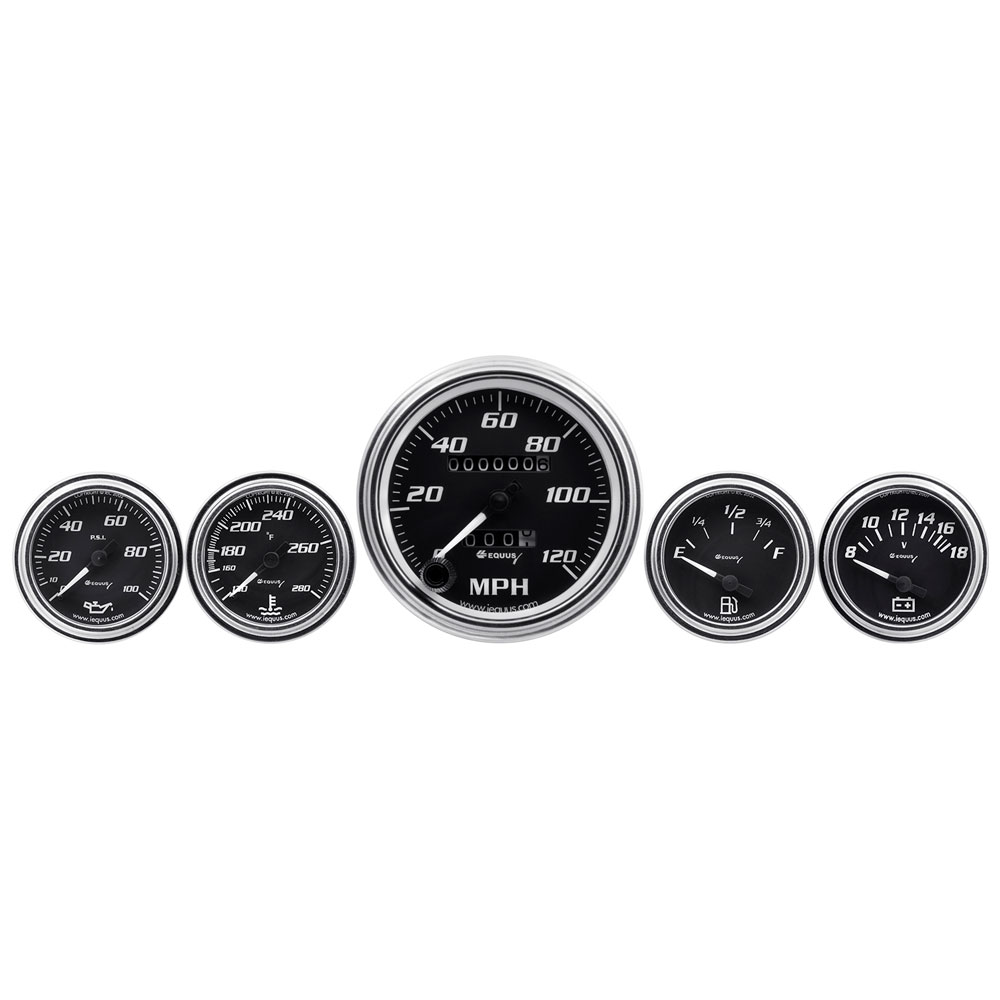

• Set includes 3 3/8 in. 120 MPH mechanical speedometer, 2 in. 100 PSI mechanical oil pressure, 2 in. 280 degree F mechanical water temperature, 2 in. 18V electric voltmeter, and 2 in. electric 0-90 ohm fuel level gauges
• Back-Lit illumination for night use. Includes red and green bulb covers.
• Includes: 3/8 in. & 1/2 in. NPT brass adapter fittings for temperature gauge, 6 ft. nylon tubing with 1/8 compression fittings and 1/8 in.
• One million mile odometer with one thousand mile resettable trip meter.
• Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH)
• 5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
• Matching tachometer is available in Equus model 7068
• Includes installation instructions in English, French, and Spanish.
• Includes: NPT female to 1/4 in. NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.

• Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH)
• 5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
• Matching tachometer is available in Equus model 7068
• Includes installation instructions in English, French, and Spanish.
• Includes: NPT female to 1/4 in. NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.
