Edelbrock Supercharger 1581; E Force for 2004 to 2008 Ford F150 2WD 5.4L MOD Triton

$7,775.87

Part #: 1581

Brand: Edelbrock

UPC: 085347015818

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

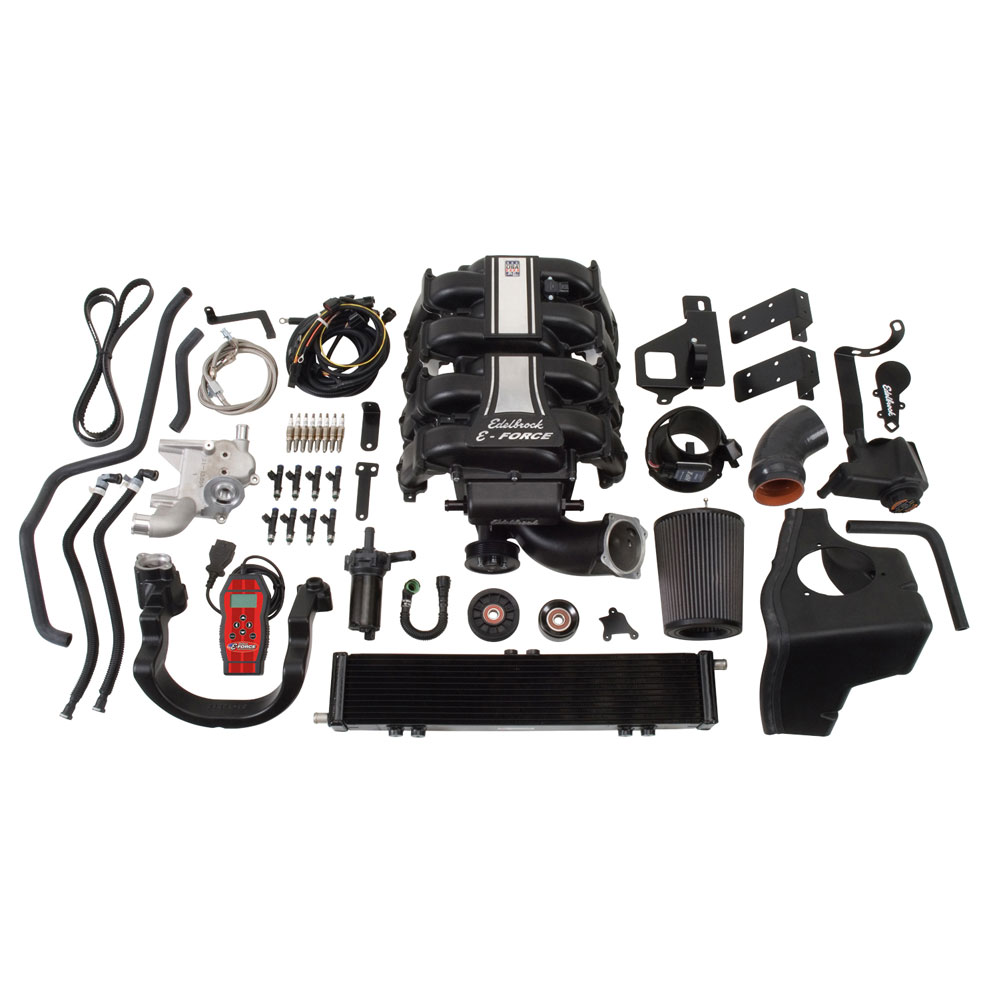

The Edelbrock supercharger Stage 1 Street system part #1581 for 2004-08 2-Wheel Drive Ford F-150 Trucks increases the performance of your 5.4L 3V engine to 478 horsepower and 504 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1581 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Specifications

Supercharger Series:
E Force
Year:
2004 to 2008
Make:
Ford
Model:
F150 2WD
Engine:
5.4L MOD Triton
Includes Intercooler:
Yes
Includes Tuner:
Yes
Tuner Type:
Hand Held
Includes Mass Air Flow Sensor:
Yes
Mass Air Flow Sensor Type:
95.000 mm
Includes Fuel Injectors:
Yes
Fuel Injector Size:
41 lbs/hr.
Extended Warranty Available:
Yes
Quantity:
Sold As Kit

Tech Resources

  • 1581.pdf
