Edelbrock Intake Manifold 7139; Pro Flo XT Cathedral Port High Rise 1500 to 6500 Satin Aluminum for GM LS

$688.95

Part #: 7139

Brand: Edelbrock

UPC: 085347071395

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

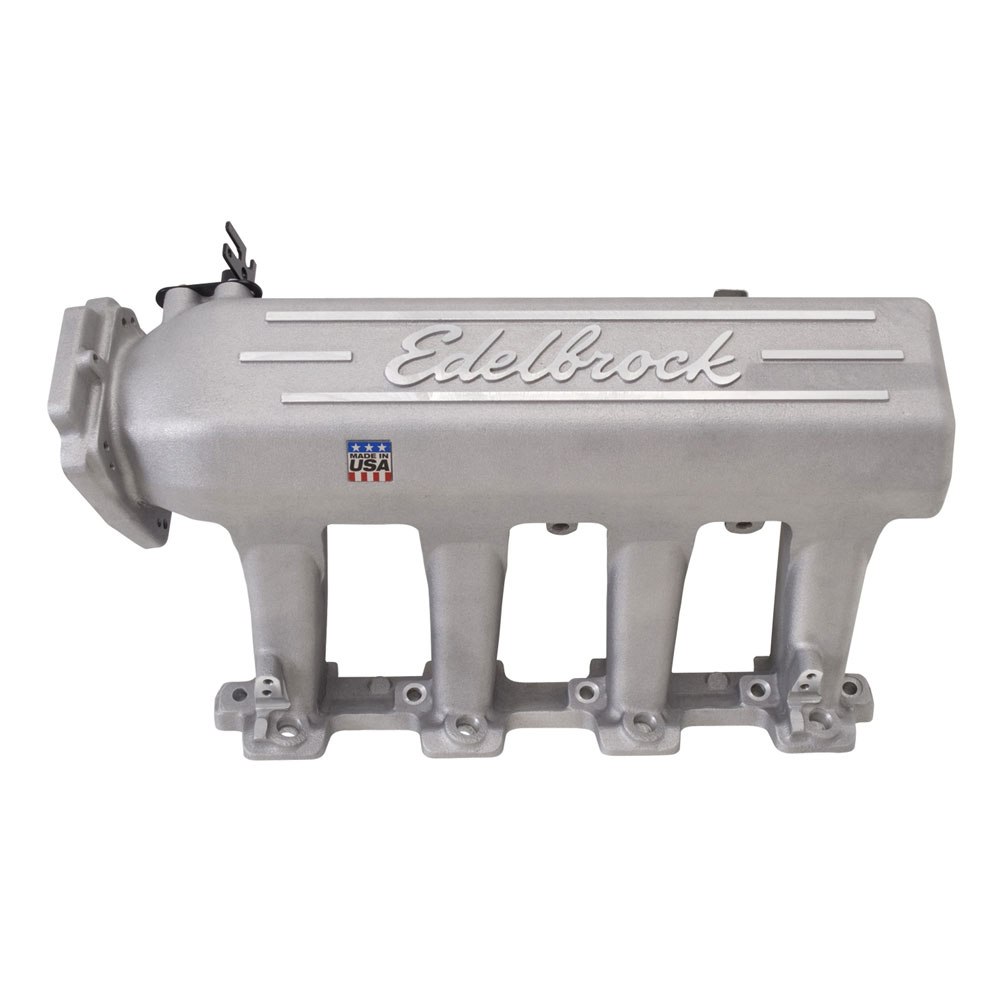

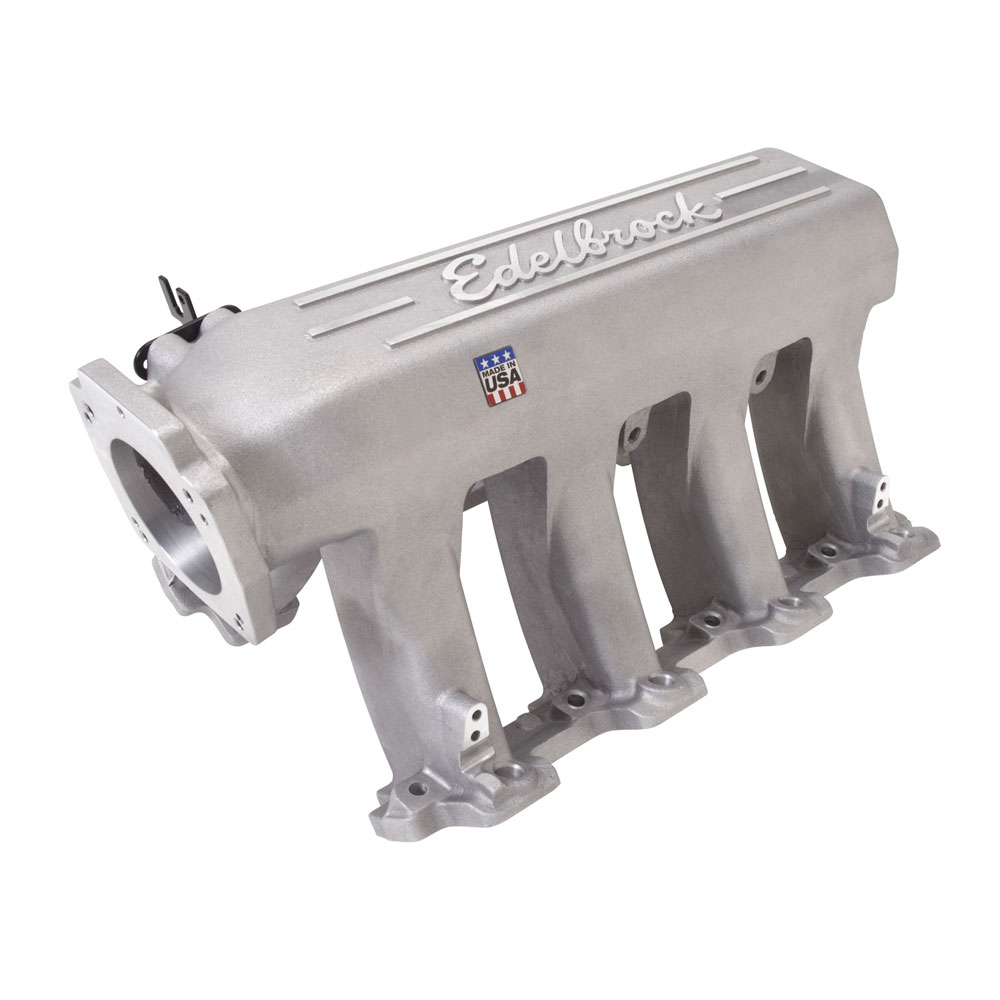

Edelbrock part #7139 Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. The Edelbrock Pro-Flo XT LS1 #7139 EFI intake manifold Accepts Pro-Flo XT throttle body #3869 or adapter #2737 and standard LS1 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet.

Specifications

Intake Manifold Series:
Pro Flo XT
Make:
GM
Engine:
LS
Deck Height:
9.240 in.
Port Style:
Cathedral Port
Intake Style:
High Rise
Carburetor or Throttle Body Flange:
90.000 mm
RPM Range:
1500 to 6500
EGR or Non-EGR:
Non EGR
Material:
Aluminum
Finish:
Satin
Includes Gaskets:
No
Front Height:
10.200 in.
Fuel System Type:
EFI
Requires Aftermarket Fuel Rails:
Yes
Includes Fuel Rails:
No
Rear Height:
10.000 in.
Quantity:
Sold As Each

Tech Resources

  • EDE7139.pdf
