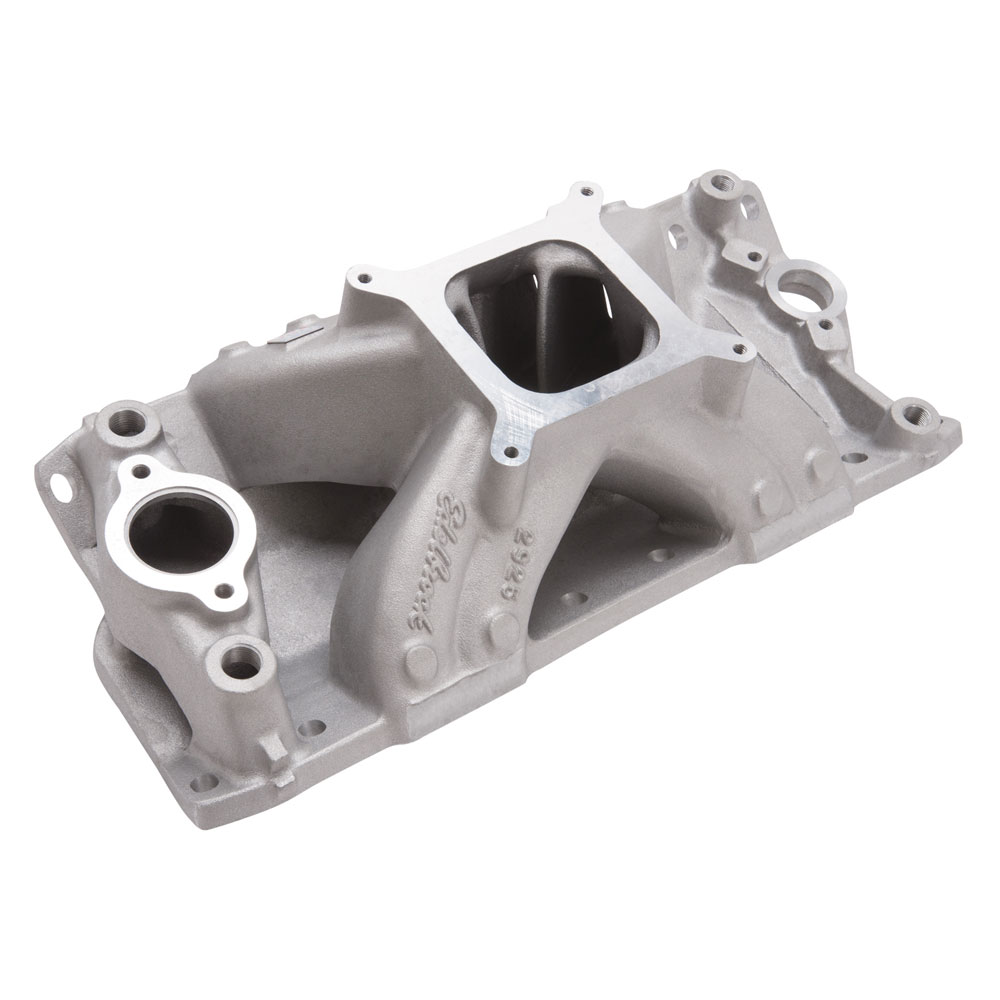

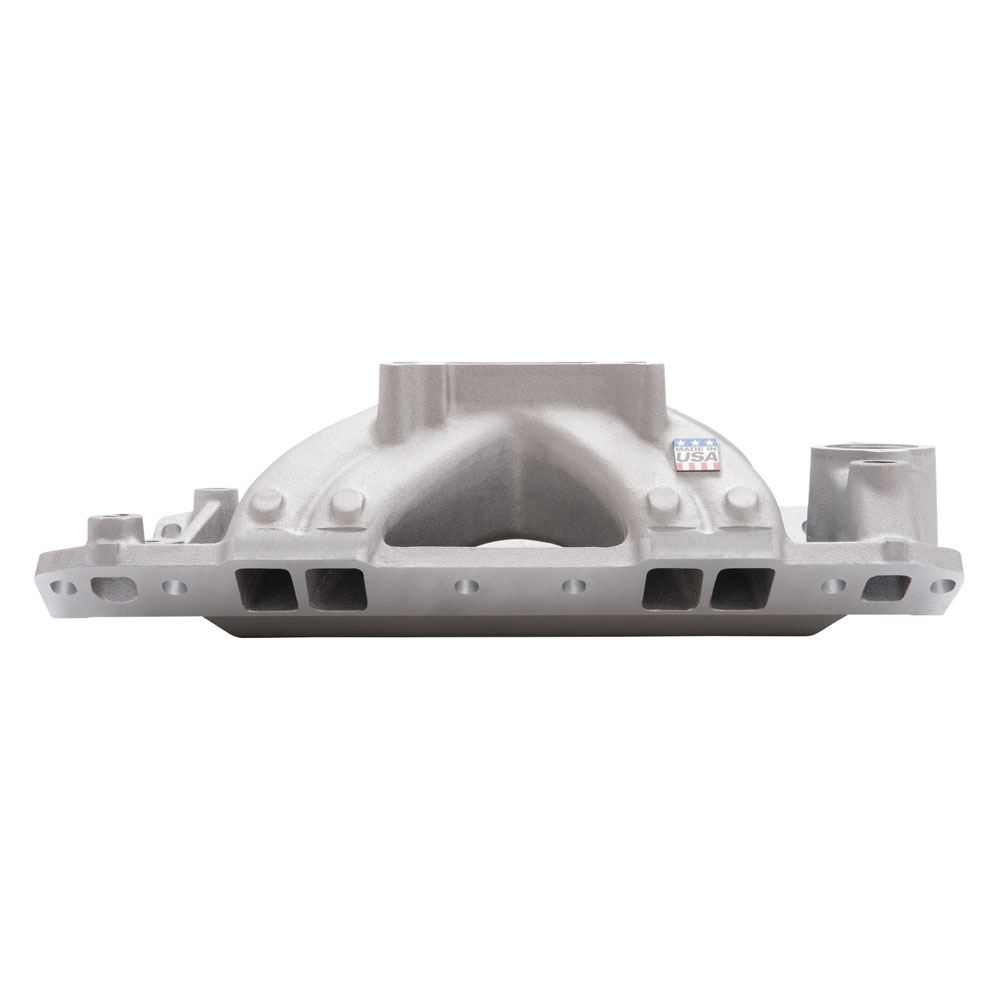

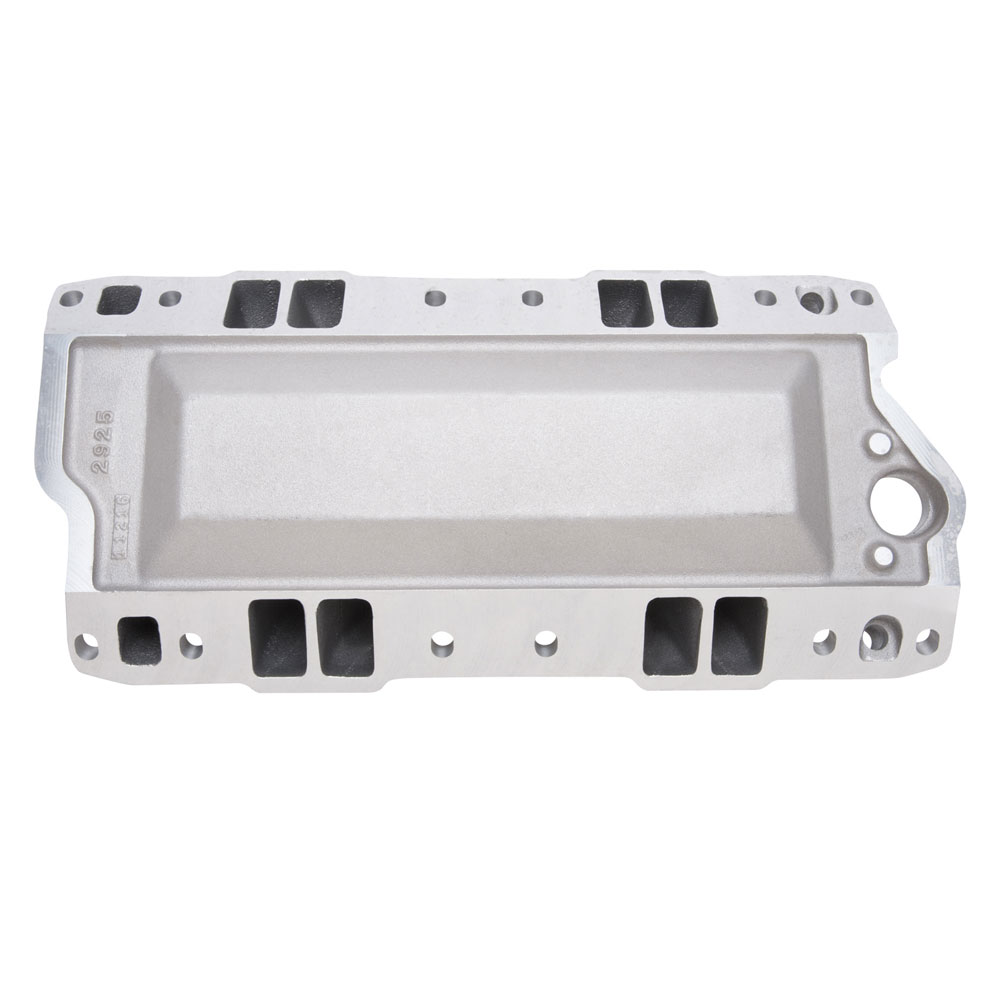

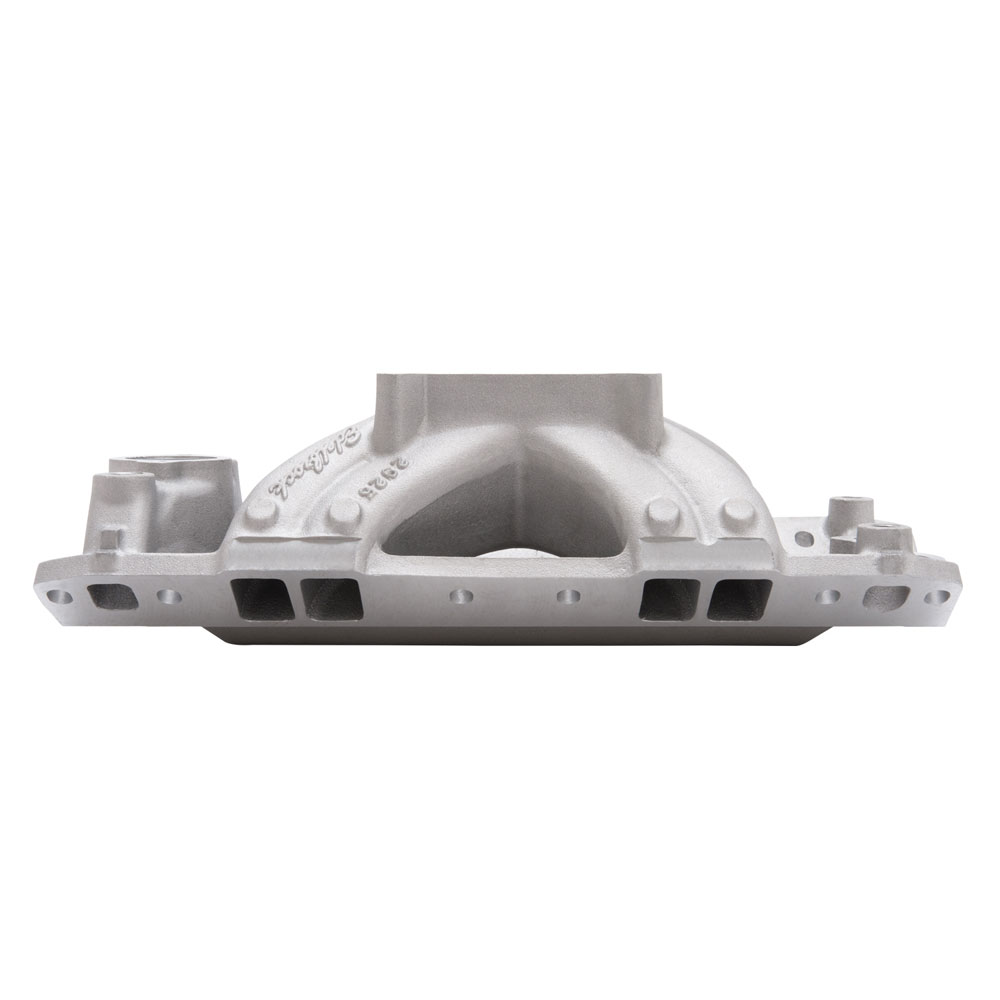

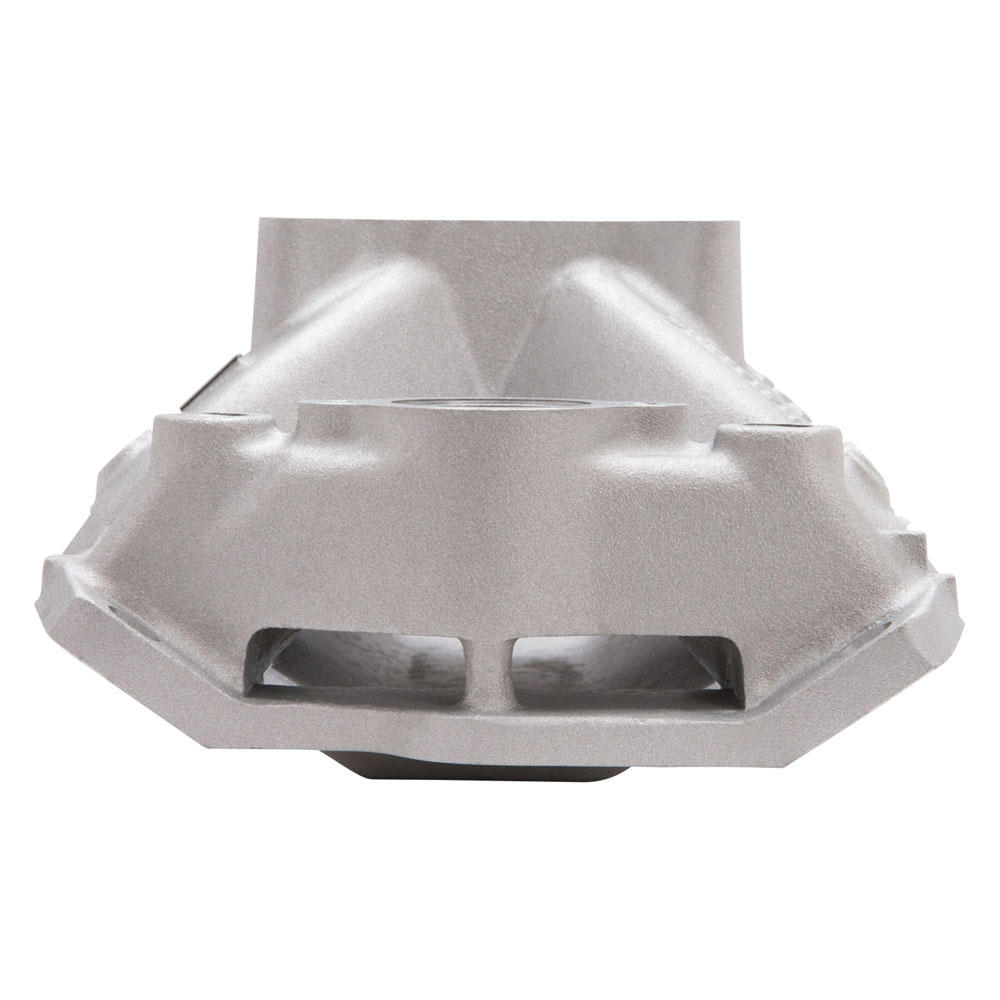

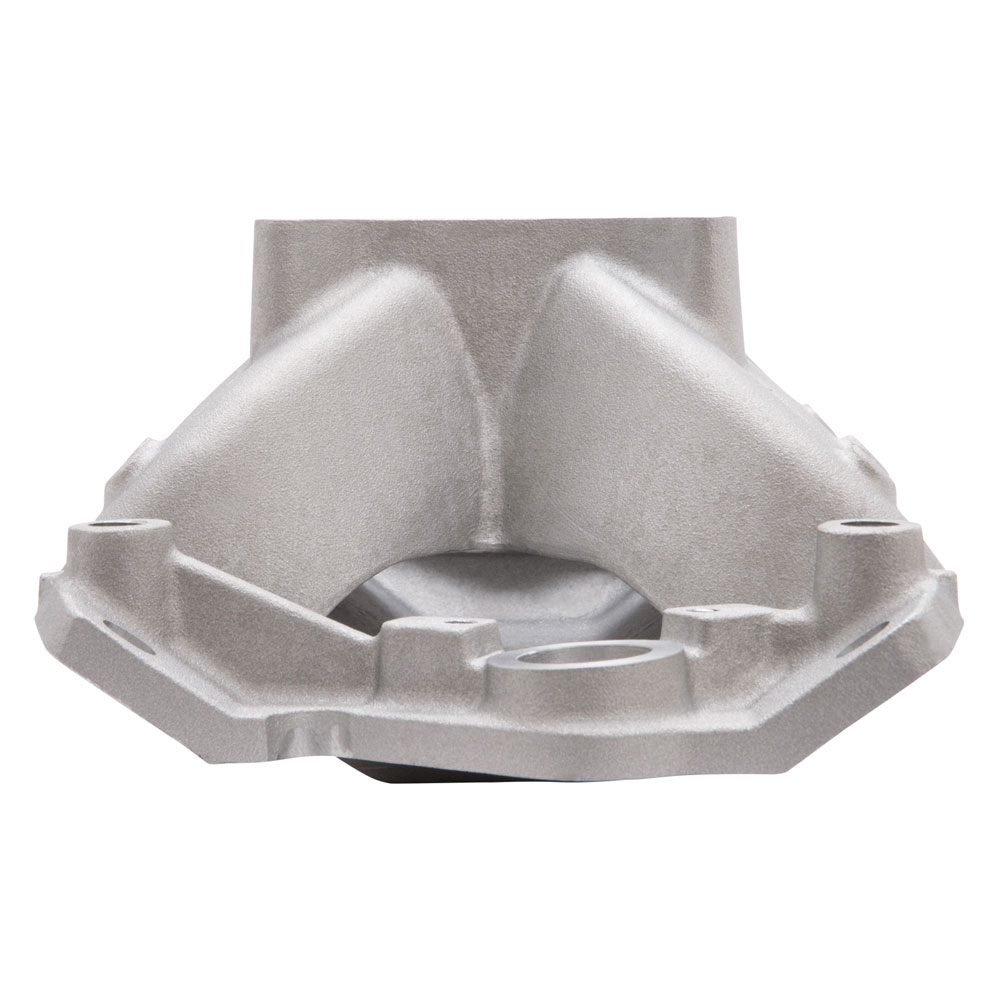

Edelbrock Intake Manifold 2925; Super Victor Rectangular Single Plane 3500 to 8000 Satin Aluminum for Chevy 262 to 400

$440.95

Part #: 2925

Brand: Edelbrock

UPC: 085347029259

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

Edelbrock part #2925 Super Victor 23-degree intake manifold is designed for heads with a standard port location, the runners match the "flat floor" entry of the latest 23-degree heads. Carb pad height is 5-1/2" (from end seals) and overall, this intake is about one-inch taller than our Victor Jr. intake #2975. Runners have a 2.80 square-inch cross-section.

Specifications

Intake Manifold Series:
Super Victor
Make:
Chevy
Engine:
262 to 400
Deck Height:
Standard
Port Style:
Rectangular
Intake Style:
Single Plane
Carburetor or Throttle Body Flange:
4150 Square Flange
RPM Range:
3500 to 8000
EGR or Non-EGR:
Non EGR
Material:
Aluminum
Finish:
Satin
Includes Gaskets:
No
Front Height:
5.500 in.
Fuel System Type:
Carbureted
Requires Aftermarket Fuel Rails:
No
Includes Fuel Rails:
No
Rear Height:
5.500 in.
Quantity:
Sold As Each

Videos

Tech Resources

  • 2925.pdf
