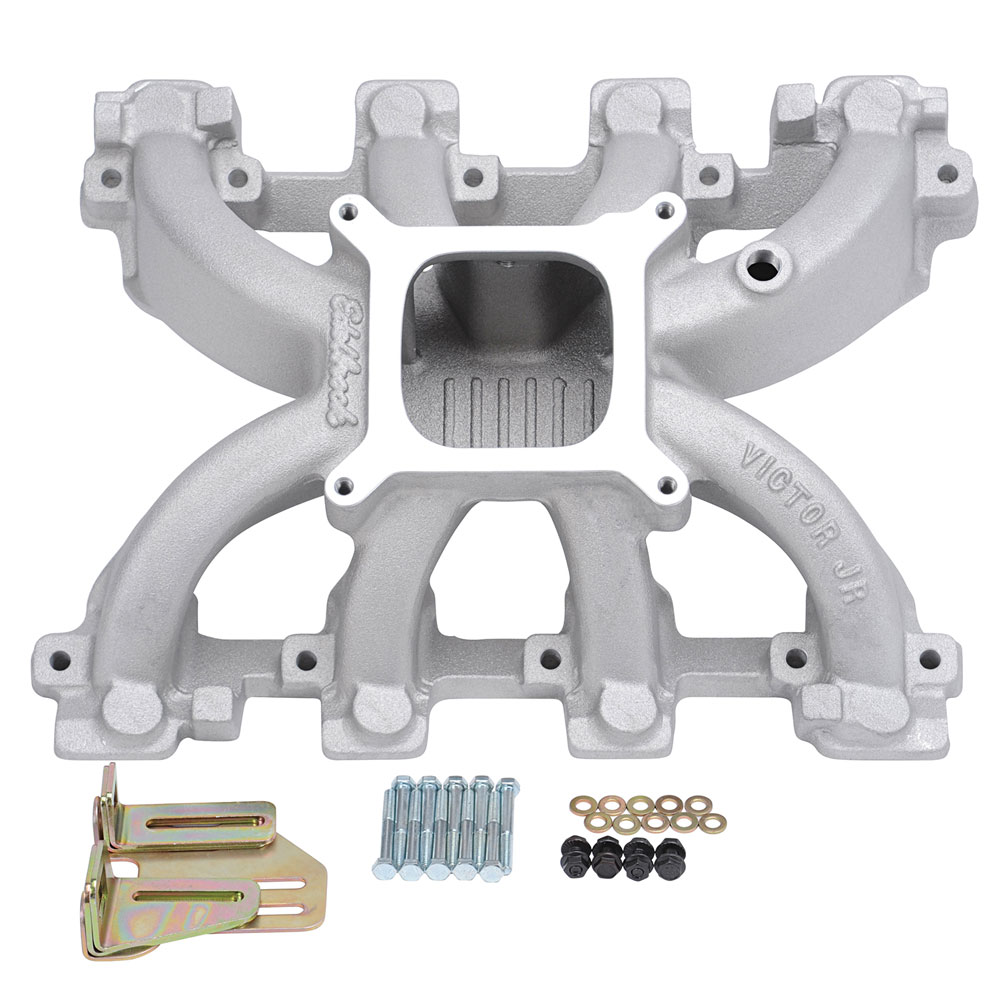

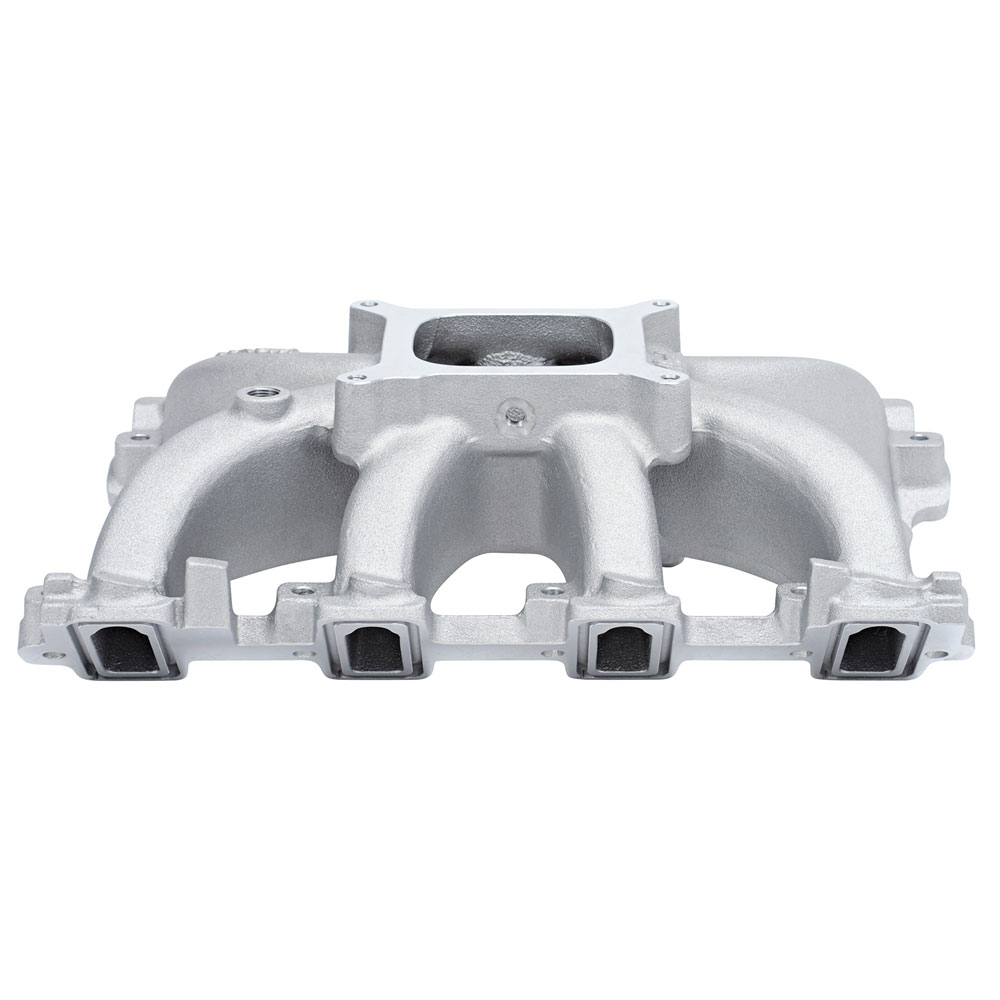

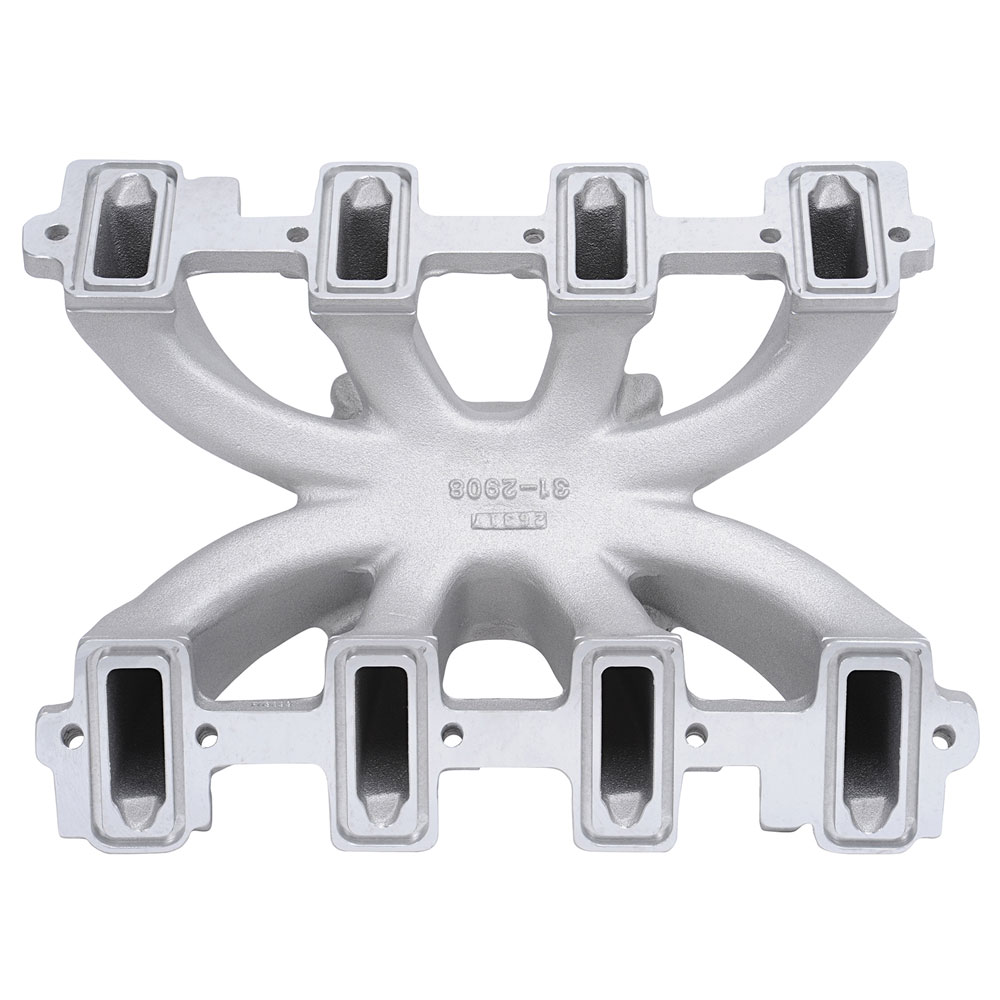

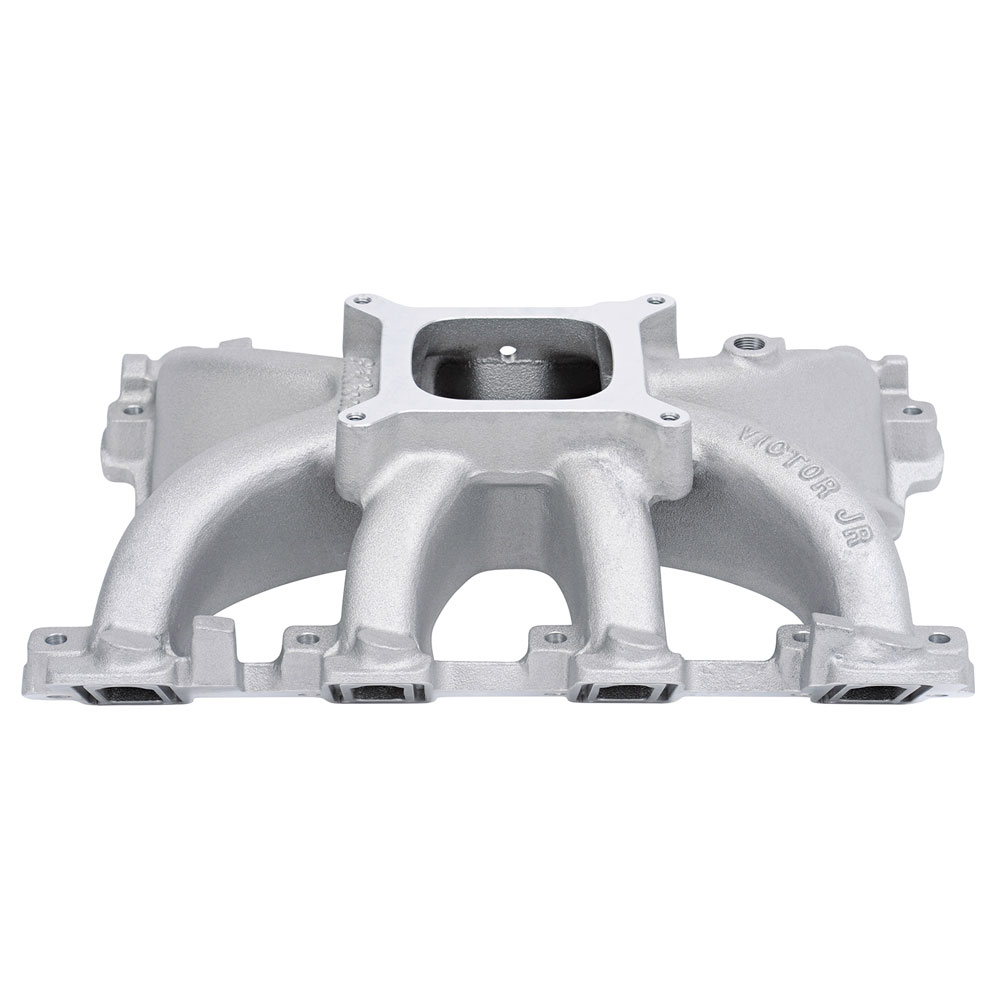

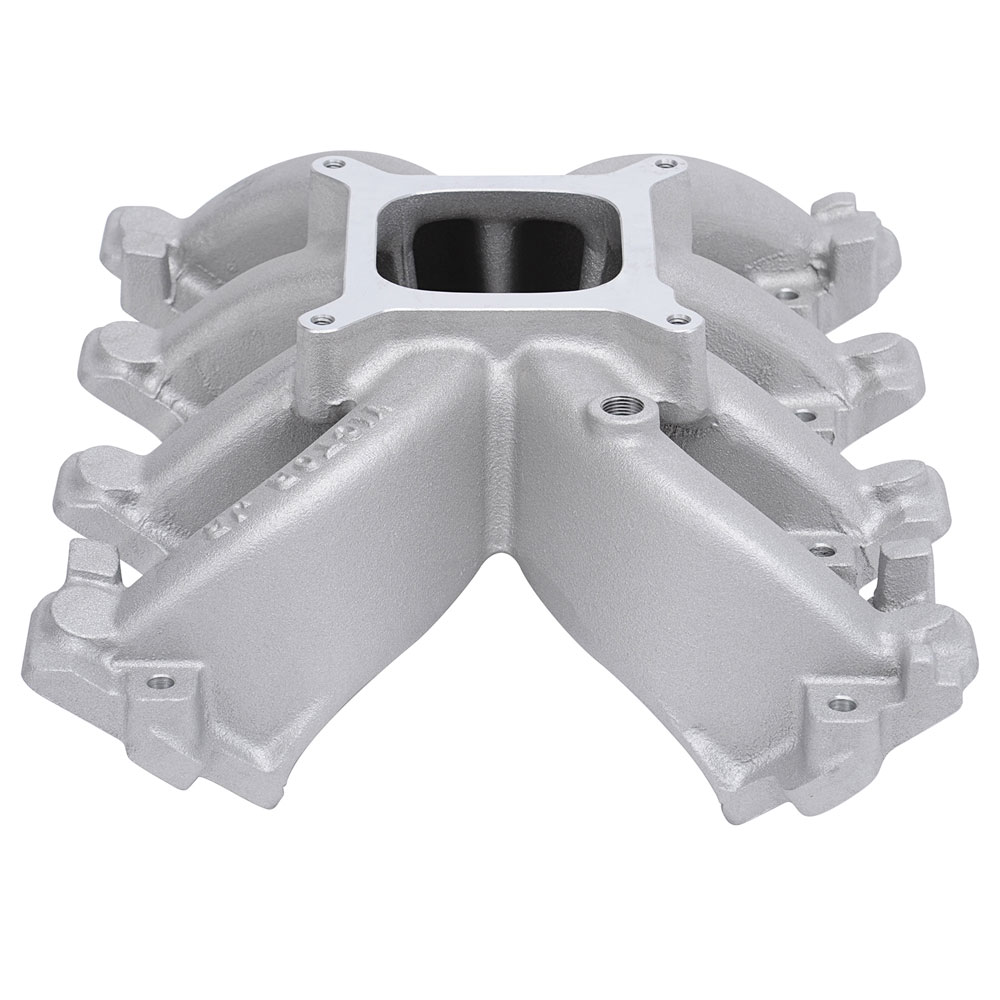

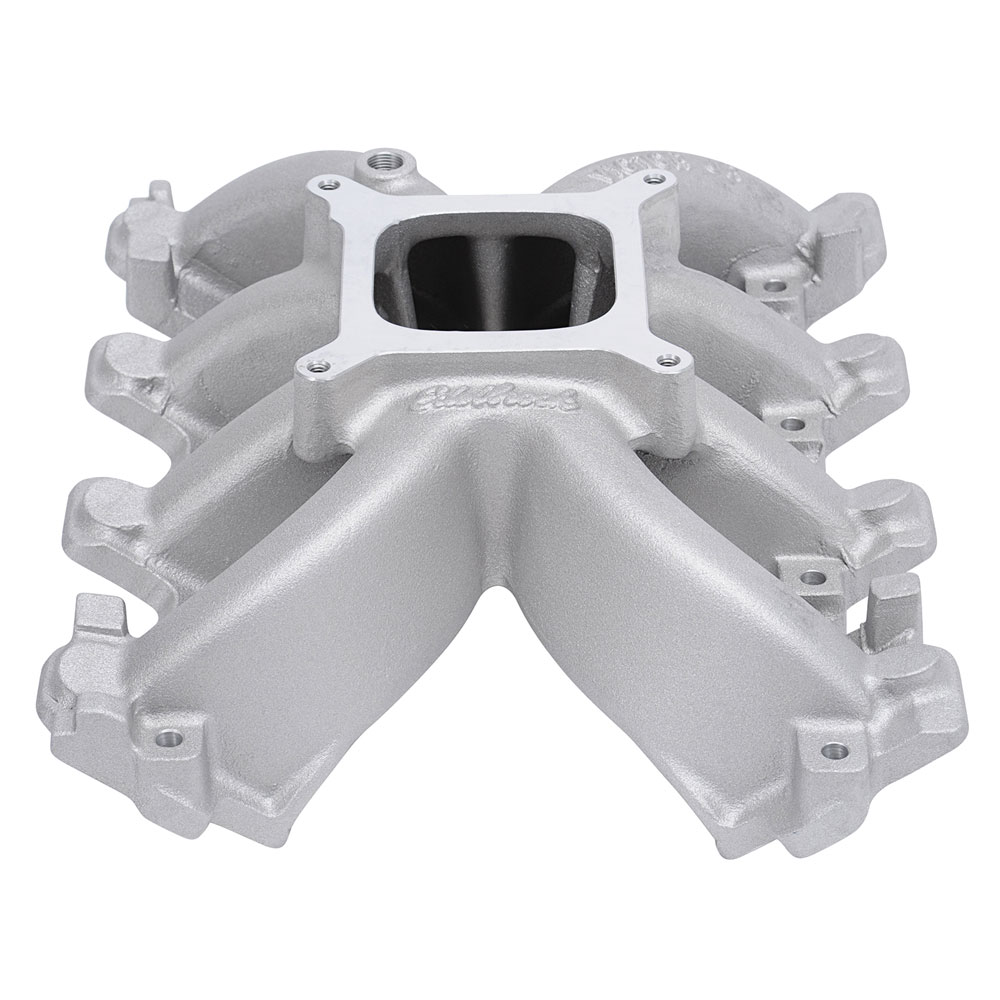

Edelbrock Intake Manifold 29087; Victor Jr. Cathedral Port Single Plane 3500 to 7000 Satin Aluminum for Chevy LS

$411.95

Part #: 29087

Brand: Edelbrock

UPC: 085347290871

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

Edelbrock part #29087 Victor Jr. LS1 intake manifold is a high-rise single-plane intake capable of supporting up to 600 hp. The Victor Jr. LS1 features a flange that accepts a square-bore carburetors. It can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification.

Specifications

Intake Manifold Series:
Victor Jr.
Make:
Chevy
Engine:
LS
Port Style:
Cathedral Port
Intake Style:
Single Plane
Carburetor or Throttle Body Flange:
4150 Square Flange
RPM Range:
3500 to 7000
EGR or Non-EGR:
Non EGR
Material:
Aluminum
Finish:
Satin
Includes Gaskets:
No
Front Height:
4.950 in.
Fuel System Type:
Carbureted
Includes Fuel Rails:
No
Rear Height:
4.950 in.
Quantity:
Sold As Each

Videos

Tech Resources

  • 29087.pdf
