Edelbrock Fuel Pressure Regulator 8190; Billet Regulator 4.5 to 9 PSI Returnless Gasoline Aluminum
$149.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines.
- 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality.
- Edelbrock core products are engineered manufactured and tested in the USA to ensure the best quality possible.
- This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Product Description

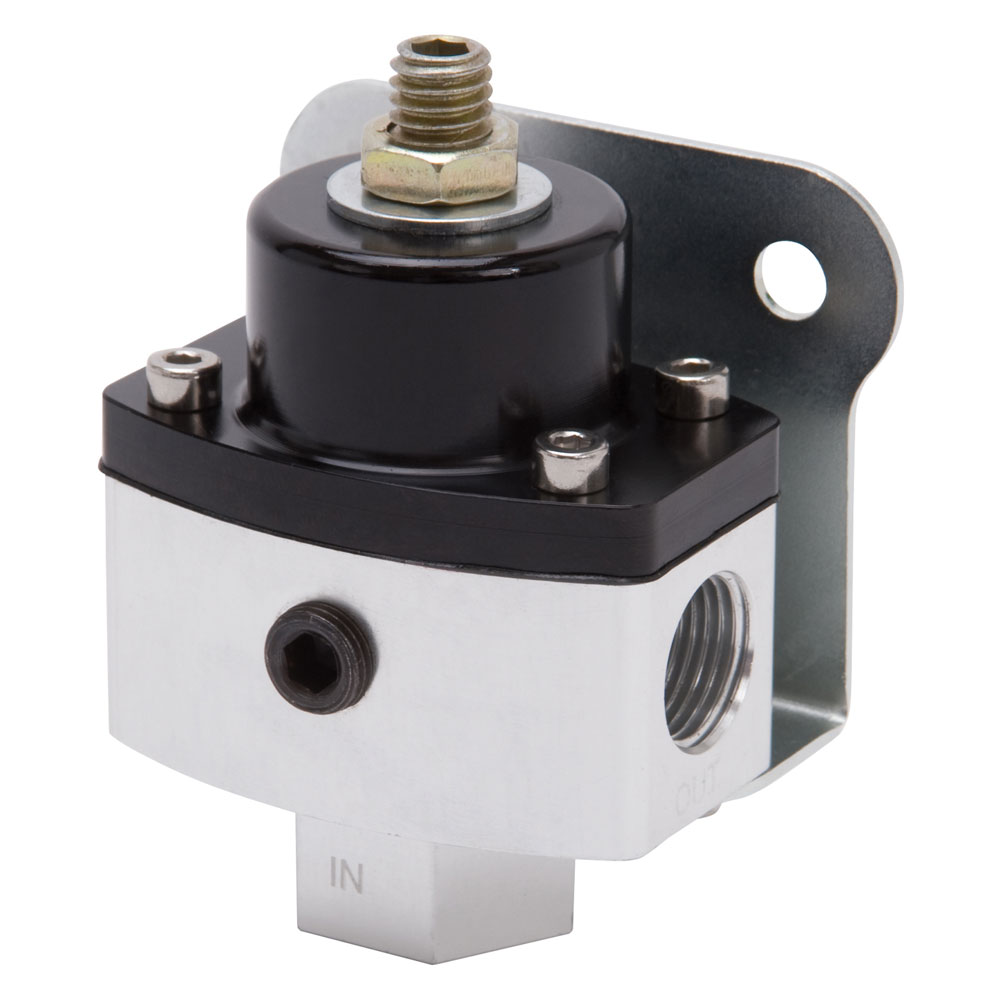

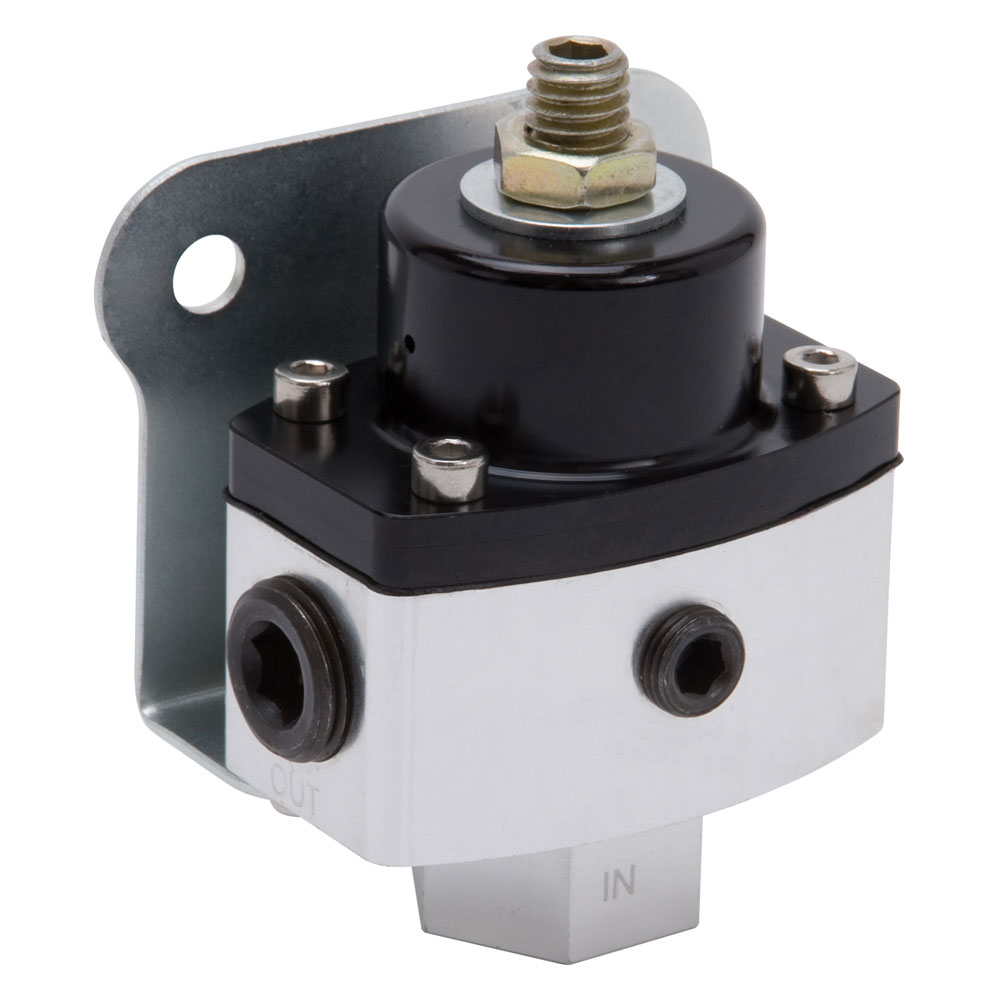

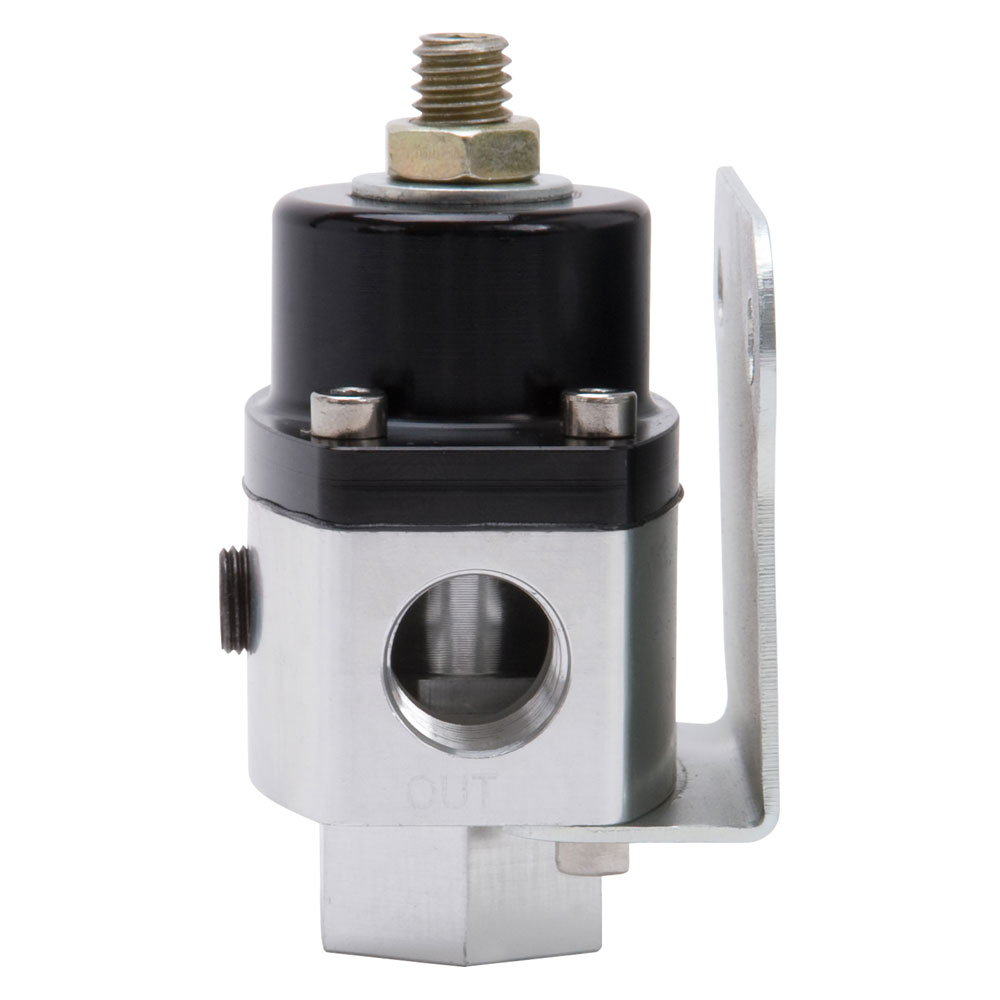

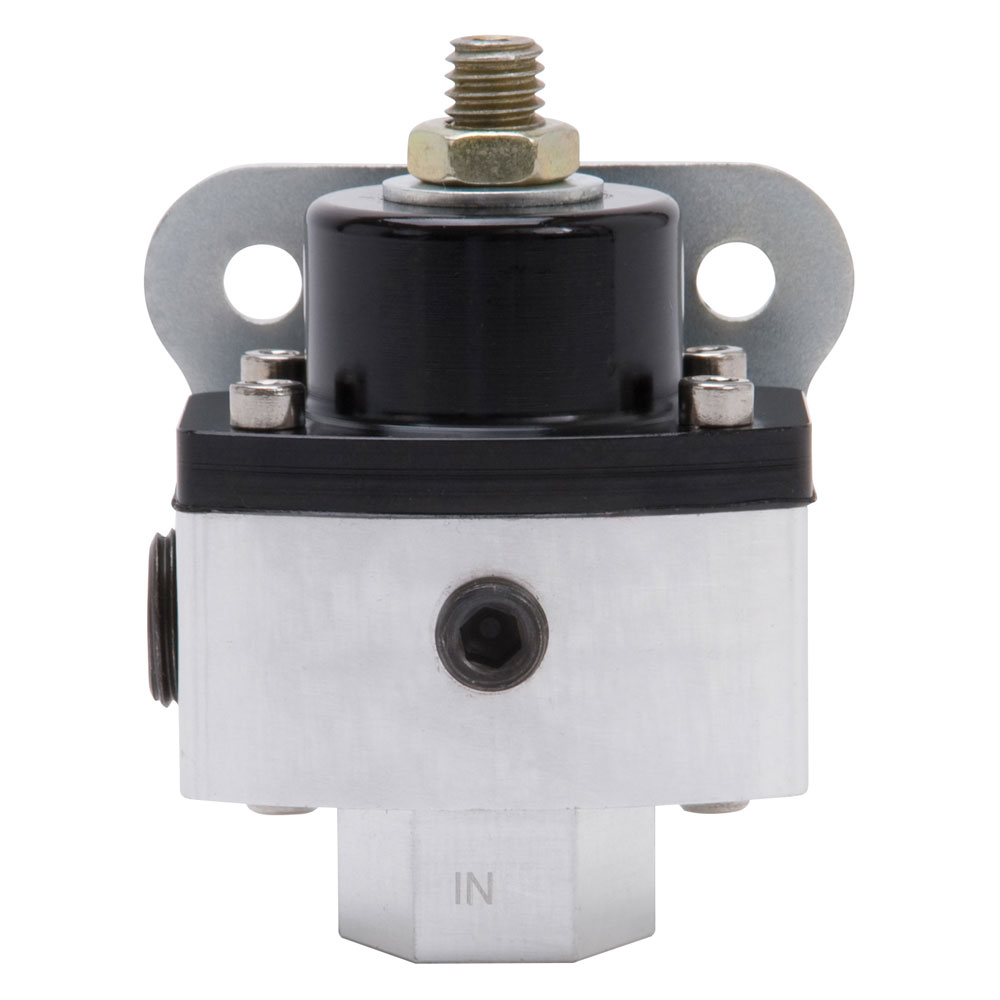

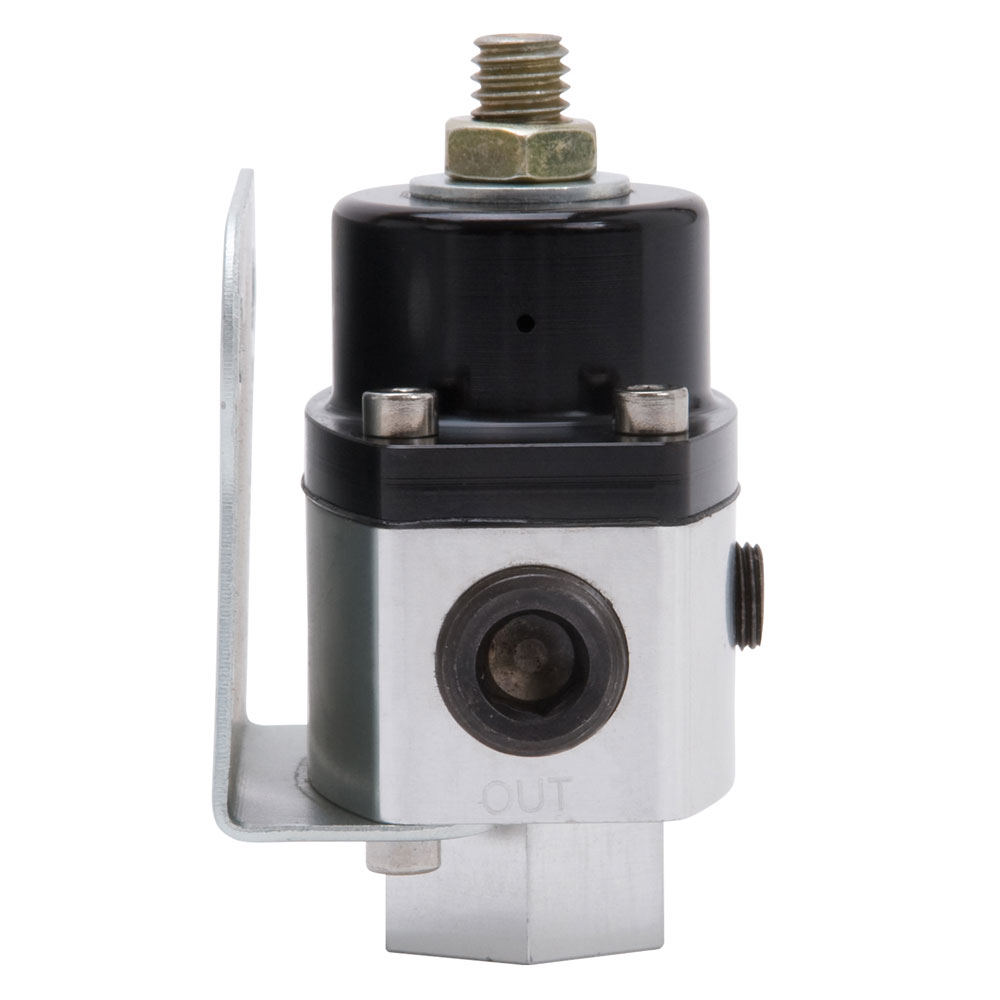

The Edelbrock Fuel Pressure Regulator P/N 8190 is for carburetor applications that require consistent pressure from 4-1/2 to 9 PSI. It features two 3/8 in. NPT outlets, one 3/8 in. NPT inlet, 1/8 in. NPT gauge port and is adjustable from 5 to 12 PSI. This regulator is manufactured from billet aluminum and features a Nylon-reinforced Nitrile diaphragm for excellent heat and leak resistance.
Specifications
- Fuel Pressure Regulator Series:
- Billet Regulator
- Regulator Pressure Range:
- 4.5 to 9 PSI
- Regulator Style:
- Returnless
- Compatible Fuels:
- Gasoline
- Rebuildable:
- Yes
- Regulator Material:
- Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Clear ANodized
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- 3/8 in. NPT
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- 3/8 in. NPT
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- No
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
