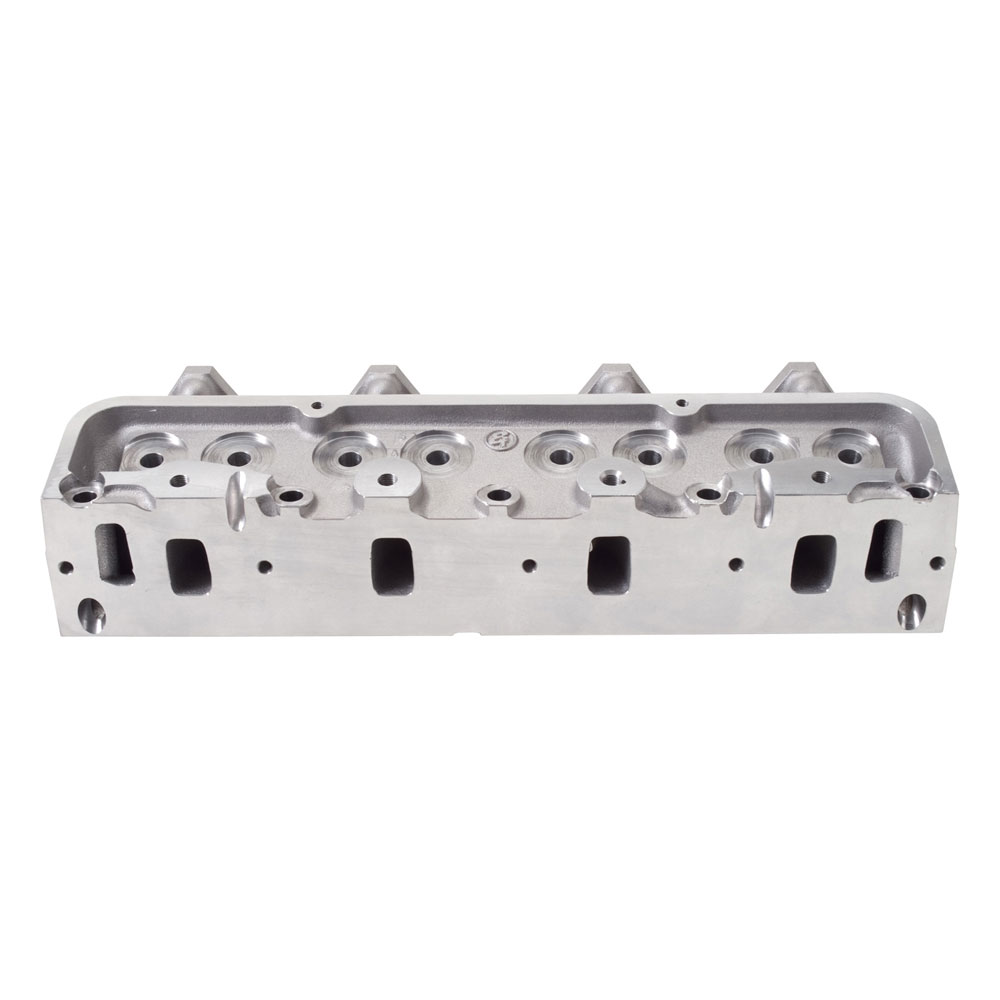

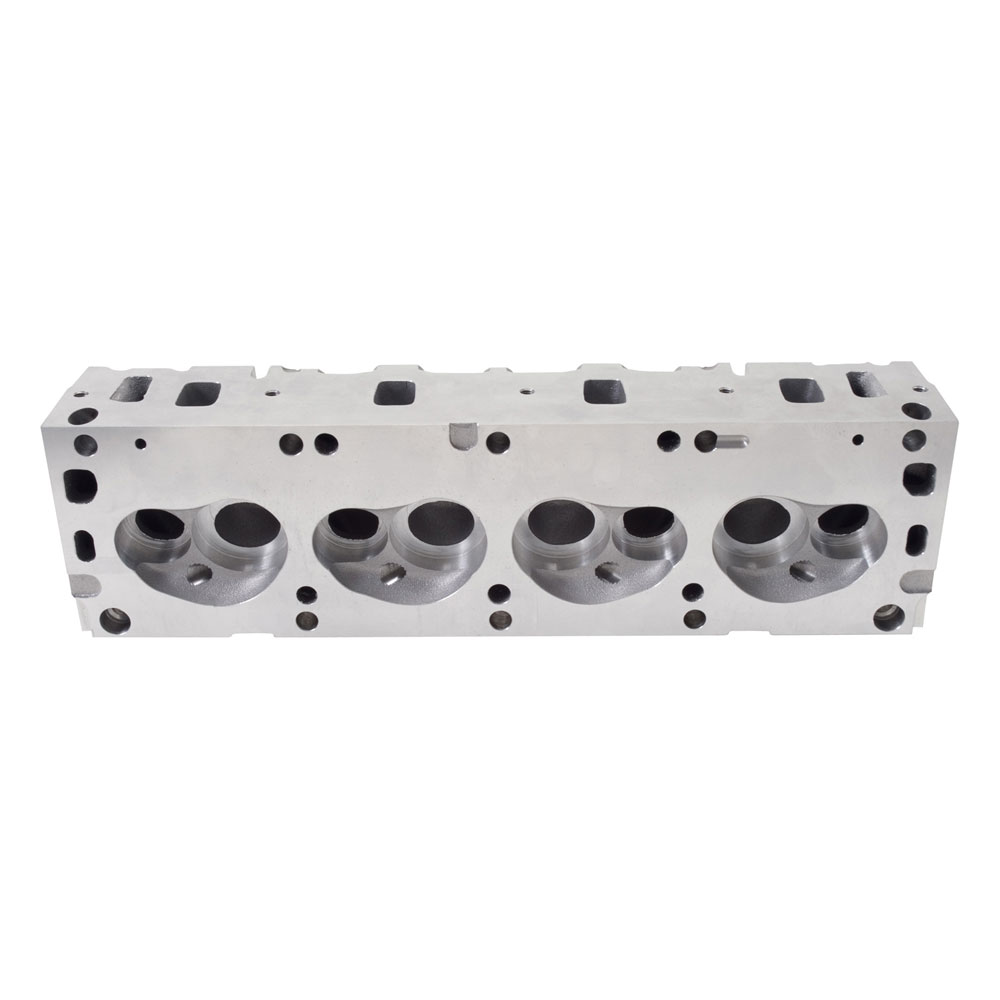

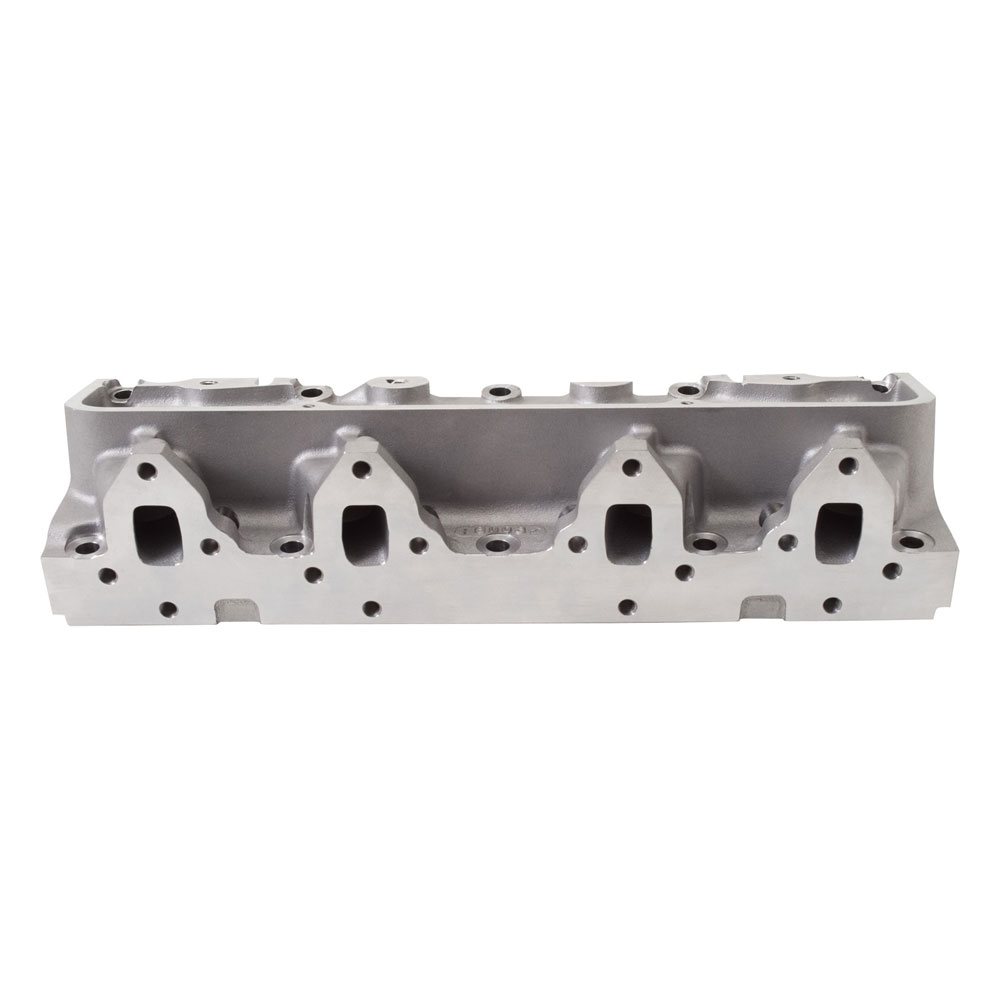

Edelbrock Cylinder Head Bare 61857; Pro Port Raw Aluminum 45 cc for Ford 352 to 428 FE

$782.50

Part #: 61857

Brand: Edelbrock

UPC: 085347618576

Estimated Ship Date: 7/22/2025 (From manufacturer)

This item has a $65.37 oversized shipping charge.
See our shipping policy for more details.

Product Description

The Edelbrock 61857 Ford FE NHRA Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Specifications

Cylinder Head Bare Series:
Pro Port Raw
Make:
Ford
Engine:
352 to 428 FE
Material:
Aluminum
Combustion Chambers:
45 cc
Intake Valve Diameter:
2.090 in.
Exhaust Valve Diameter:
1.550 in.
Spark Plug Angle:
Straight
Port Style:
Rectangular
Quantity:
Sold As Each

Tech Resources

  • EDE61857.pdf
