Edelbrock Cylinder Head Assembly 61025; Performer RPM 218cc Aluminum 77cc for Oldsmobile 400 to 455
$1,149.99
$1,284.50
Save 10%
This item has a $38.39 oversized shipping charge.
See our shipping policy for more details.
Details
- Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines.
- 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality.
- Edelbrock core products are engineered manufactured and tested in the USA to ensure the best quality possible.
- This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Product Description

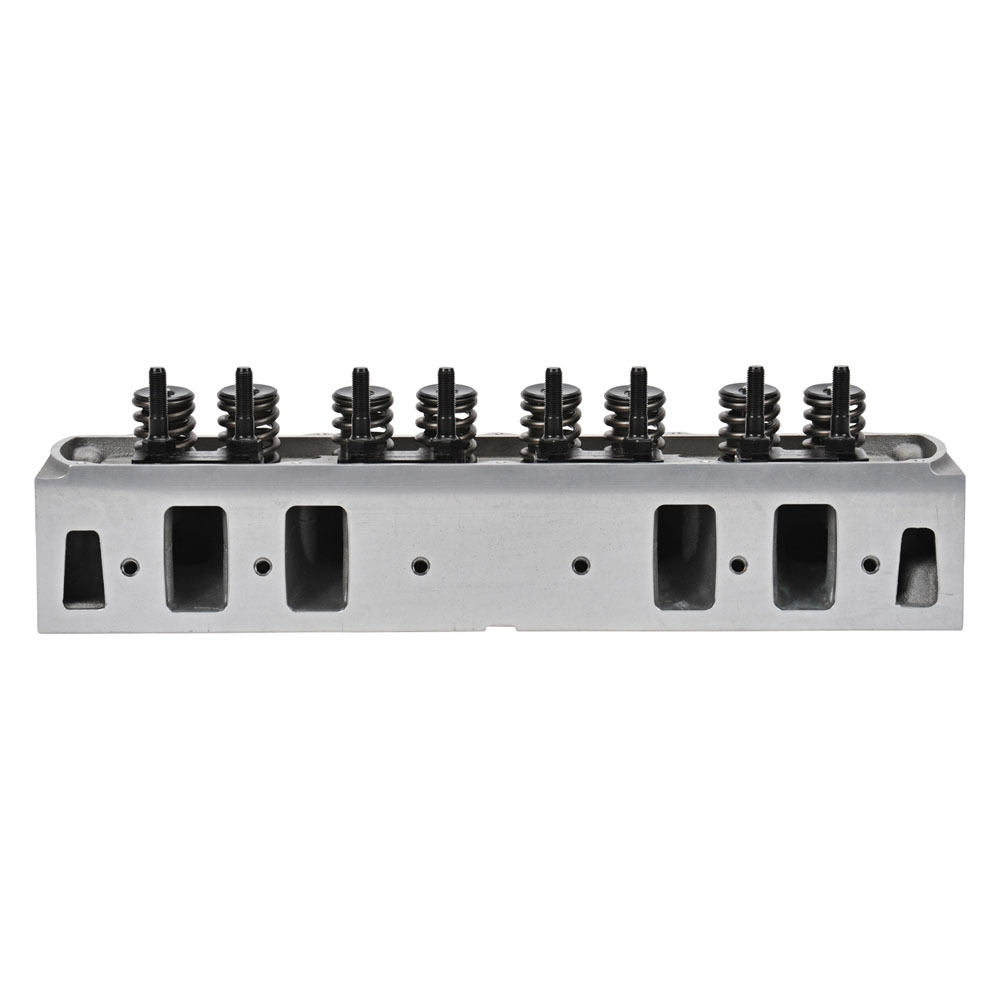

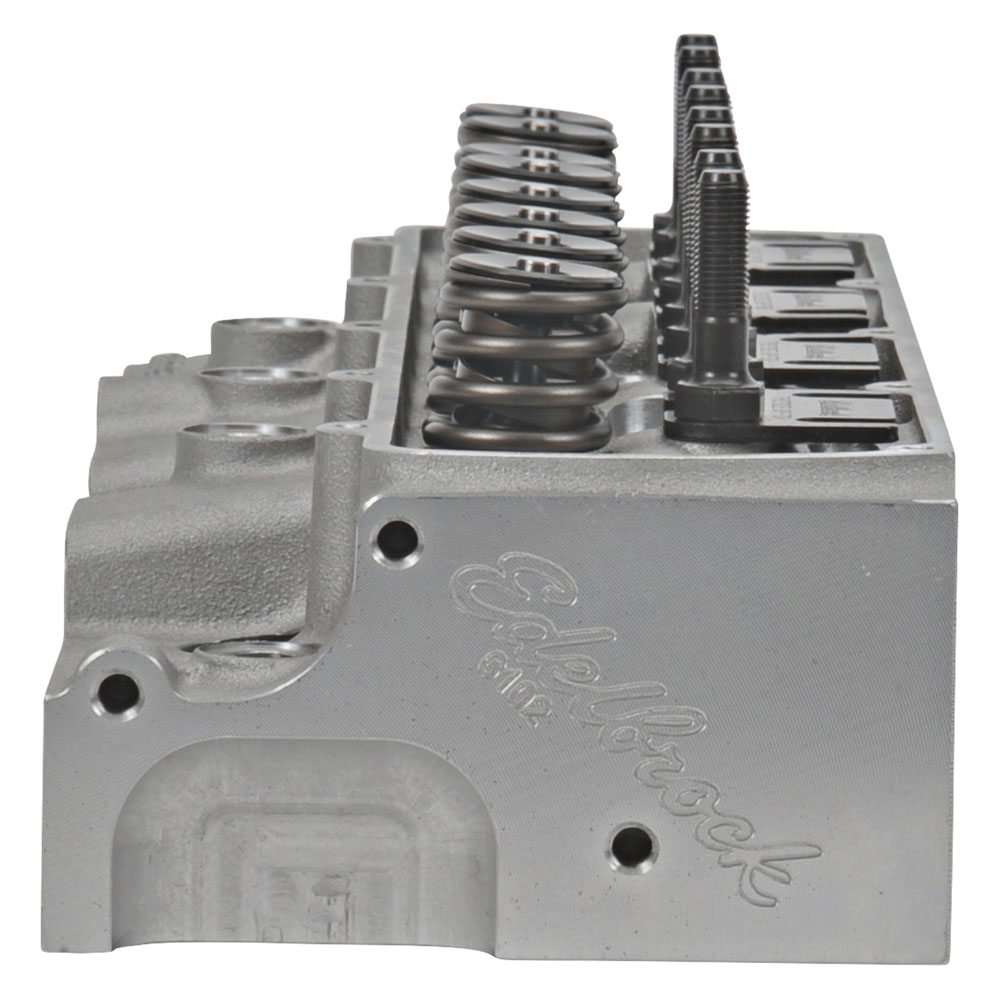

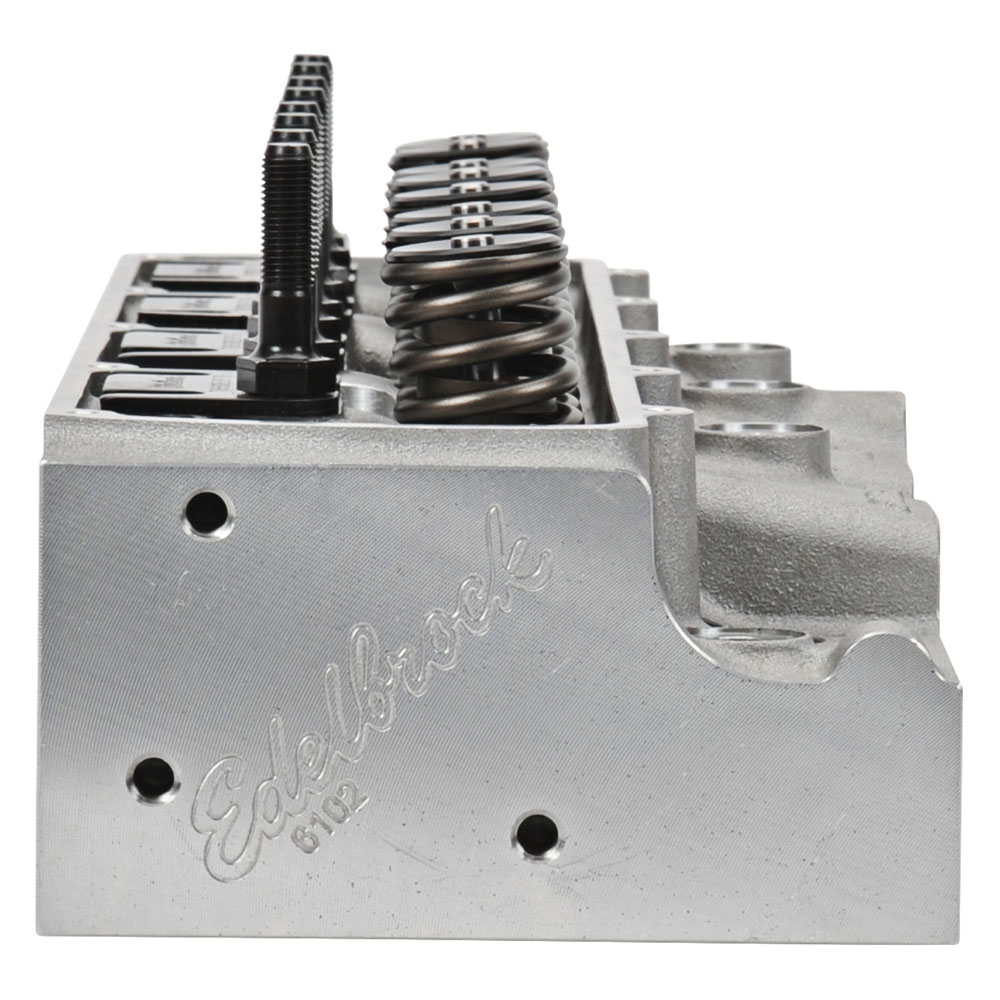

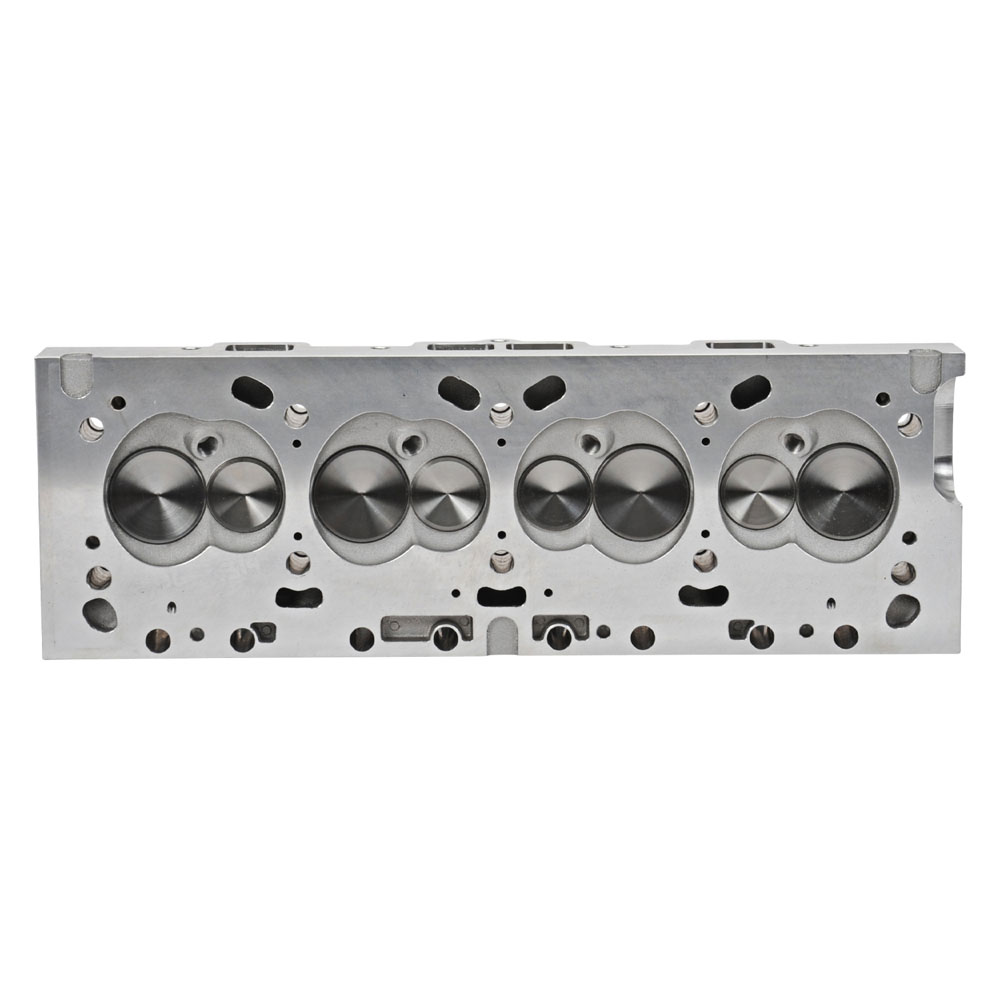

The Edelbrock #61025 Performer RPM Cylinder Head for 1965-76 Oldsmobile 400, 425 and 455 CID V8 engines with hydraulic roller cam is a perfect performance upgrade for big-block Olds-powered street machines and muscle cars. This aluminum cylinder head supersedes the 60515 Olds head and features a redesigned 77cc combustion chamber, larger intake valves and refined bowl blending for improved flow. The #61025 Performer RPM head has improved accommodation for a factory-style mechanical fuel pump with spark plug locations moved slightly towards the exhaust valve for optimized combustion. Intake and exhaust ports have been improved over previous designs, and extra material has been added above the intake port for head work. Performer RPM #61025 heads are cast and machined by Edelbrock in the USA and comes complete with the highest quality intake and exhaust valves and valve springs.
Specifications
- Cylinder Head Assembly Series:
- Performer RPM
- Make:
- Oldsmobile
- Engine:
- 400 to 455
- Material:
- Aluminum
- Combustion Chambers:
- 77cc
- Intake Valve Diameter:
- 2.150 in.
- Exhaust Valve Diameter:
- 1.680 in.
- Intake Runners:
- 218cc
- Exhaust Runners:
- 128cc
- Port Style:
- Rectangular
- Cam Type Recommended:
- Hydraulic Roller
- Max Valve Lift:
- 0.600 in.
- Valve Spring OD:
- 1.460 in.
- Valve Spring Retainer Material:
- Steel
- Valve Material:
- Stainless Steel
- Quantity:
- Sold as Each
