Edelbrock Cylinder Head Assembly 60119; Performer RPM 185.00 cc Aluminum 54 cc for AMC 343 to 401
$1,312.50
This item has a $78.14 oversized shipping charge.
See our shipping policy for more details.
Details
- Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
- Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Product Description

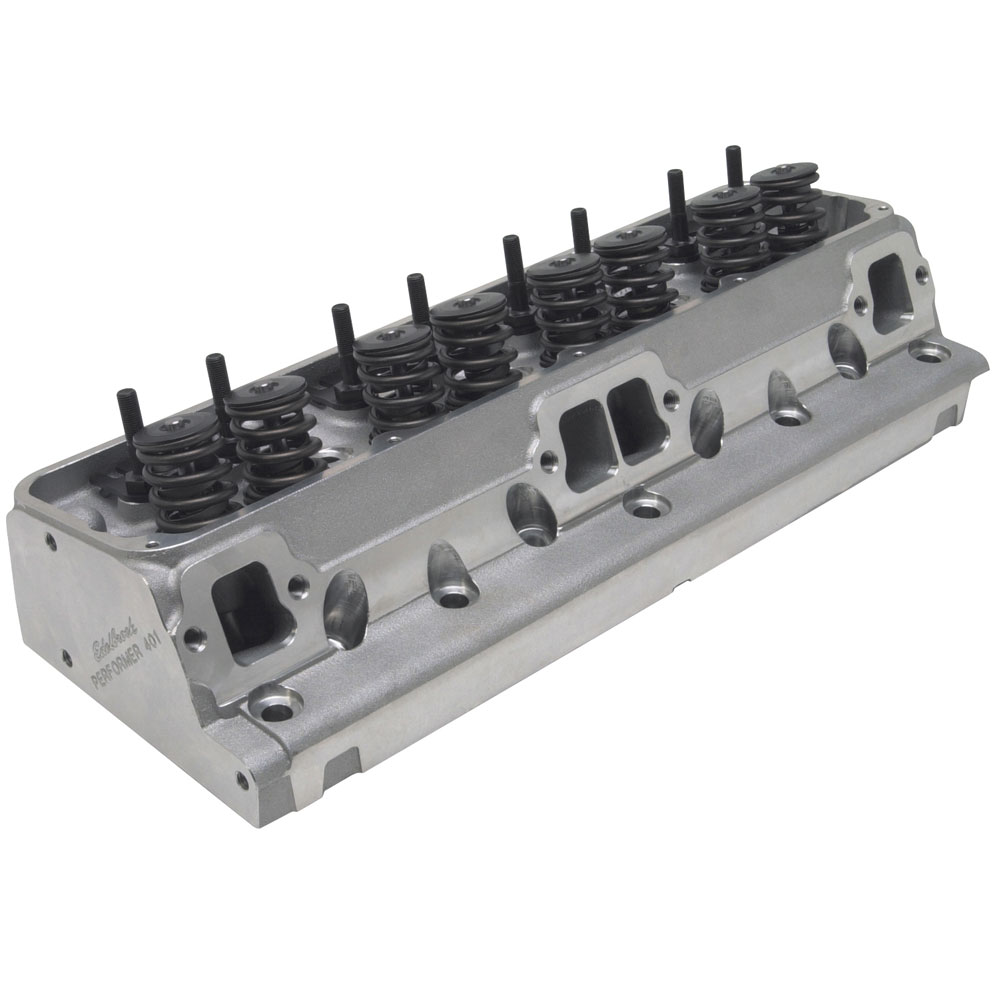

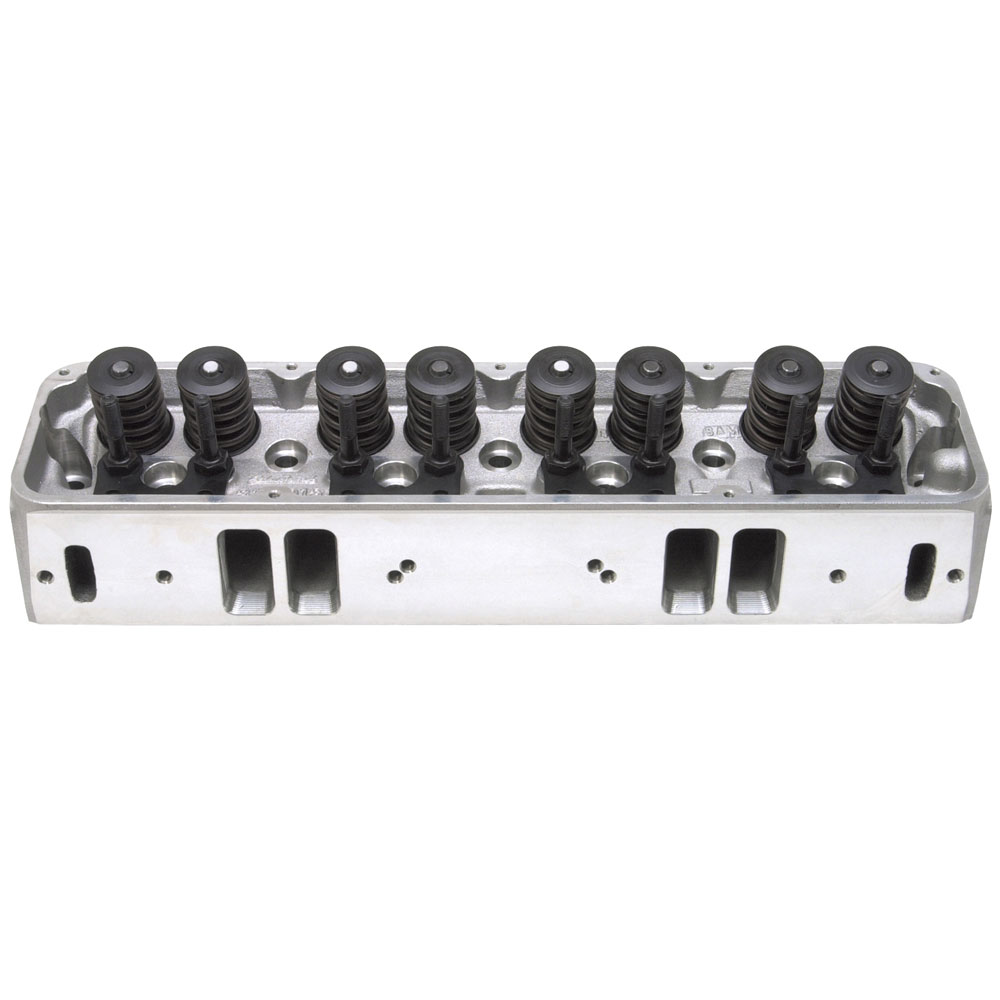

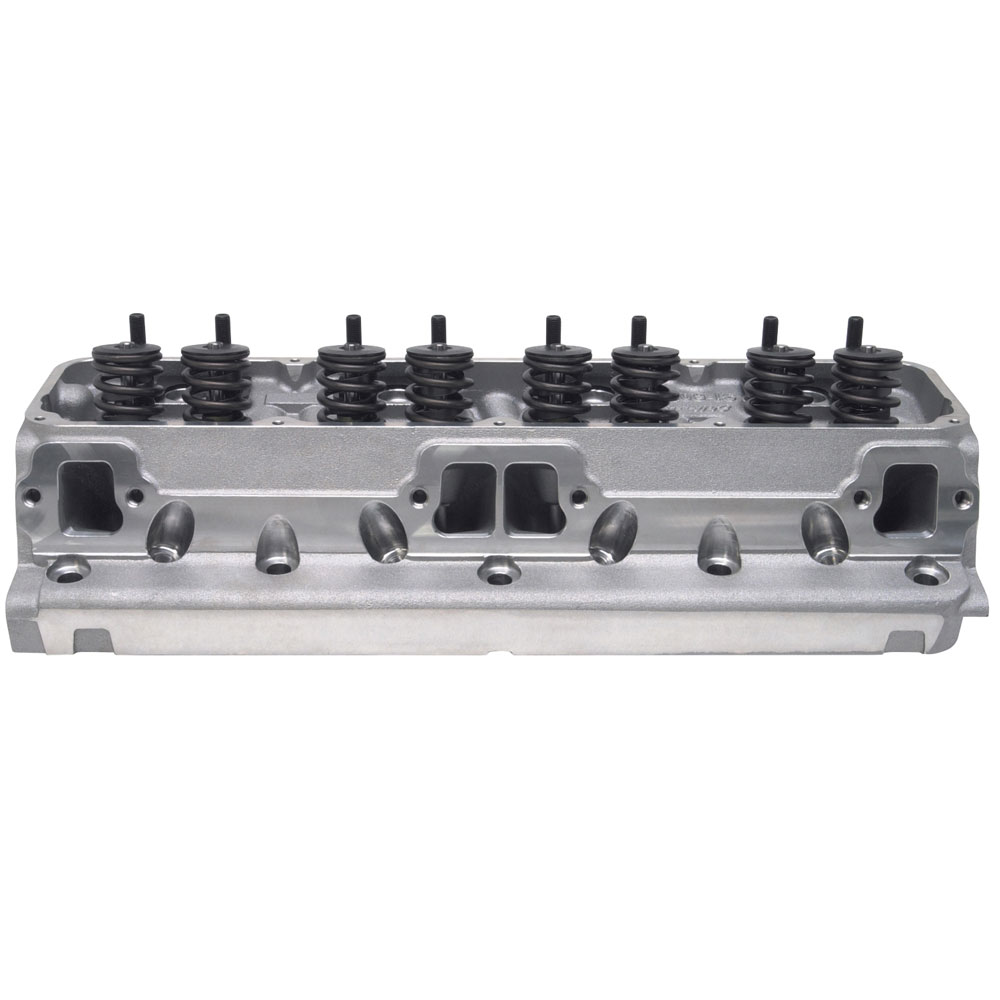

The Edelbrock #60119 Performer RPM cylinder head is designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. A Complete head includes larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, This head includes step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45deg intake seat angle offers improved mid- to high-lift flow over the stock 30deg angle.
Specifications
- Engine Cylinder Head Assembly Model or Series:
- Performer RPM
- Make:
- AMC
- Engine:
- 343 to 401
- Material:
- Aluminum

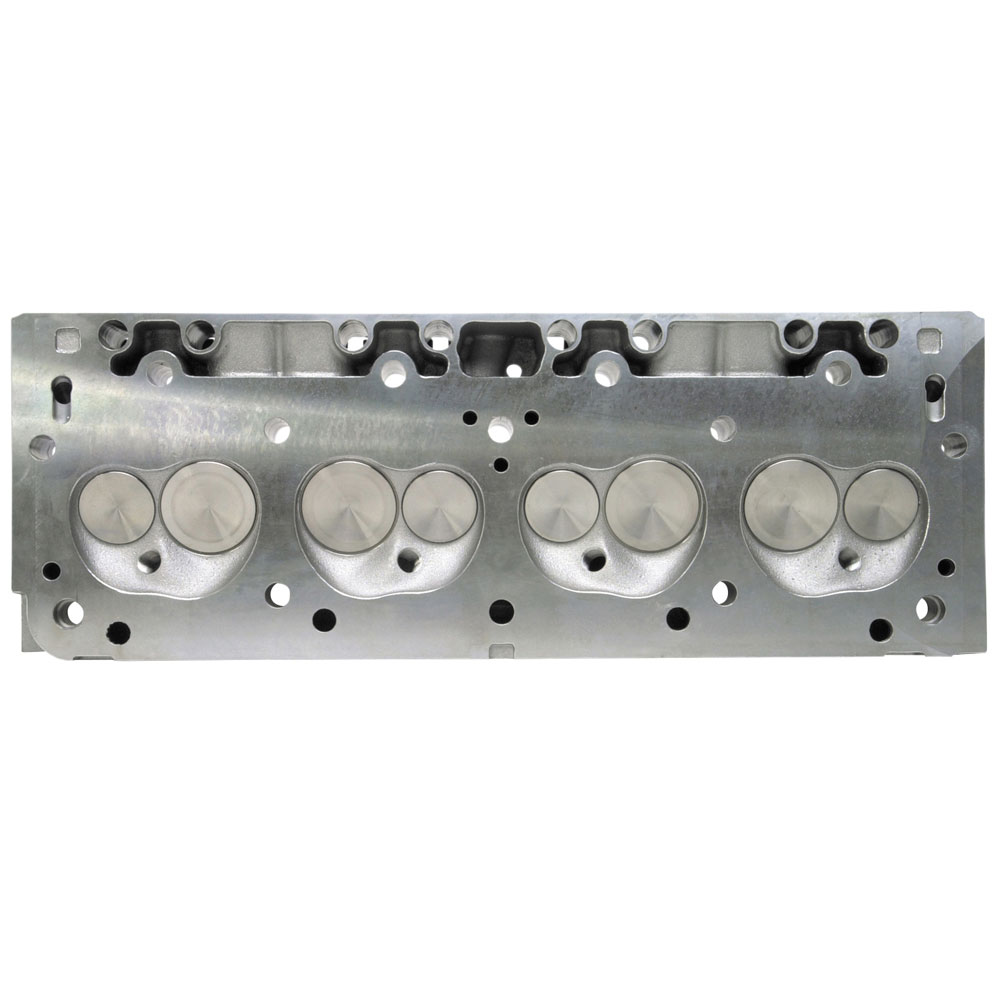

- Combustion Chambers:
- 54 cc
- Intake Valve Diameter:
- 2.020 in.
- Exhaust Valve Diameter:
- 1.600 in.
- Spark Plug Angle:
- Straight
- Intake Runners:
- 185.00 cc
- Exhaust Runners:
- 70.00 cc
- Port Style:
- Stock
- Cam Type Recommended:
- Hydraulic Flat tappet
- Max Valve Lift:
- 0.580 in.
- Valve Spring Retainer Material:
- Steel
- Valve Material:
- Stainless Steel
- Quantity:
- Sold As Each
