Eagle Connecting Rods CRS68003D; H-Beam 6.800 in. Bushed for Chevy, Ford 396 to 454, 429 to 460, Pontiac 400 to 455
$575.16
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Service: Eagle connecting rods and cranks are designed and manufactured to our specifications. Some simply purchase generic products and package in their boxes without having any control or input in production. Eagle uses only certified steel in production of their steel cranks and rods. No shortcuts are taken that might compromise the quality of the finished piece. We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product. While Eagle may not be the least expensive
- ARP 8740 capscrew rod bolts for proven reliability.
Product Description

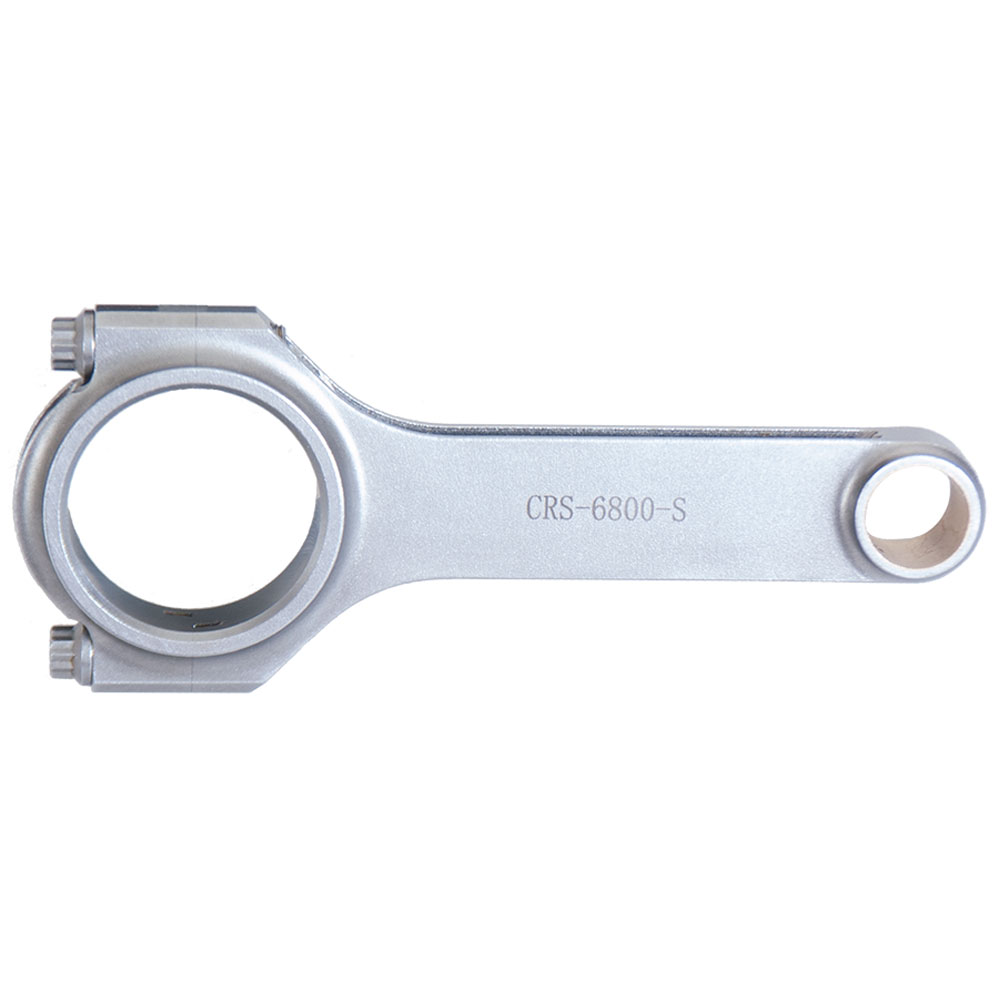

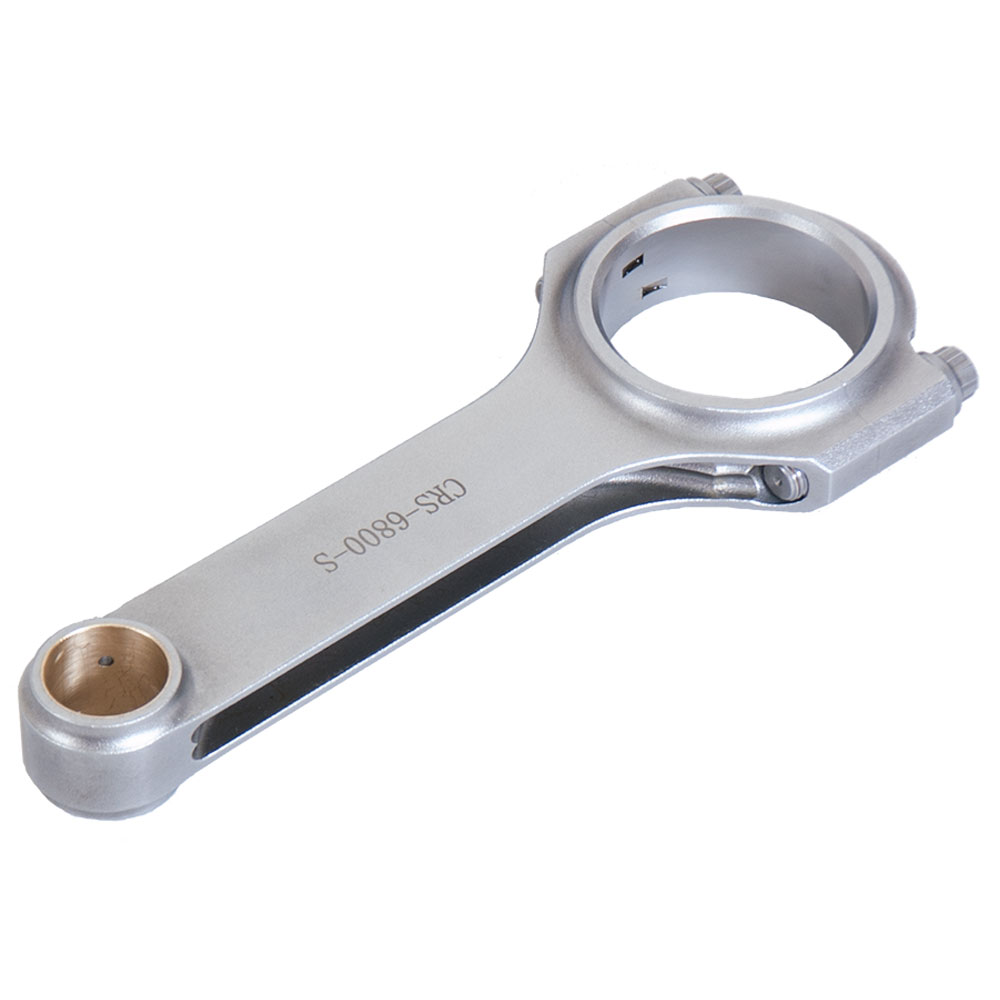

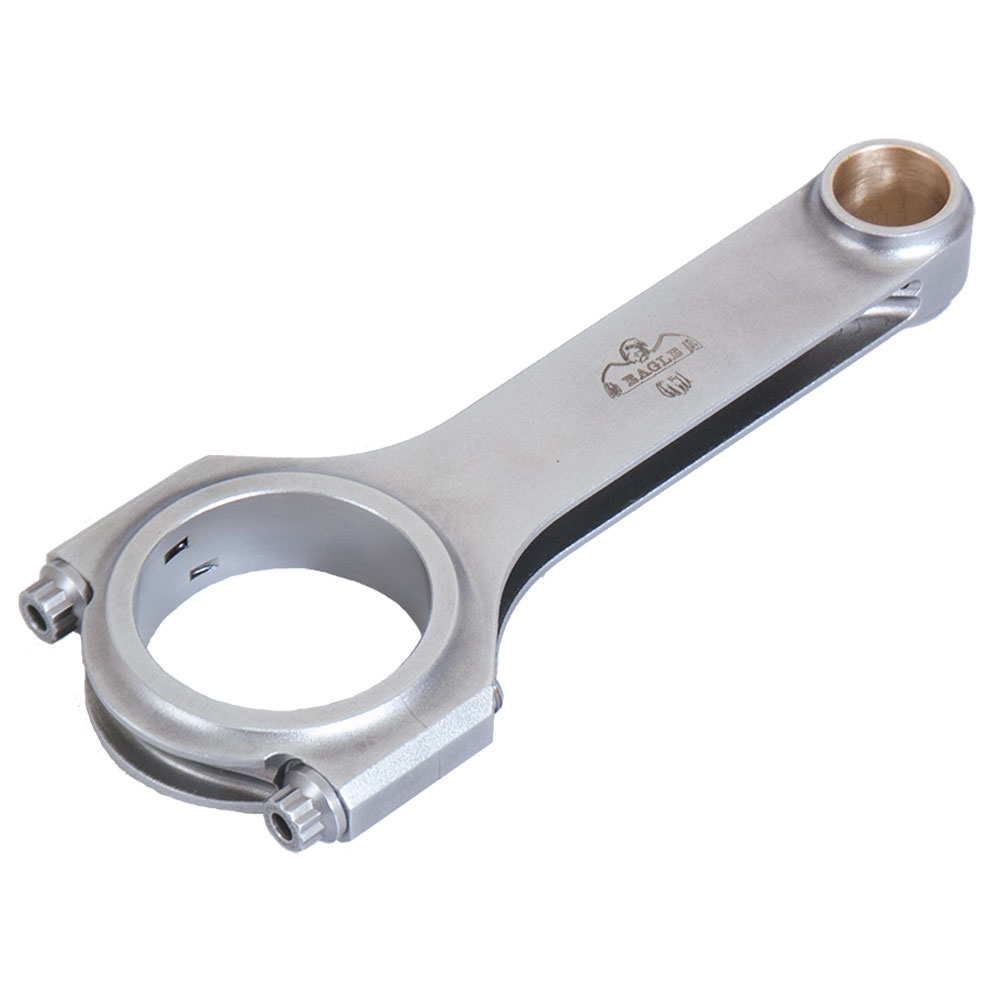

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Specifications
- Make:
- Chevy, Ford
- Engine:
- 396 to 454, 429 to 460, Pontiac 400 to 455
- Beam Style:
- H-Beam
- Rod Length:
- 6.800 in.
- Material:
- Forged 4340 Steel
- Weight:
- 805 g
- Rod Journal Diameter:
- 2.200 in.
- Wrist Pin Diameter:
- 0.990 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 7/16 in.
- Rod Bolt Material:
- ARP 8740
- Stroker Clearanced:
- No
- Big End Width:
- 0.990 in.
- Rated Horsepower:
- 850 HP
- Maximum RPM:
- 7,500 RPM
- Connecting Rod Finish:
- Shot Peened
- Big End Bore:
- 2.325 in.
- Quantity:
- Sold As Set (8/pkg)
