Eagle Connecting Rods CRS63853D; H-Beam 6.385 in. Bushed for Chevy 396 to 454
$647.06
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Service: Eagle connecting rods and cranks are designed and manufactured to our specifications.
- Eagle uses only certified steel in production of their steel cranks and rods.
- No shortcuts are taken that might compromise the quality of the finished piece.
- We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product.
Product Description

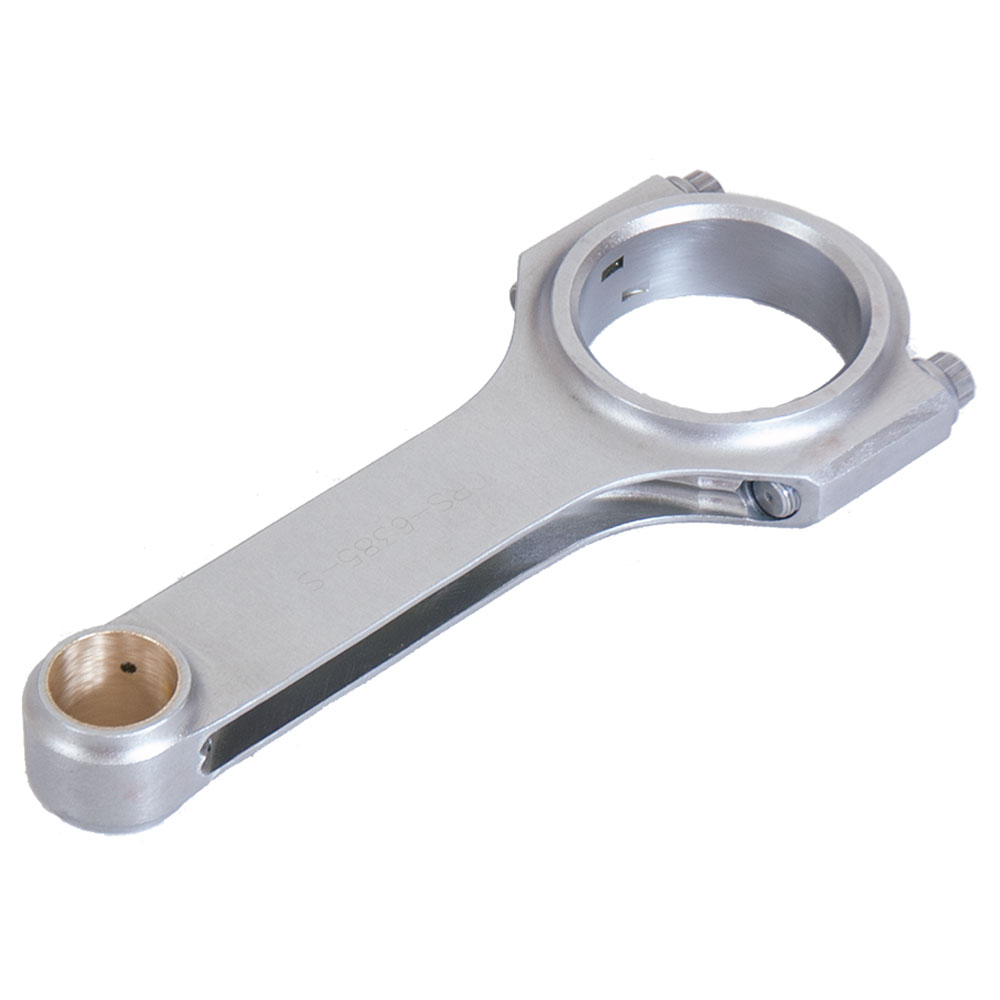

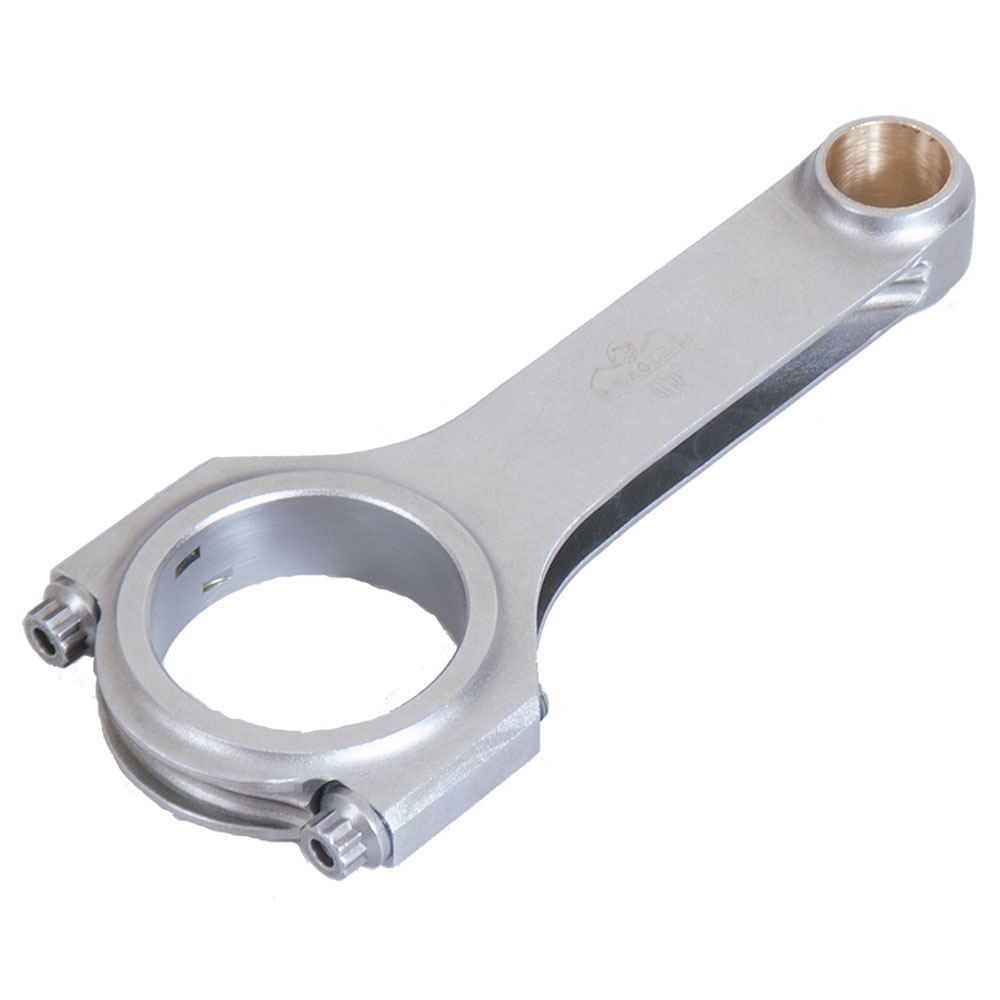

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Specifications
- Make:
- Chevy
- Engine:
- 396 to 454
- Beam Style:
- H-Beam
- Rod Length:
- 6.385 in.
- Material:
- Forged 4340 Steel
- Weight:
- 785 g
- Rod Journal Diameter:
- 2.200 in.
- Wrist Pin Diameter:
- 0.990 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 7/16 in.
- Rod Bolt Material:
- ARP 8740
- Stroker Clearanced:
- No
- Big End Width:
- 0.990 in.
- Rated Horsepower:
- 700 HP
- Maximum RPM:
- 7,500 RPM
- Connecting Rod Finish:
- Shot Peened
- Big End Bore:
- 2.325 in.
- Quantity:
- Sold As Set (8/pkg)
