Eagle Connecting Rods CRS6125O3DL19; H-Beam 6.125 in. Bushed for GM LS
$639.77
$733.33 On Sale
Save 13%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Service: Eagle connecting rods and cranks are designed and manufactured to our specifications.
- Eagle uses only certified steel in production of their steel cranks and rods.
- No shortcuts are taken that might compromise the quality of the finished piece.
- We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product.
Product Description

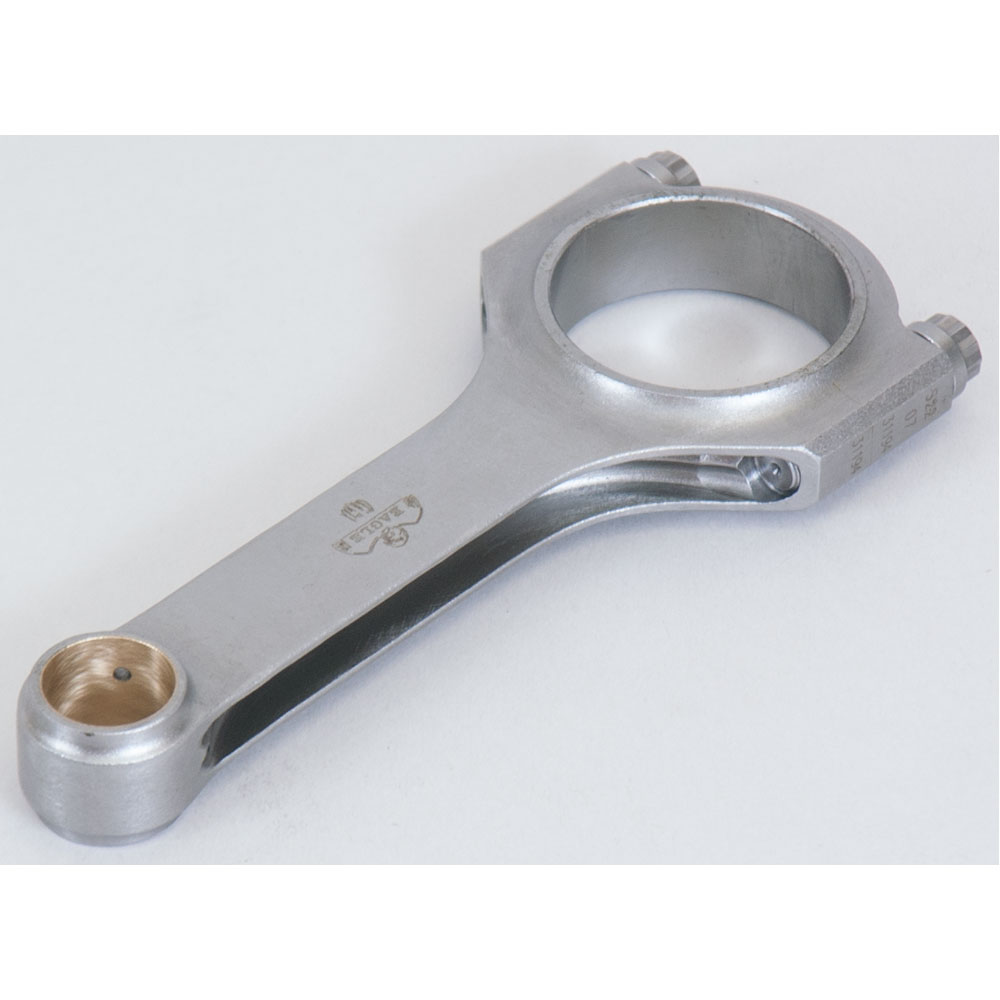

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP L19 bolts for the ultimate in power-handling capability. Recommended for competition use.
Specifications
- Make:
- GM
- Engine:
- LS
- Beam Style:
- H-Beam
- Rod Length:
- 6.125 in.
- Material:
- Forged 4340 Steel
- Rod Journal Diameter:
- 2.100 in.
- Wrist Pin Diameter:
- 0.927 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 7/16 in.
- Rod Bolt Material:
- ARP L19
- Stroker Clearanced:
- No
- Big End Width:
- 0.940 in.
- Big End Bore:
- 2.225 in.
- Quantity:
- Sold As Set (8/pkg)
