Eagle Connecting Rods CRS5700B3D; H-Beam 5.700 in. Bushed for Chevy 262 to 400
$489.99
$614.38 On Sale
Save 20%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Service: Eagle connecting rods and cranks are designed and manufactured to our specifications.
- Eagle uses only certified steel in production of their steel cranks and rods.
- No shortcuts are taken that might compromise the quality of the finished piece.
- We use multi-stage heat treating, sonic testing, magna-fluxing, and x-ray to ensure a reliable product.
Product Description

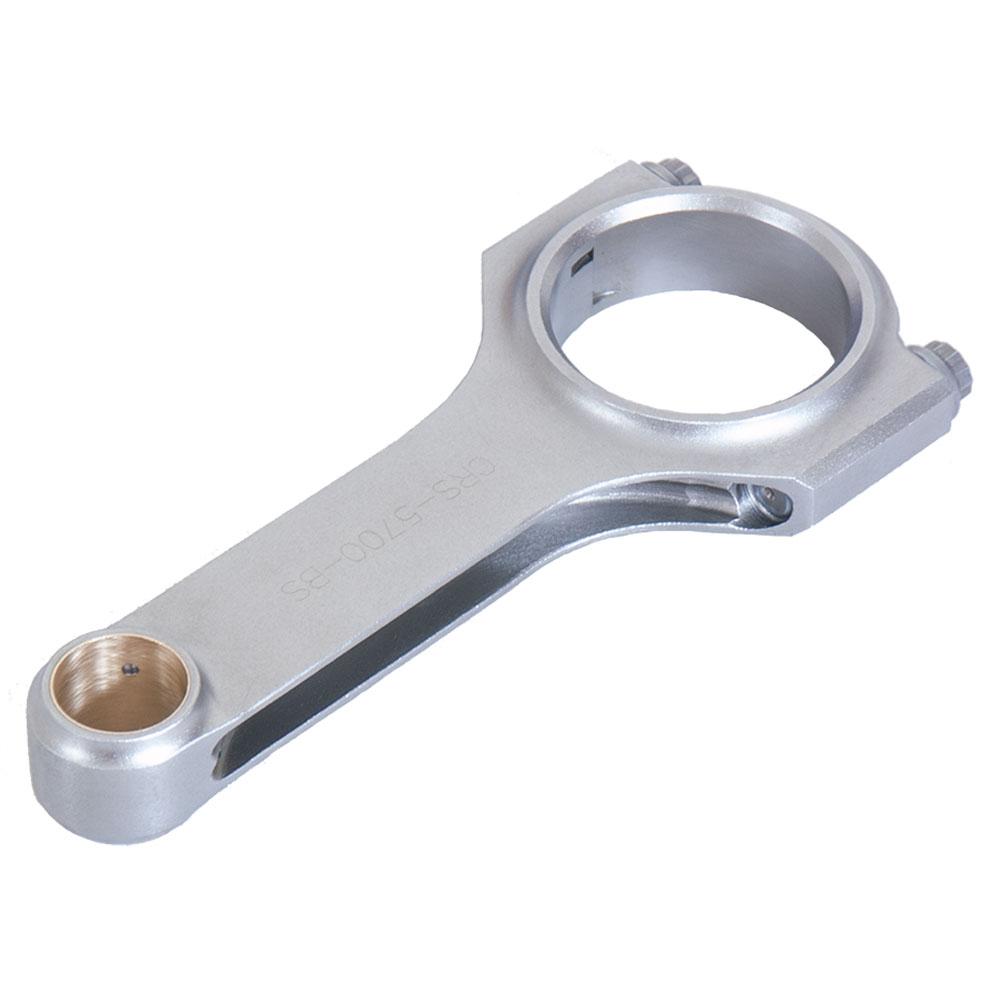

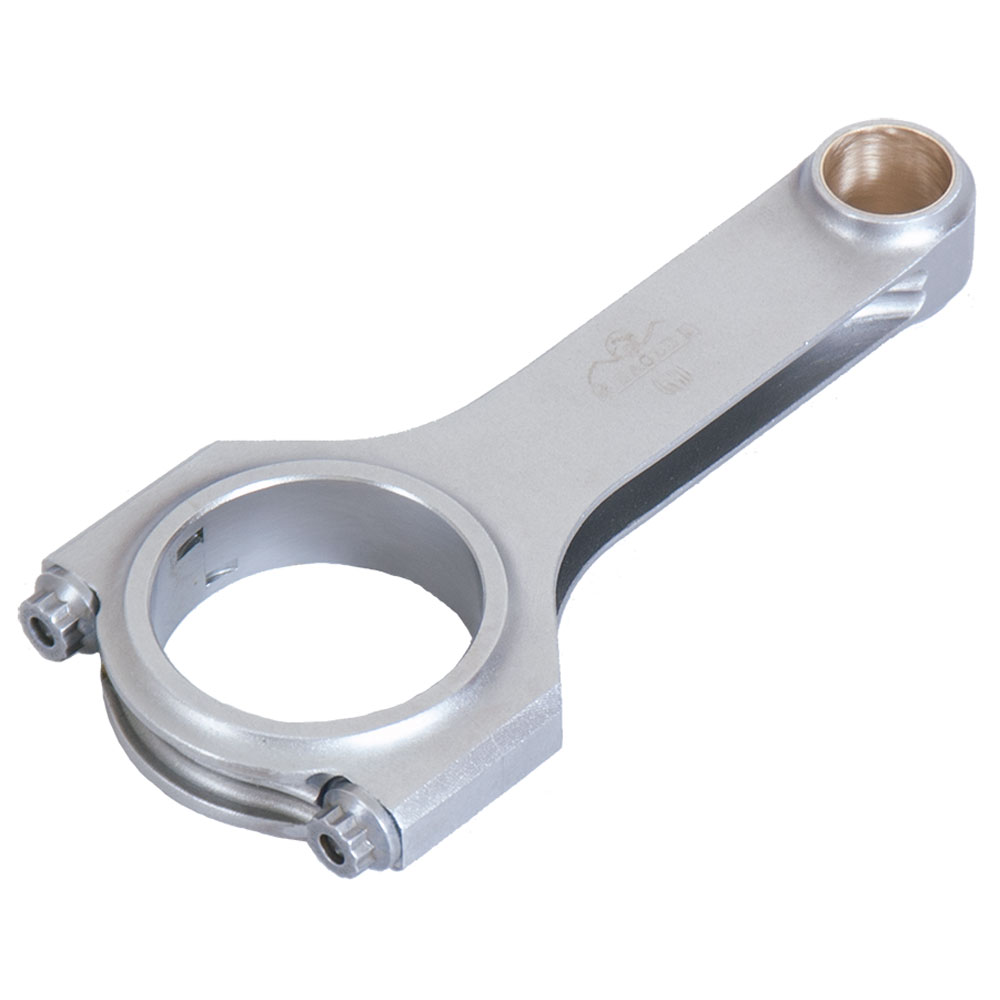

Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Recommended for competition use.
Specifications
- Make:
- Chevy
- Engine:
- 262 to 400
- Beam Style:
- H-Beam
- Rod Length:
- 5.700 in.
- Material:
- Forged 4340 Steel
- Weight:
- 630 g
- Rod Journal Diameter:
- 2.100 in.
- Wrist Pin Diameter:
- 0.927 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 7/16 in.
- Rod Bolt Material:
- ARP 8740
- Stroker Clearanced:
- No
- Big End Width:
- 0.940 in.
- Rated Horsepower:
- 700 HP
- Maximum RPM:
- 7,500 RPM
- Connecting Rod Finish:
- Shot Peened
- Big End Bore:
- 2.225 in.
- Quantity:
- Sold As Set (8/pkg)
