Derale Transmission Oil Pan 14207; Cooling Pan Black Steel for Chevy 4L80E

$255.98

Part #: 14207

Brand: Derale

UPC: 083277142079

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity

Product Description

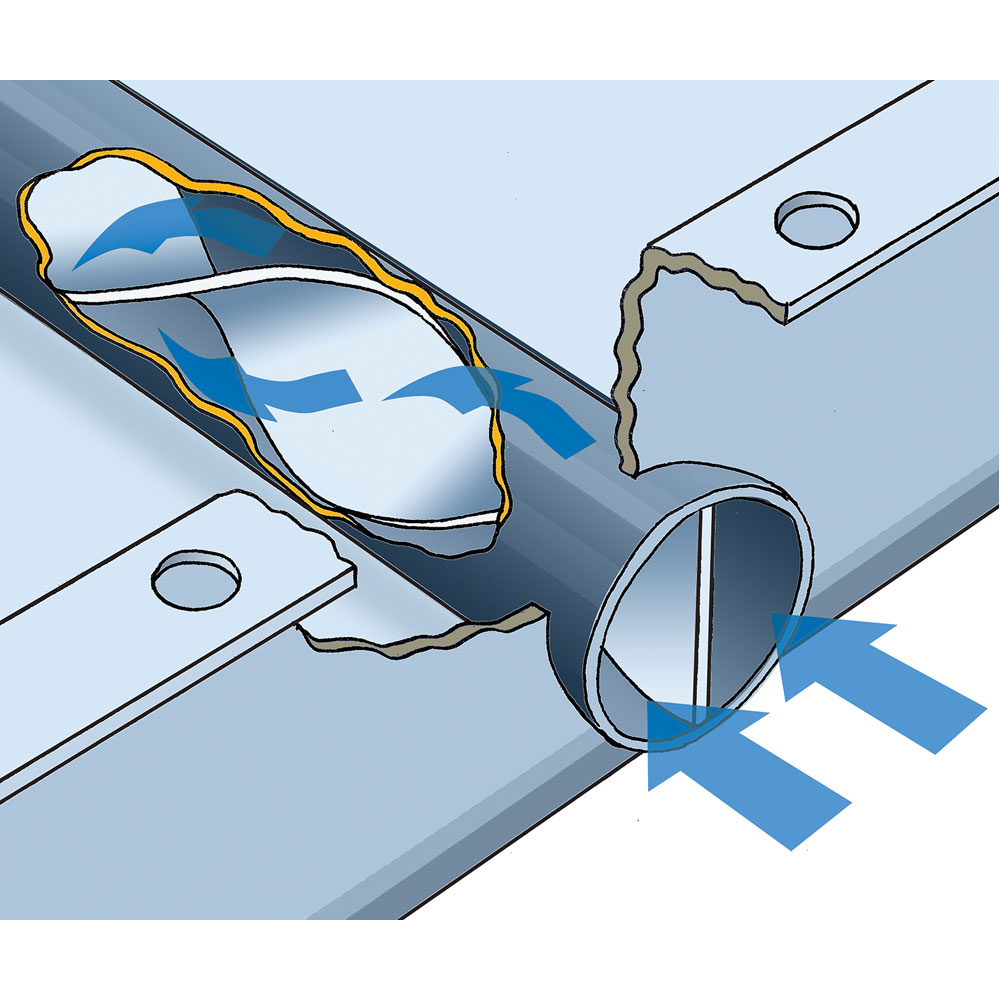

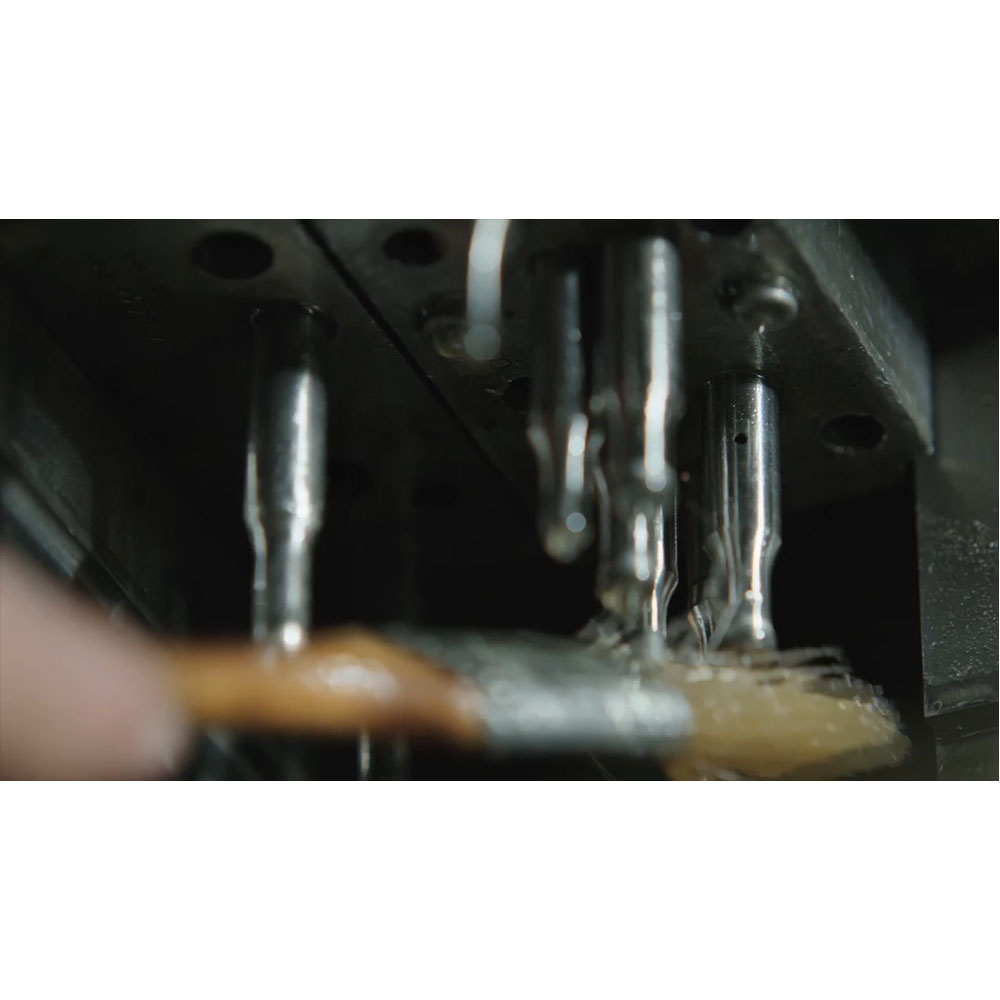

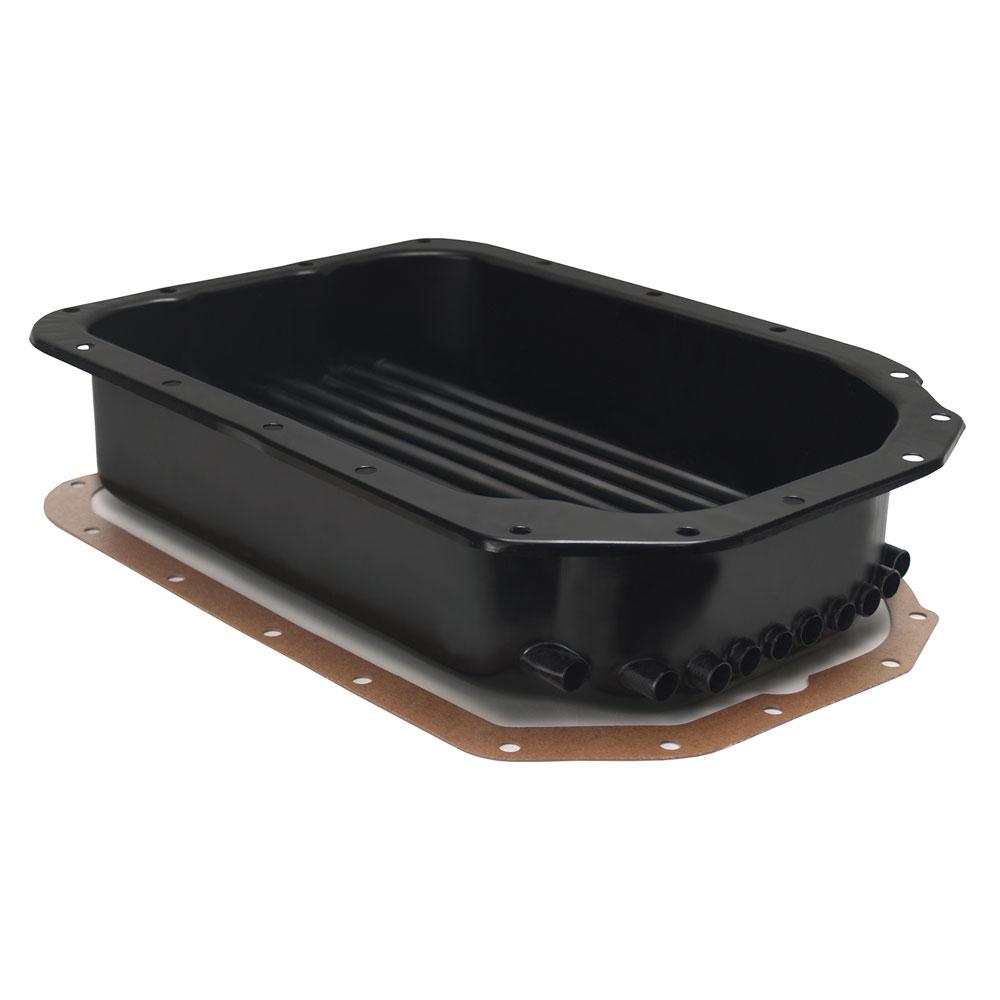

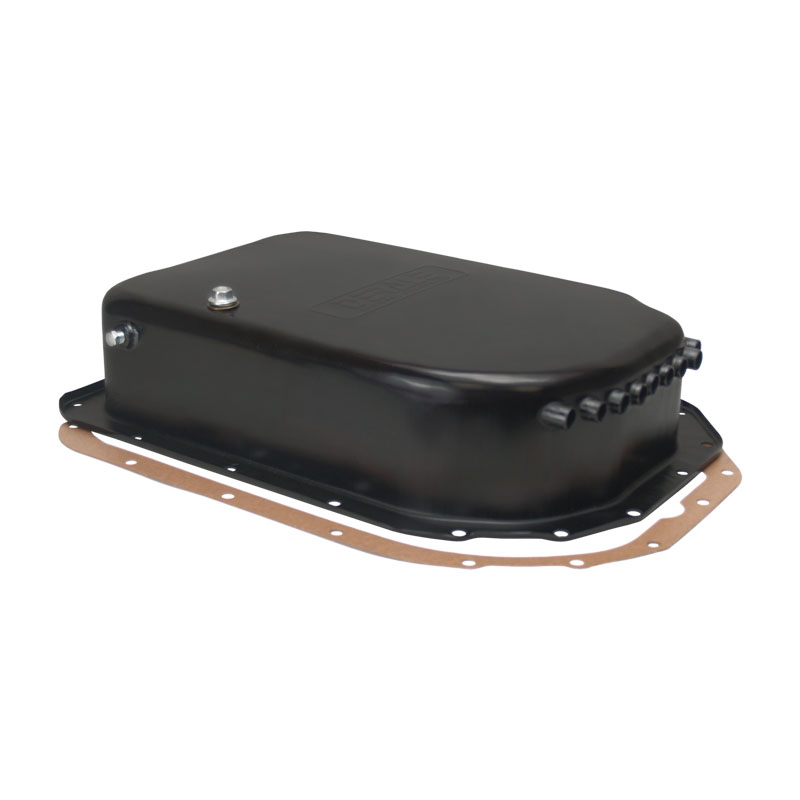

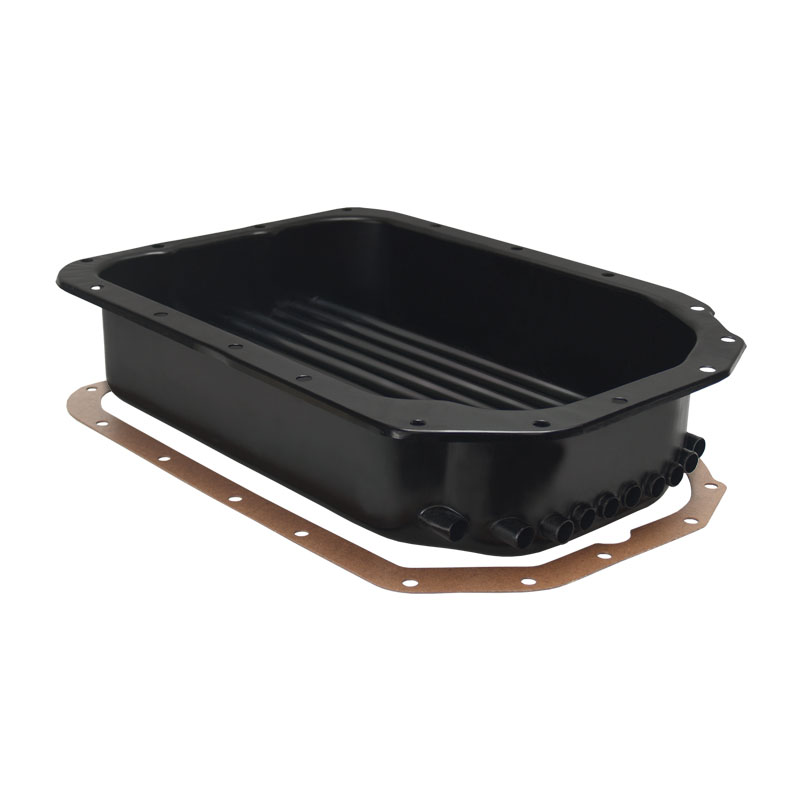

Derale's Transmission Cooling Pan #14207 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Specifications

Transmission Oil Pan Series:
Cooling Pan
Make:
Chevy
Transmission:
4L80E
Capacity Increase:
4 Quarts 16 oz.
Material:
Steel
Finish:
Black

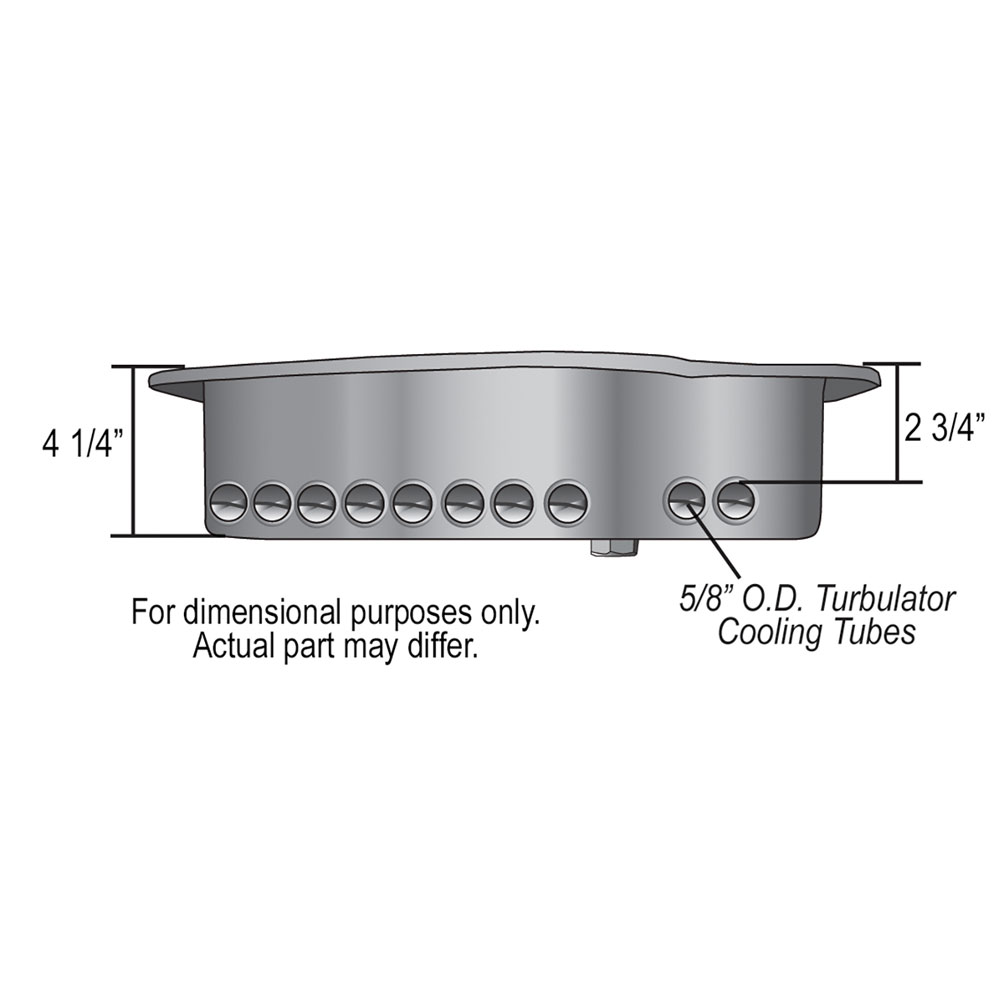

Depth:
4.063 in.
Includes Filter Extension:
No
Includes Gasket:
Yes
Includes Filter:
No
Includes Fasteners:
No
Includes Drain Plug:
Yes
Notes:
Also includes 1/8 in. NPT Temp sensor bung
Quantity:
Sold As Each

Videos

Tech Resources

  • DERDER14207.pdf
