Derale Transmission Oil Pan 14204; Cooling Pan Black Steel for GM 700R4, 4L60, 4L60E
$227.59
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity
Product Description

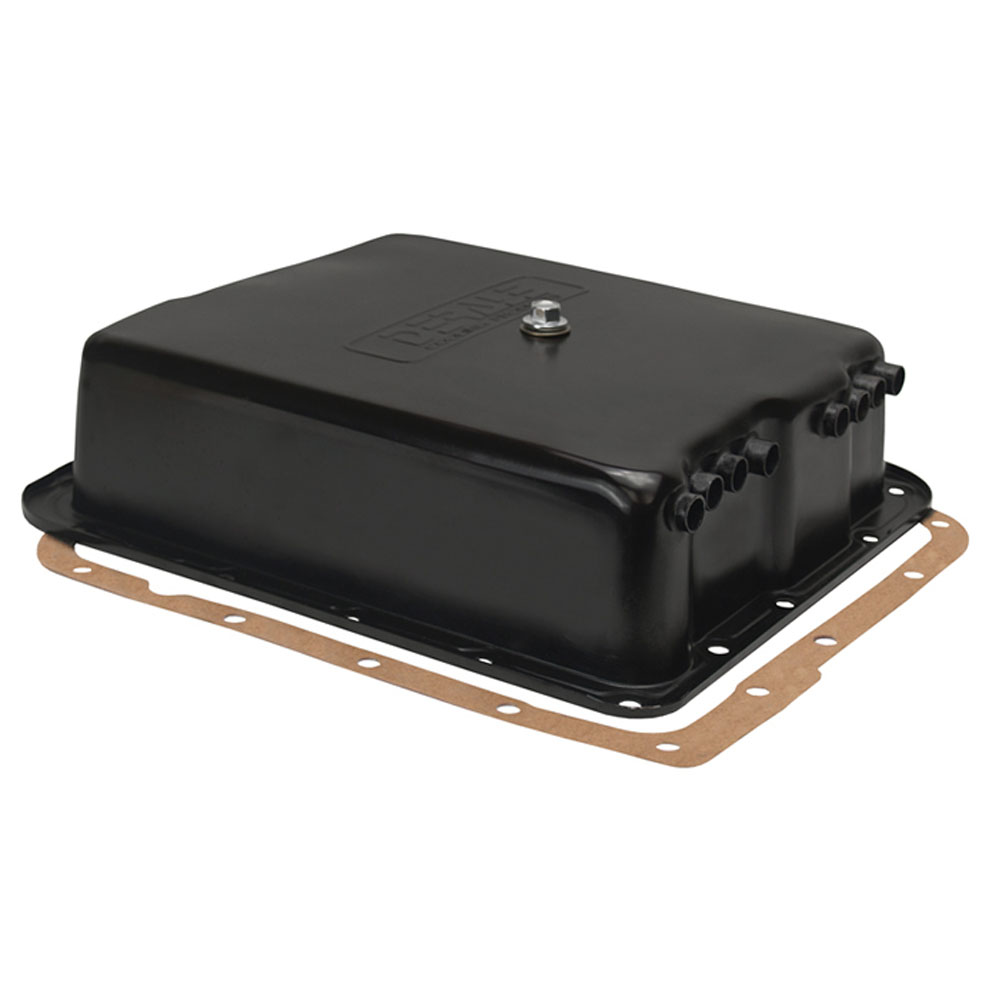

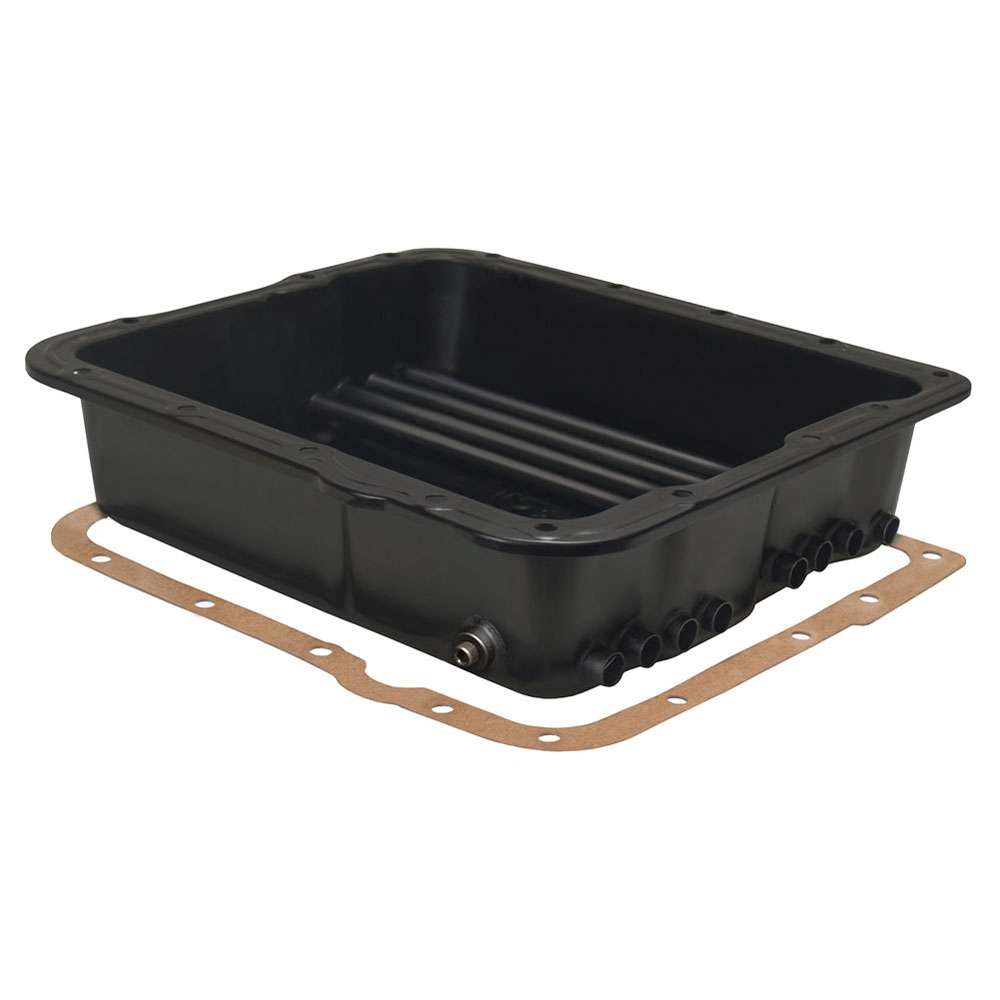

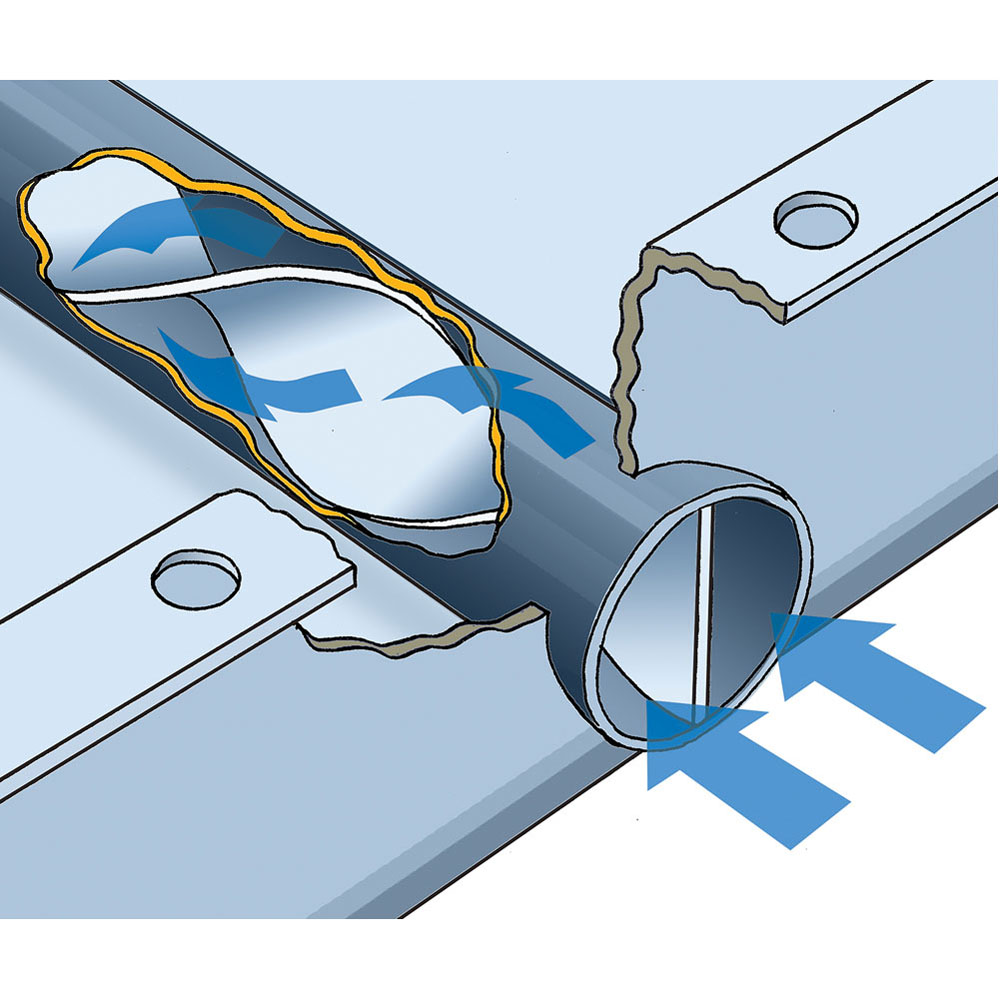

Derale's Transmission Cooling Pan #14204 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's popular 700R4/4L60 & 4L60E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Specifications
- Transmission Oil Pan Series:
- Cooling Pan
- Make:
- GM
- Transmission:
- 700R4, 4L60, 4L60E
- Capacity Increase:
- 2.25 Quarts
- Material:
- Steel
- Finish:
- Black

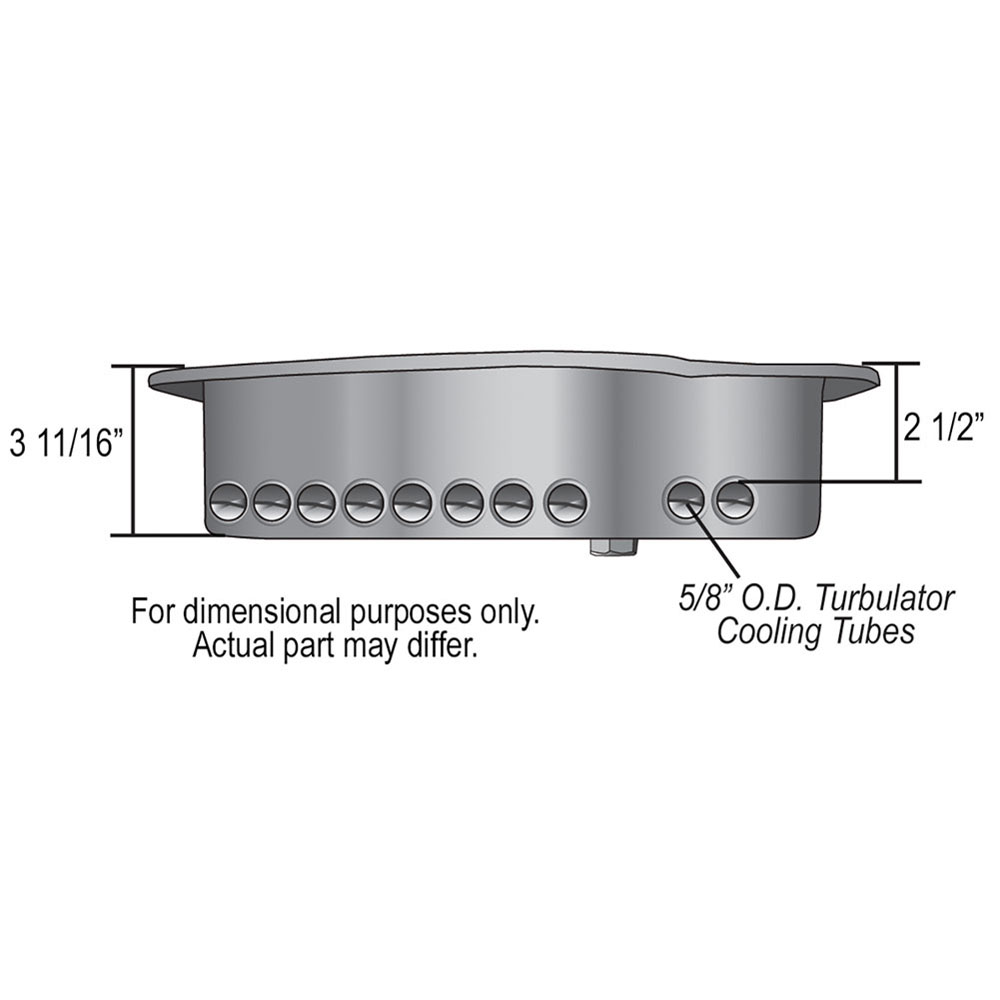

- Depth:
- 3.625 in.
- Includes Filter Extension:
- No
- Includes Gasket:
- Yes
- Includes Filter:
- No
- Includes Fasteners:
- No
- Includes Drain Plug:
- Yes
- Notes:
- Also includes 1/8 in. NPT Temp sensor bung
- Quantity:
- Sold As Each
