Derale Transmission Oil Cooler Kit 13503; Series 8000 10.125 in. 19 Row Aluminum Plate and Fin
$112.40
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

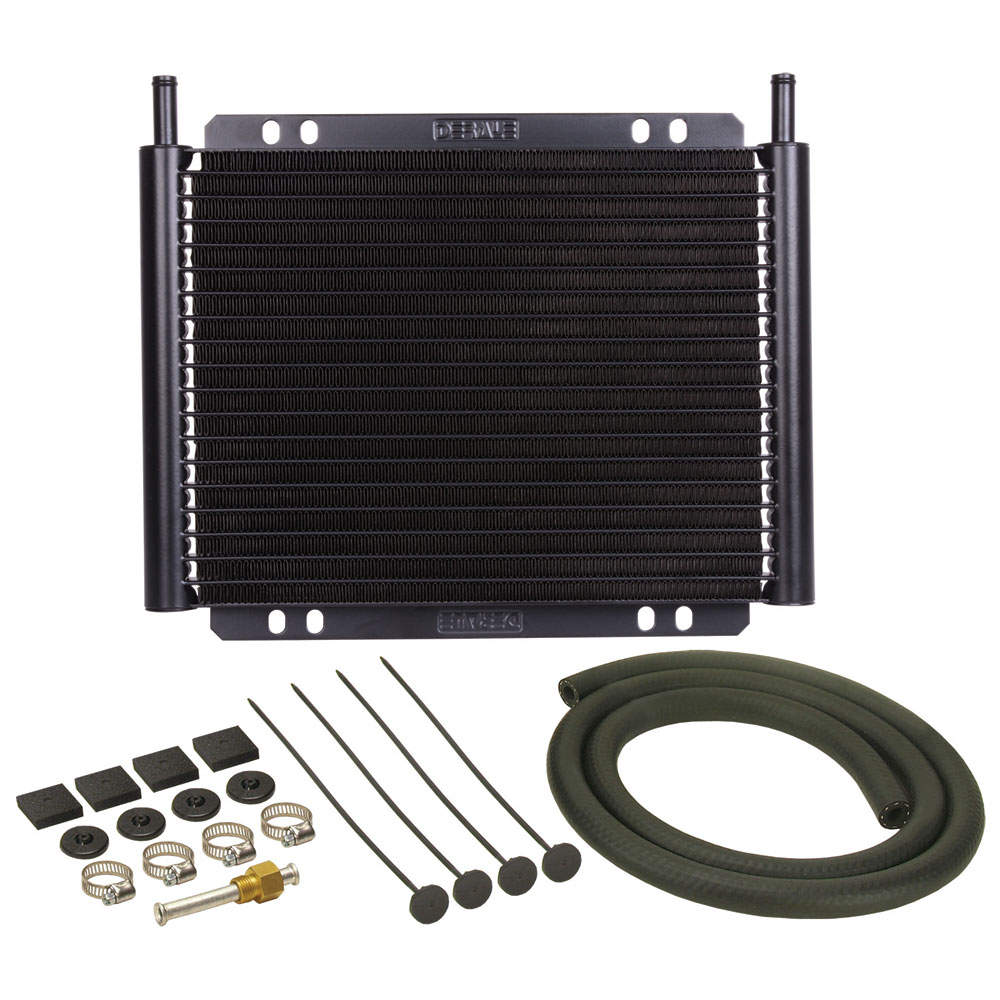

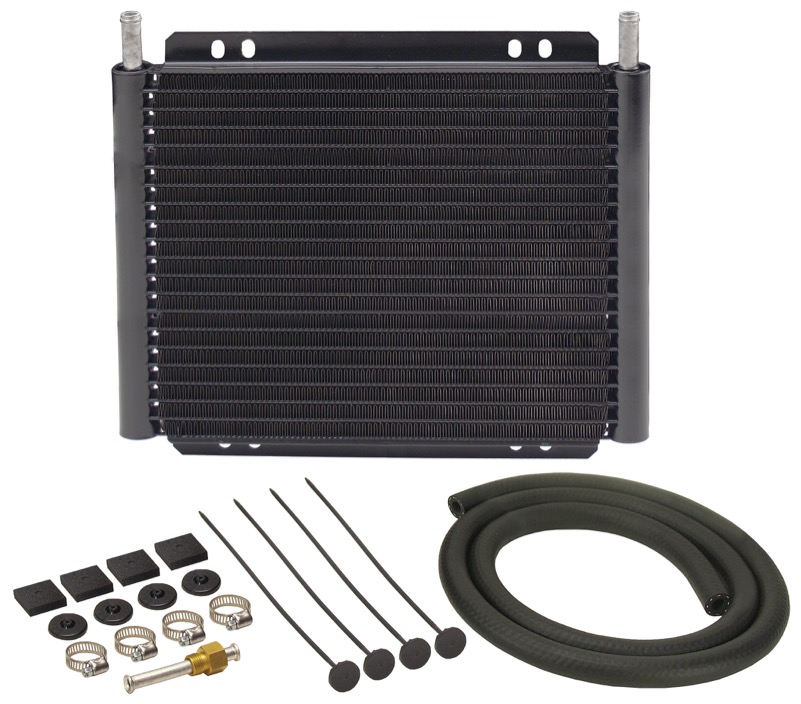

- 19 Row Series 8000 Plate & Fin Transmission Cooler Kit, 11/32"
Product Description
A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Transmission Oil Cooler Kit Series:
- Series 8000
- Cooler Style:
- Plate and Fin
- Construction:
- Aluminum
- Inlet Size/Type:
- 11/32 in. Hose Barb
- GVW:
- 20,500 GVW

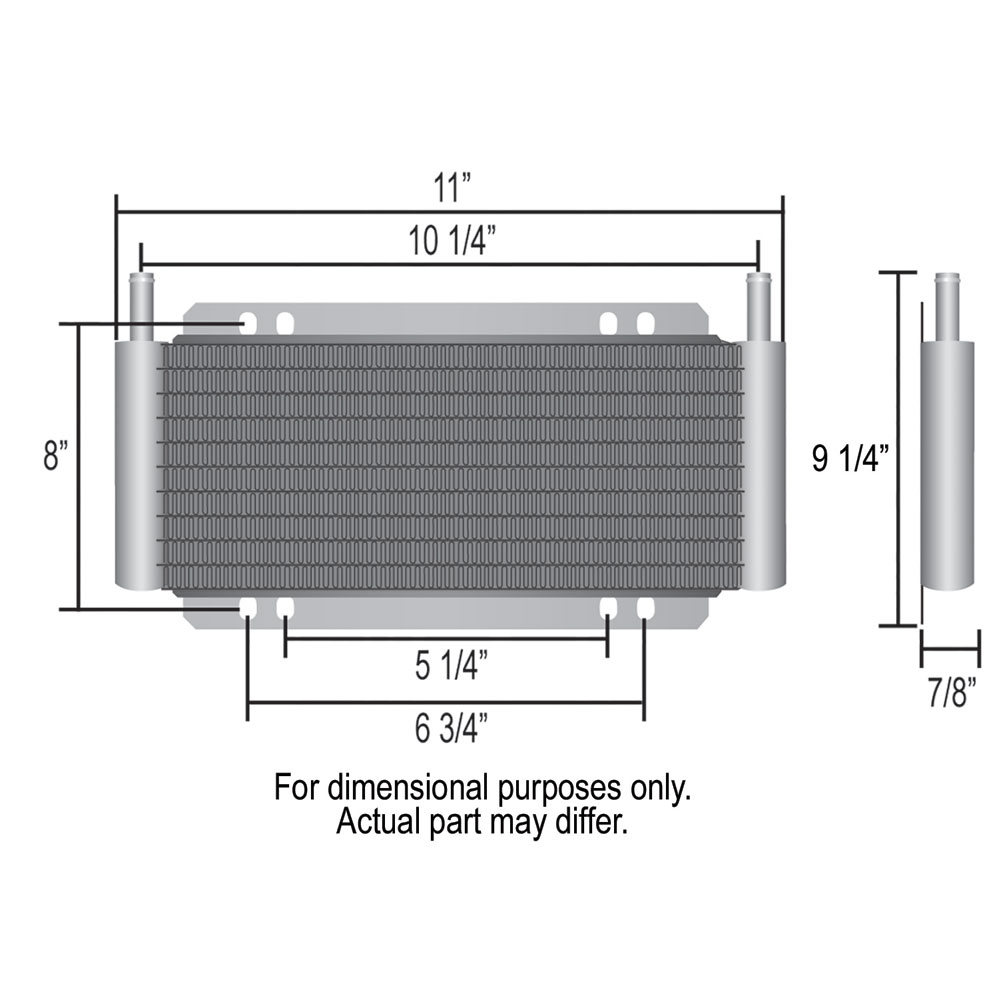

- Overall Length:
- 10.125 in.
- Overall Width:
- 9.250 in.
- Overall Depth:
- 0.875 in.
- Core Length:
- 10.250 in.
- Core Width:
- 7.500 in.
- Number of Passes:
- 19 Row
- Includes Hose:
- 11/32 in. Hose Included
- Hose Length:
- 4 ft.
- Includes Electric Fan:
- No
- Includes Mounting Hardware:
- Yes
- Finish:
- Black
- Quantity:
- Sold As Kit
