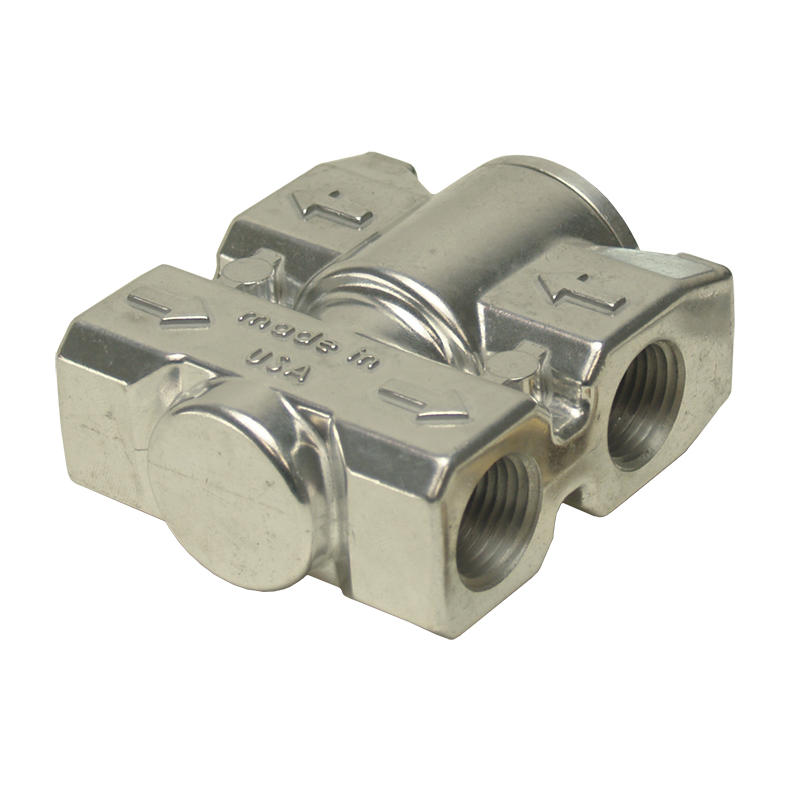

Derale Fluid Control Thermostat 25011; Fluid Control Thermostat 20 GPM 180 deg. F Bright Aluminum
$49.77
$79.11 On Sale
Save 37%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Fluid Control Thermostat, 3/8 in. NPT
Product Description
This Billet Style Cast Aluminum Fluid Control Thermostat with 3/8” NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180° to change flow direction.
Specifications
- Fluid Control Thermostat Series:
- Fluid Control Thermostat
- Material:
- Aluminum
- Finish:
- Bright
- Opening Temperature:
- 180 deg. F
- Closing Temperature:
- 180 deg. F
- Flow Rate:
- 20 GPM
- Number of Inlets:
- 2 Inlet
- Inlet Size:
- 3/8 in. NPT Female
- Number of Outlets:
- 2 Outlet
- Outlet Size:
- 3/8 in. NPT Female
- Includes Mounting Bracket:
- No
- Includes Fittings:
- No
- Notes:
- No bracket
- Quantity:
- Sold As Each
