Derale Engine Coolant Fan Temperature Switch 16789; High Amp Dual Fan Controller Fan 1, Adjustable 150 to 240 deg. Fan 2, 10 deg. Warmer Dual 3/8 in. NPT Thread In

$215.20

Part #: 16789

Brand: Derale

UPC: 083277167898

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • High Amperage Adjustable Dual Electric Fan Controller, 3/8" NPT Thread In Probe

Product Description

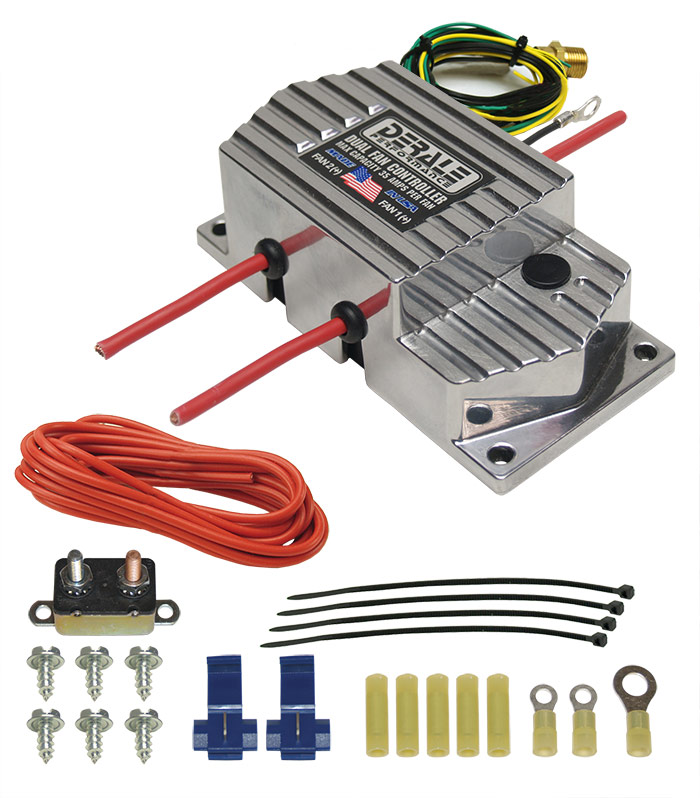

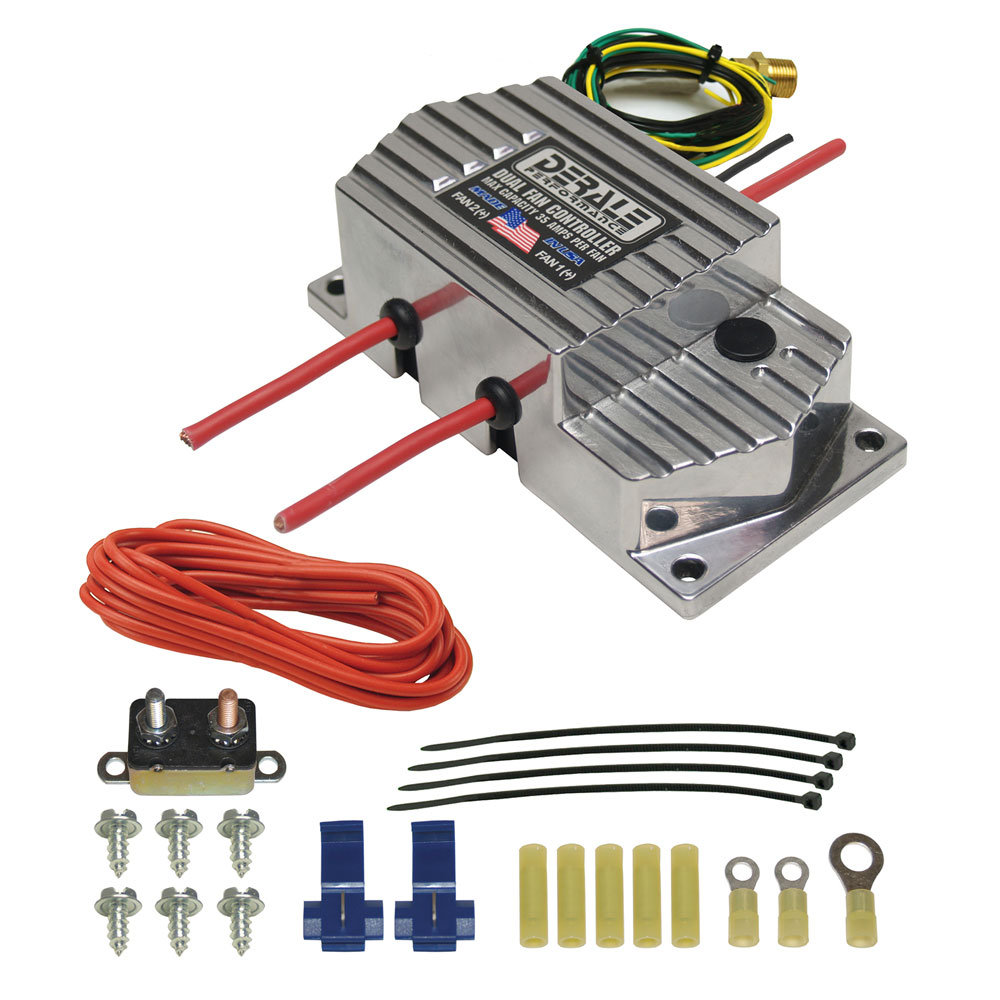

Designed with quality and performance in mind, this High Amperage Dual Fan Controller breaks new ground in the industry of electric fan controllers. 100% USA made, a bulletproof design, 35 amp per fan amperage rating, adjustability from 150°-240°F, and a die cast bright finish aluminum cap, come together to make this dual fan controller stand out from the crowd. It's capable of controlling two separate 35 amp fans at different turn-on temperatures, with only a single probe. The first electric fan will be activated at the temperature set by the user followed by the second electric fan when the temperature becomes 10°F warmer. Each electric fan will turn off at 10°F below its turn-on temperature. Kit comes complete with wiring harness, fusible link, all necessary electrical connectors and 3/8" NPT thread-in probe.

Specifications

Engine Coolant Fan Temperature Switch Series:
High Amp Dual Fan Controller
Fan On Temperature:
Fan 1, Adjustable 150 to 240 deg. Fan 2, 10 deg. Warmer
Includes Relay:
No
Includes Wiring Harness:
Yes
Includes Air Conditioning Relay:
N/A (A/C override circuit)
Sending Unit Style:
Thread In
Sending Unit Thread Size:
3/8 in. NPT
Fan Quantity:
Dual
Fan Off Temperature:
15 deg. Below Turn On Temp
Current Rating:
70 Amp
Notes:
Rated at 35 amps per fan
Quantity:
Sold As Kit

Tech Resources

  • DER16789.pdf
