Derale Electric Fan 18217; High Output Single RAD High: 2400; Low: 1800 CFM Electric 17.000 in. Skewed
$219.69
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

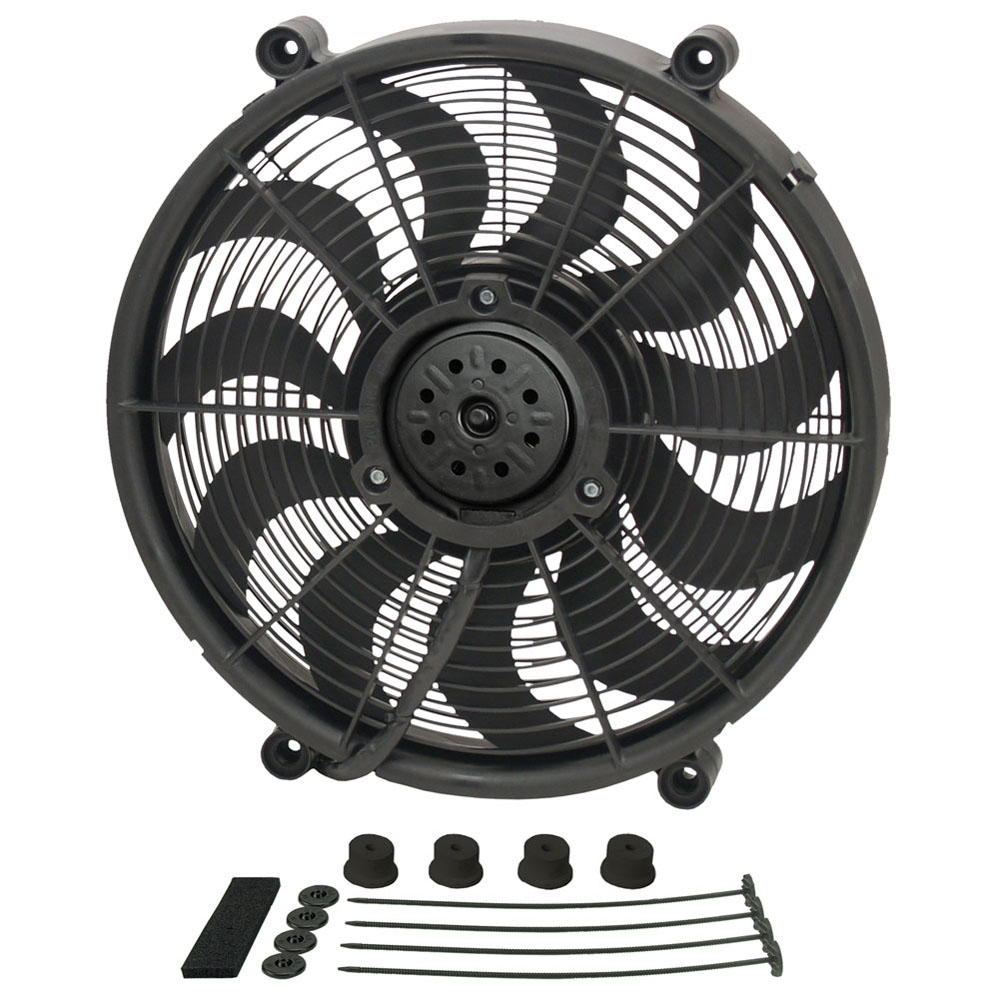

- 17" High Output Single RAD Pusher/Puller Fan with Standard Mount Kit
Product Description
Our most popular, this 17" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, it can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2400 CFM while drawing up to 23.5 amps.
Specifications
- Electric Fan Series:
- High Output Single RAD
- Fan Type:
- Electric
- Maximum CFM:
- High: 2400; Low: 1800 CFM
- Fan Diameter:
- 17.000 in.
- Blade Type:
- Skewed
- Fan Directon:
- Push, Pull
- Blade Finish:
- Black
- Blade Material:
- Plastic
- Amp Draw:
- HIgh: 23.5 Amps; Low: 17.4 Amps
- Shroud Height:
- 16.875 in.
- Shroud Width:
- 16.875 in.
- Shroud Thickness:
- 2.625 in.
- Shroud Material:
- Plastic
- Shroud Color:
- Black
- Includes Mounting Hardware:
- Yes
- Includes Wiring Harness:
- No
- Assembly Depth:
- 2.625 in.
- Includes Air Conditioning Relay:
- No
- Quantity:
- Sold As Kit
