Derale Electric Fan 16626; Tornado 2175 CFM Electric 16.000 in. Skewed
$170.26
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 16" Tornado Electric Puller Fan, Standard Mounting Kit
Product Description

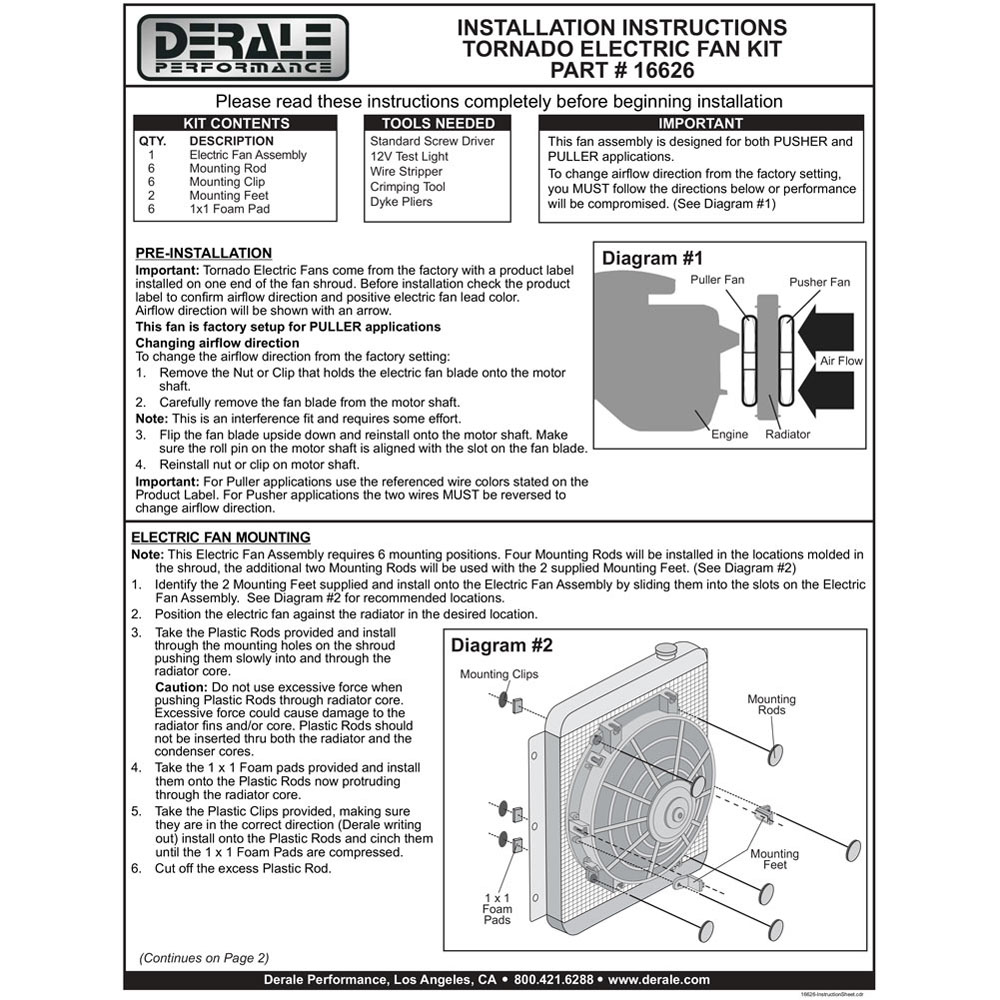

Our top of the line 16" Tornado fan uses 8 skewed blades, producing a healthy 2175 CFM at 0 static pressure, drawing only 18.4 amps from its quiet, high torque 225 watt motor. Includes mounting kit and illustrated installation instructions.
Specifications
- Electric Fan Series:
- Tornado
- Fan Type:
- Electric
- Maximum CFM:
- 2175 CFM
- Fan Diameter:
- 16.000 in.
- Blade Type:
- Skewed
- Fan Directon:
- Reversible, Puller by Default
- Blade Finish:
- Black
- Blade Material:
- Plastic
- Amp Draw:
- 18.4 Amp

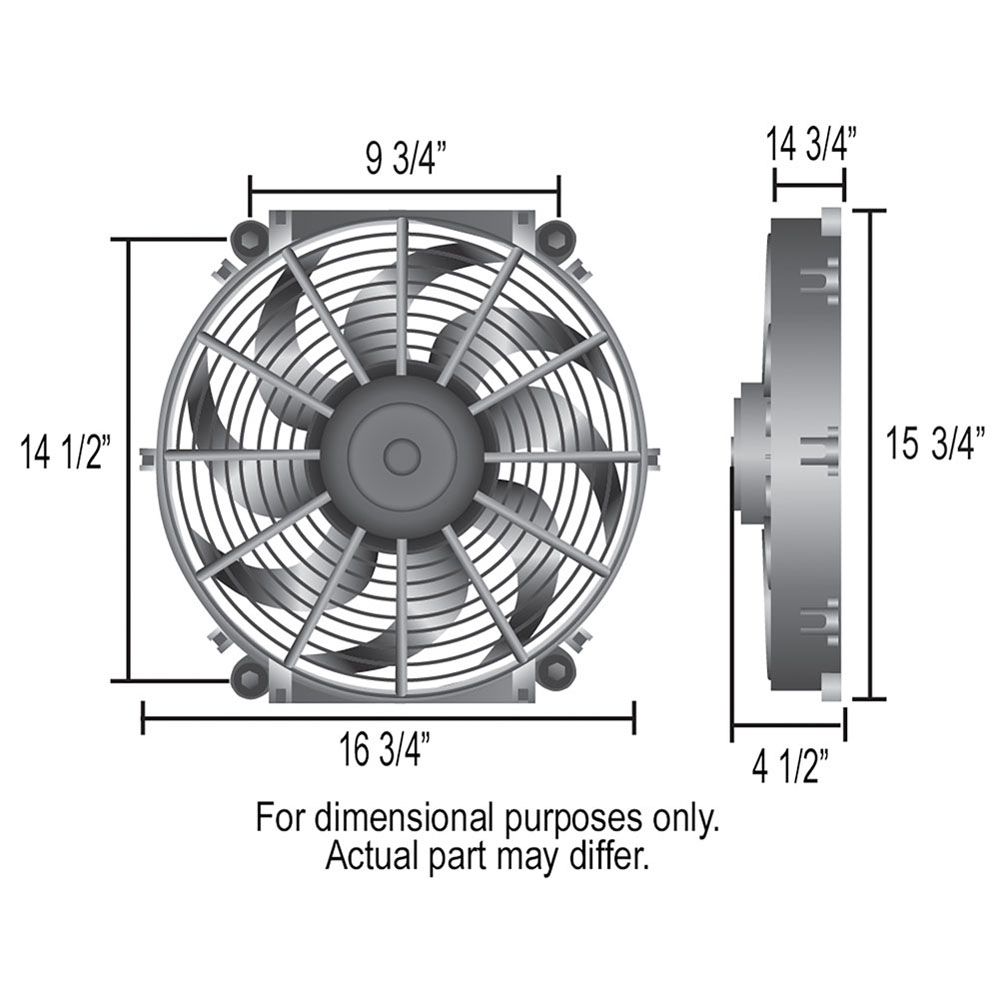

- Shroud Height:
- 15.500 in.
- Shroud Width:
- 16.750 in.
- Shroud Thickness:
- 1.875 in.
- Shroud Material:
- Plastic
- Shroud Color:
- Black
- Includes Mounting Hardware:
- Yes
- Includes Wiring Harness:
- No
- Assembly Depth:
- 3.875 in.
- Includes Air Conditioning Relay:
- No
- Quantity:
- Sold As Kit
