Derale Cooling Fan 16214; High Output Single RAD Electric 14.000 in. Skewed

$239.83

Part #: 16214

Brand: Derale

UPC: 083277162145

Estimated Ship Date: Special Order

Specifications Tech Resources

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

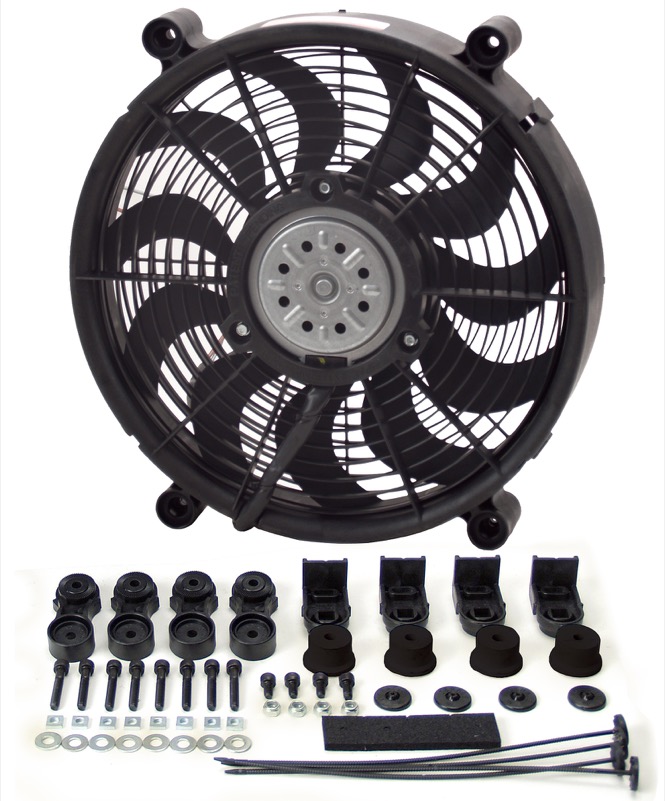

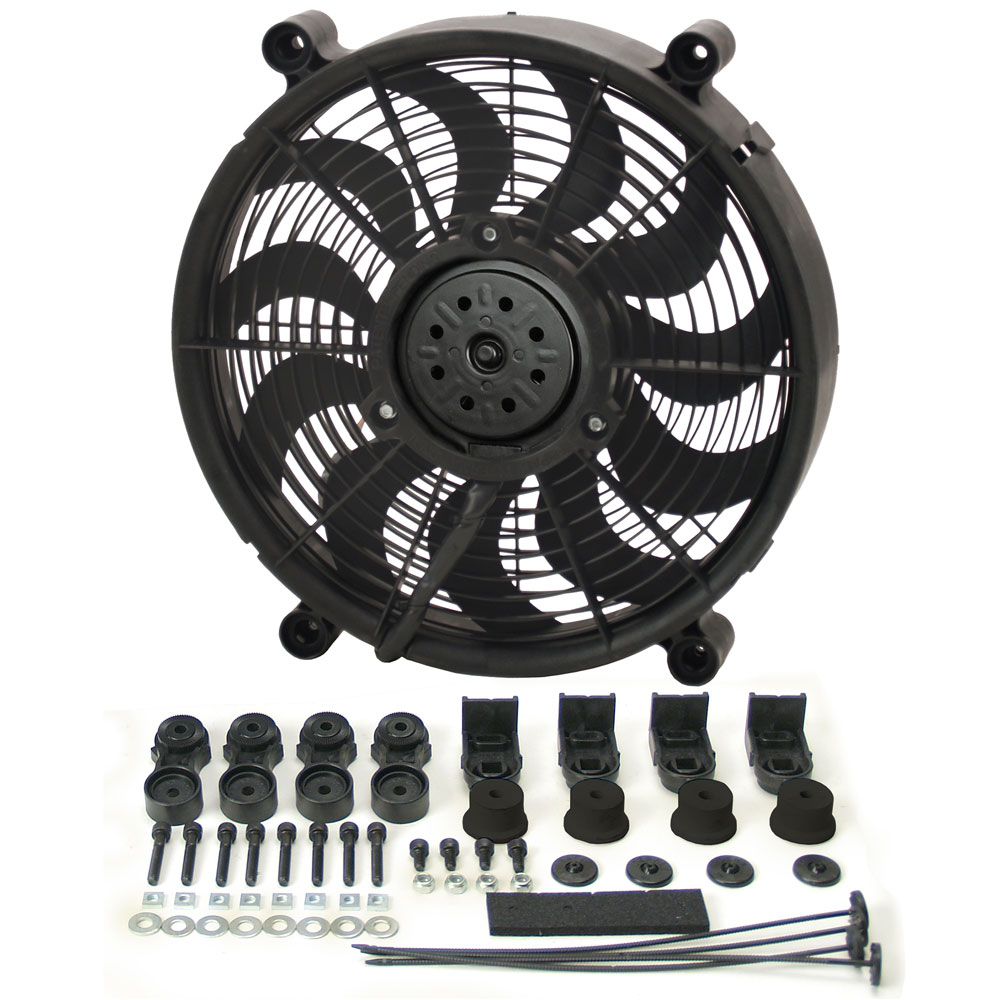

14" High Output Single RAD Pusher/Puller Fan with Premium Mount Kit

Product Description

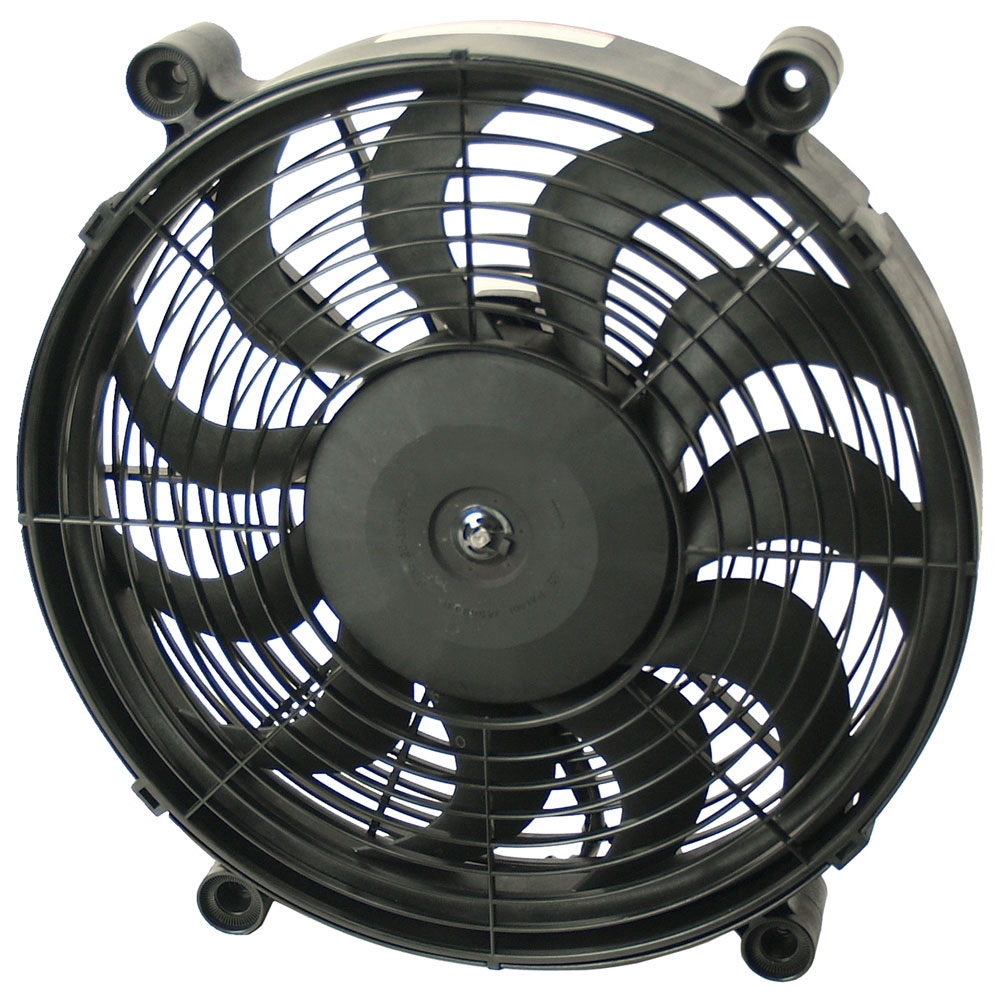

A very popular primary cooling fan, this 14" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2100 CFM while drawing up to 22 amps.

Specifications

Engine Cooling Fan Series:
High Output Single RAD: Fan Type:
Electric: Fan Diameter:
14.000 in.: Blade Type:
Skewed: Fan Directon:
Push, Pull: Blade Finish:
Black: Blade Material:
Plastic: Amp Draw:
HIgh: 22.0 Amps; Low: 16.2 Amps: Shroud Height:

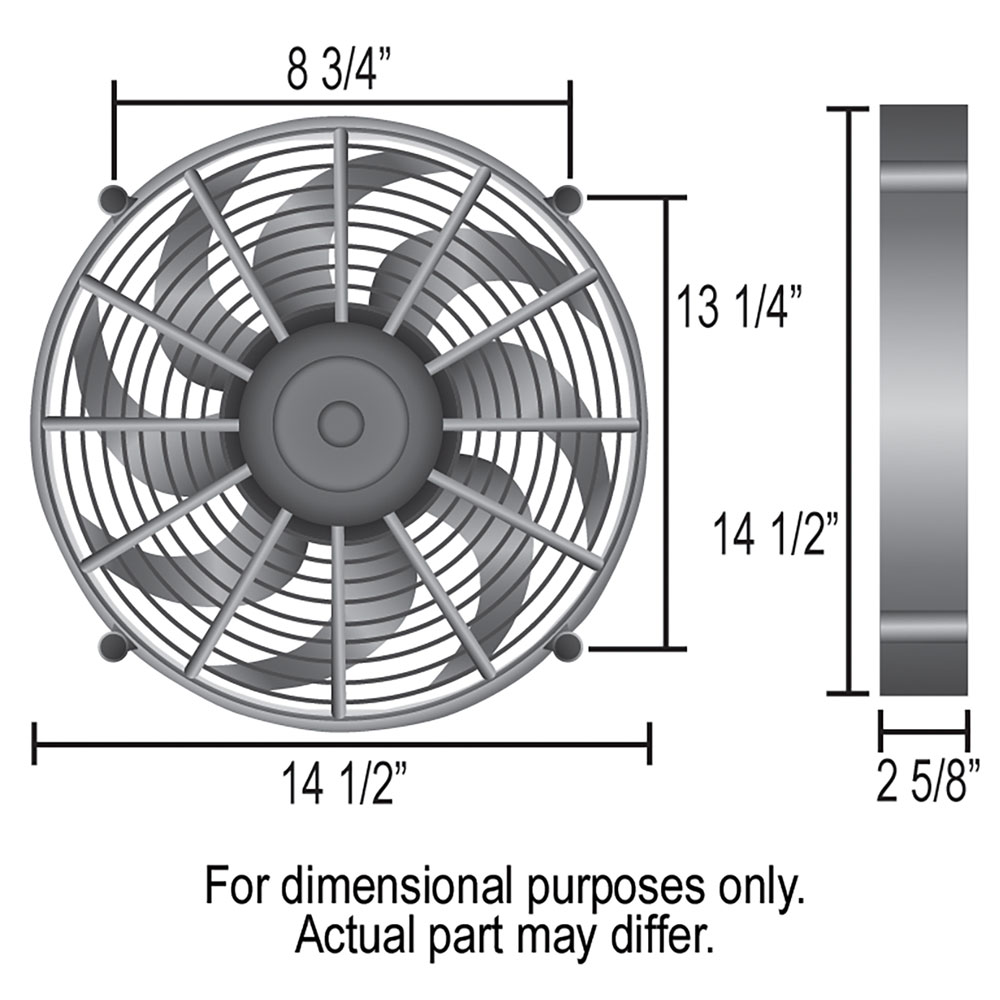

14.500 in.: Shroud Width:
14.500 in.: Shroud Thickness:
2.625 in.: Shroud Material:
Plastic: Shroud Color:
Black: Includes Mounting Hardware:
Yes: Includes Wiring Harness:
No: Includes Air Conditioning Relay:
No: Quantity:
Sold As Kit

Tech Resources

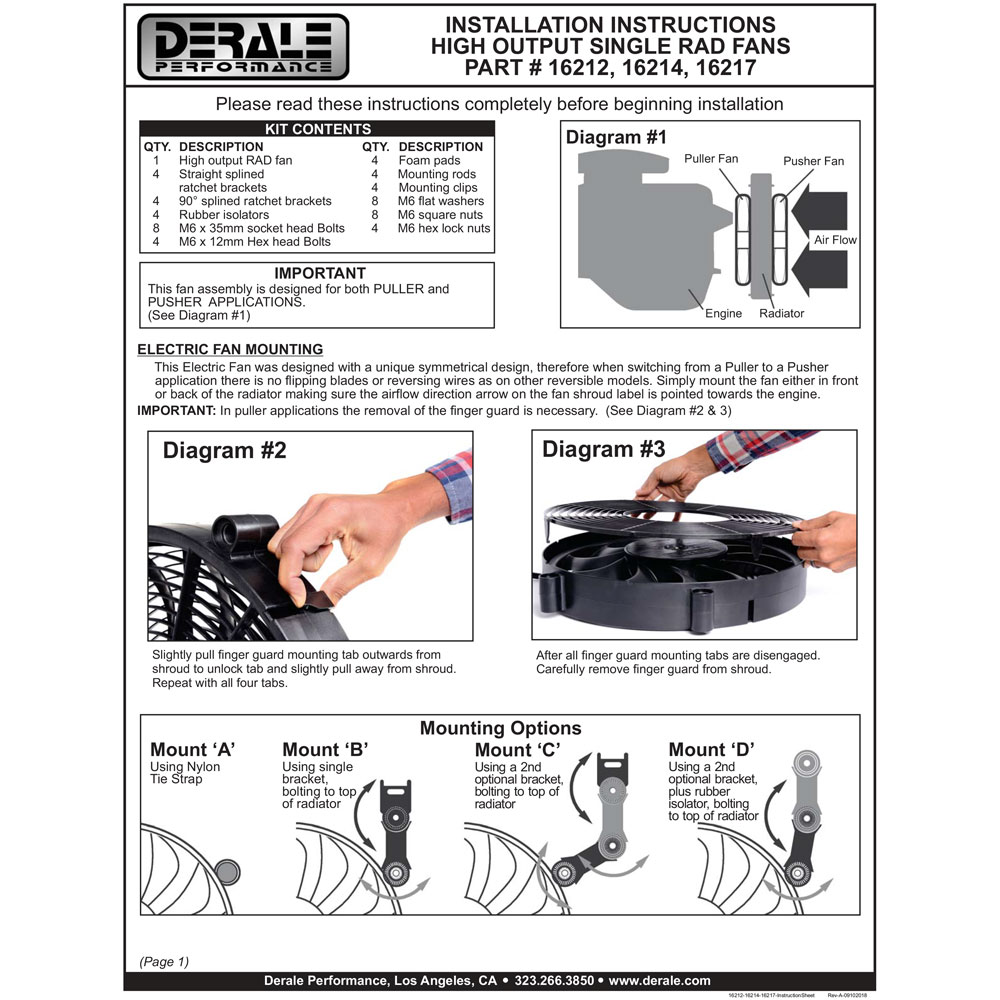

DER16214.pdf
