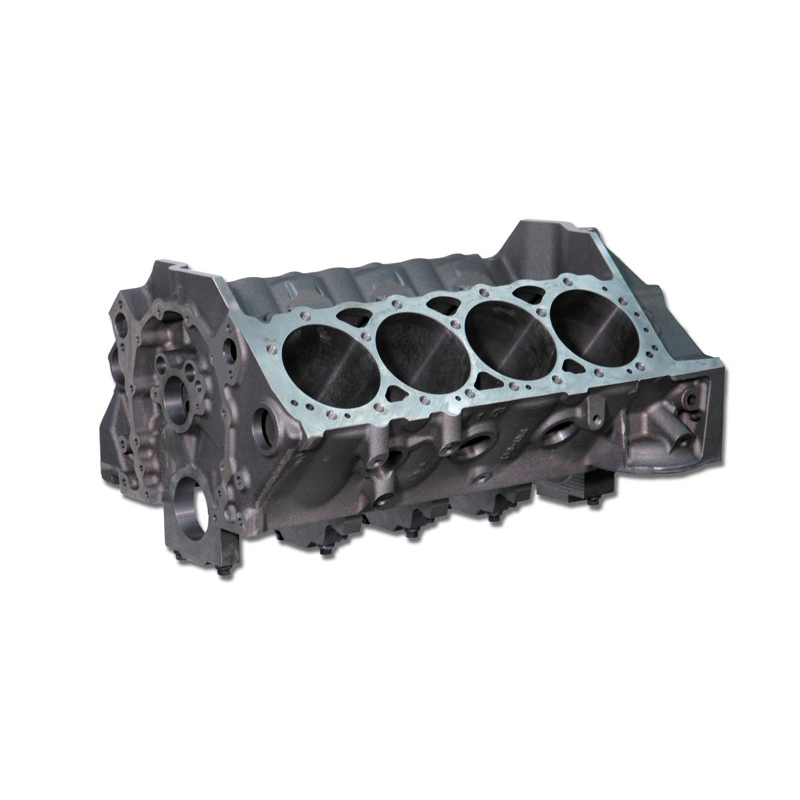

Photo for Dart Engine Block 31161111L; SHP 4.000 in. Cast Iron 2, 4-Bolt Mains (2-4-4-4-2) for Chevy SBC 350 Mains

Dart Engine Block 31161111L; SHP 4.000 in. Cast Iron 2, 4-Bolt Mains (2-4-4-4-2) for Chevy SBC 350 Mains

$2,299.99

Part #: 31161111L

Brand: Dart

UPC: 807051016437

Estimated Ship Date: This part is unavailable with no ETA

Specifications

This item has a $350.00 oversized shipping charge.
See our shipping policy for more details.

Details

  • Priority main oiling system
  • Siamese cylinder bores with extra thick walLS2
  • Optional full water jacketed non-siamese cylinder bores
  • Extra thick decks ensure reliable head gasket seal
  • Blind head bolt holes don't go through to water jacket
  • Scalloped water jacket walLS2 improve flow around cylinders for better cooling
  • Clearance for 3.750? stroke with steel rods
  • Splayed outer bolts on middle main bearing caps
  • Non-siamese water blocks have 2-bolt mains on all 5 locations
  • Uses + .300? tall stock 87-95 roller lifters
  • Provisions for OE stock roller lifters & cams
  • Uses 1981-1985 stock style oil pan & passenger side dipstick
  • Uses stock stamped steel or plastic timing cover
  • All OE bolt holes for starter, clutch ball, etc.
  • Oil restrictors available through aftermarket resources
  • Parts kit sold separately

Product Description

Designed for high performance and medium duty applications, the SHP (Special High Performance) block is the ideal starting point for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts.

Specifications

Block Series:
SHP
Make:
Chevy
Engine:
SBC 350 Mains
Block Material:
Cast Iron
Bore Size:
4.000 in.
Deck Height:
9.025 in.
Main Caps:
2, 4-Bolt Mains (2-4-4-4-2)
Main Material:
Ductile Iron
Main Seal:
1 Piece
Quantity:
Sold As Each
