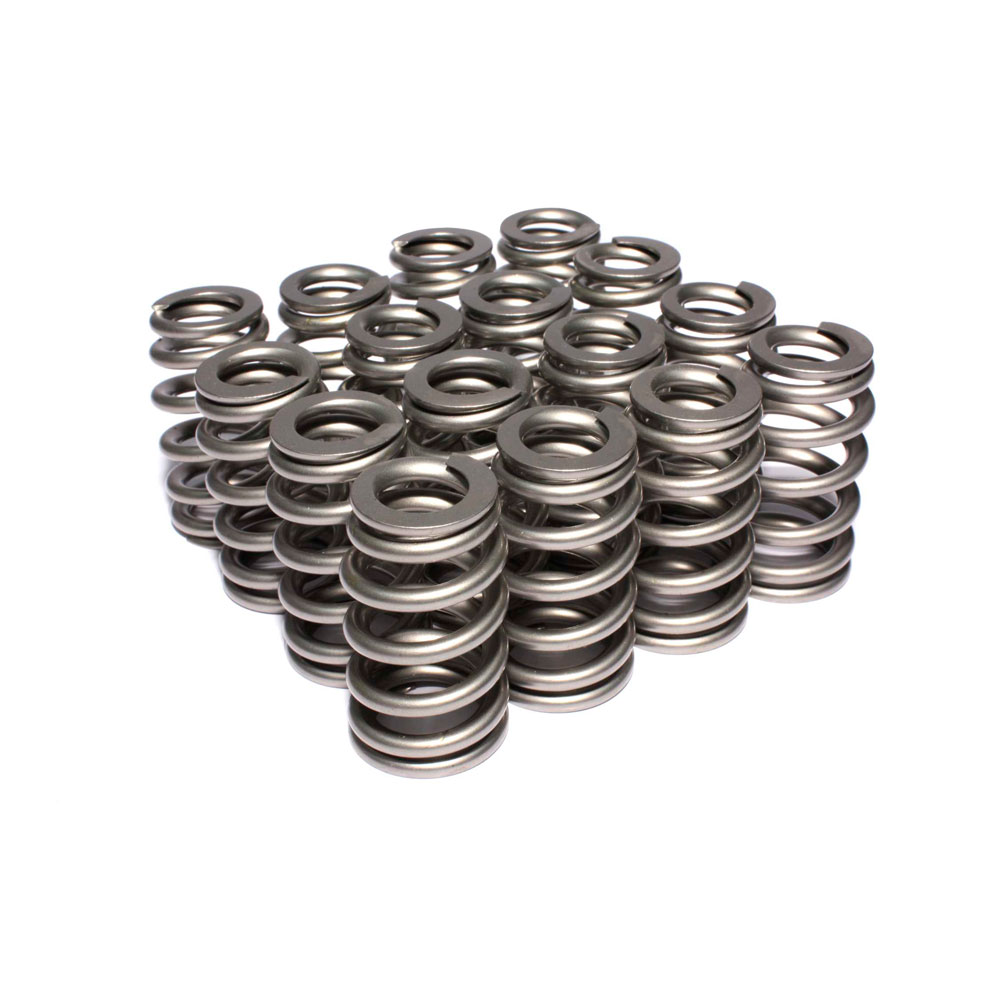

COMP Cams Valve Spring Set 26918-16; Performance Street 372 lbs/in. Single Spring 1.310, 1.075 in.

$260.95

Part #: 26918-16

Brand: COMP Cams

UPC: 036584077473

Estimated Ship Date: Today

Specifications Alternative Parts

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Less mass enables higher rpm limits than conventional springs
More stability, higher rpm, longer life, and more horsepower
Requires less spring pressure for better valve control
Engineered for maximum harmonic resistance
Varied wire pitch and coil spacing resists coil bind
High resistance to fatigue

Product Description

With a .625 maximum lift, these Beehive Valve Springs were designed for Hydraulic Roller cams in LS1, LS2 and LS6 engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.

Specifications

Valve Spring Set Series:
Performance Street: Number Of Coils:
Single Spring: Damper Spring:
No: Overall Diameter:
1.310, 1.075 in.: Inside Diameter:
0.885, 0.650 in.: Seat Pressure:
125 lbs. @ 1.800 in.: Open Pressure:
318 lbs. @ 1.200 in.: Coil Bind:
1.100 in.: Spring Rate (lbs./in.):
372 lbs/in.: Max Lift:
0.625 in.: Material:
Chrome Silicon: Designed for Cam Type(s):
Hydraulic Roller: Quantity:
Sold As Set (16/pkg)
