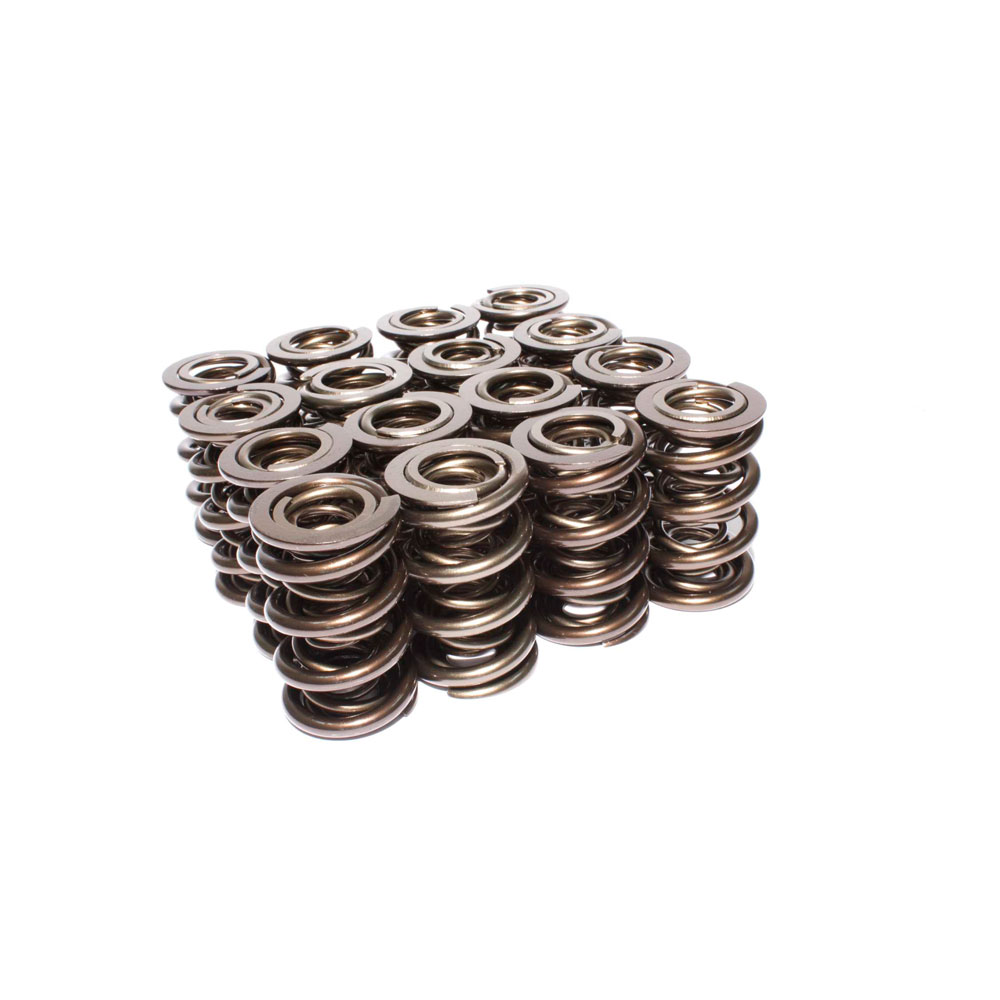

COMP Cams Valve Spring Set 26082-16; Race Extreme 761 lbs/in. Triple Spring 1.683 in.

$618.95

Part #: 26082-16

Brand: COMP Cams

UPC: 036584071273

Estimated Ship Date: This part is unavailable with no ETA

Specifications

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Ideal for drag racing applications
Excellent for use with high lift cams
High resistance to fatigue
Made from chrome silicone alloy
Manufactured to very tight stress relief tolerances

Product Description

Elite Race Triple Valve Springs from COMP Cams have an .800? to .900? maximum lift and outside diameter of 1.680?. Designed for use with roller cams, they are widely used in aggressive and endurance applications such as Competition Eliminator, Super Gas, Super Stock and other Fast Bracket Classes, as well as boat drag and tractor pull applications.

Specifications

Valve Spring Set Series:
Race Extreme: Number Of Coils:
Triple Spring: Damper Spring:
No: Overall Diameter:
1.683 in.: Inside Diameter:
0.627 in.: Seat Pressure:
382 lbs. @ 2.100 in.: Open Pressure:
1067 lbs. @ 1.200 in.: Coil Bind:
1.130 in.: Spring Rate (lbs./in.):
761 lbs/in.: Max Lift:
0.900 in.: Quantity:
Sold As Set (16/pkg)
