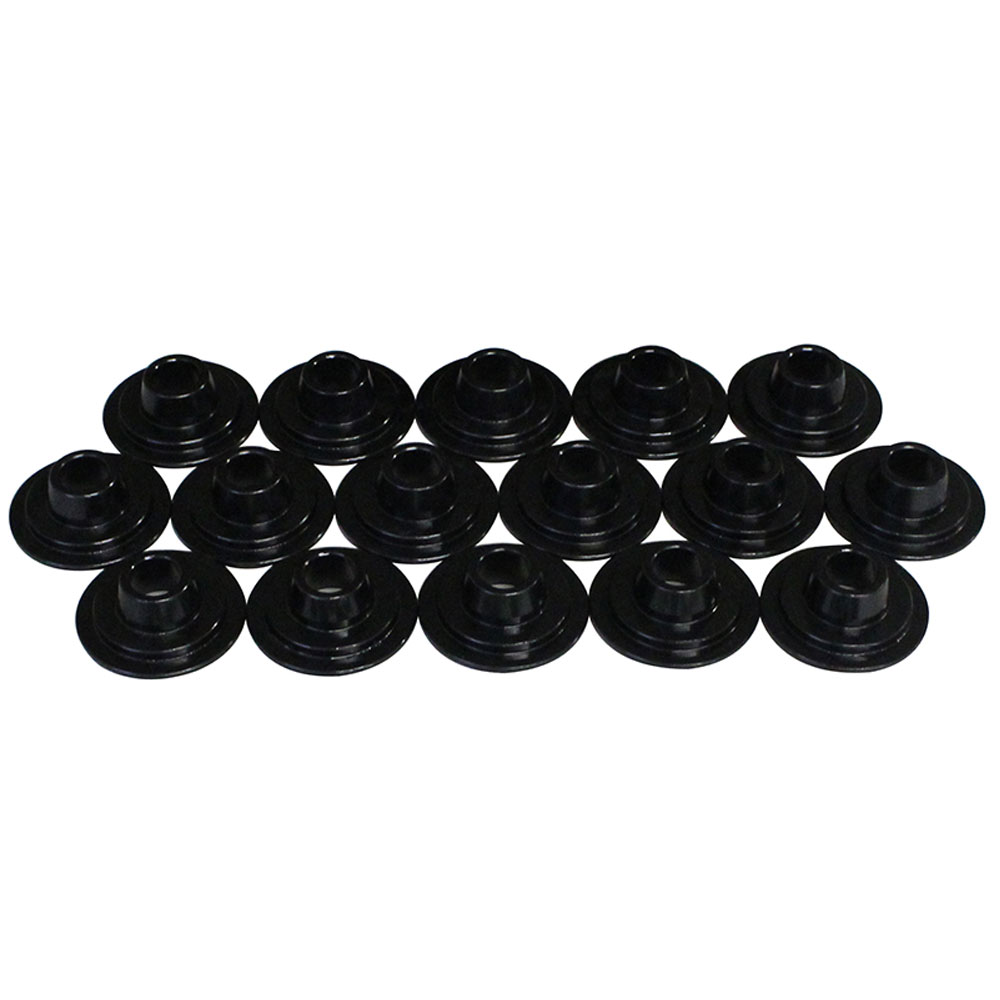

Comp Cams Valve Spring Retainers 744-16; 4140 Chromoly 7 deg. 11/32 in. 1.437 to 1.500 in.
$90.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description
COMP engineers used 3D CAD with FEA to design retainers with a modern and advanced contoured top profiling for lower stress, increased lift and a reduction in mass. The retainers are CNC-machined to exact tolerances using CAD/Cam software. All COMP retainers use only high-grade SAE 4140 chromemoly Steel with no lead, <0.04% sulfur and a black oxide finish to prevent corrosion.
Specifications
- Lock Angle:
- 7 deg.
- Material:
- 4140 Chromoly
- Valve Stem Diameter:
- 11/32 in.
- Valve Spring Diameter:
- 1.437 to 1.500 in.
- Tier 1 OD (Overall Diameter):
- 1.400 in.
- Tier 2 OD:
- 1.060 in.
- Tier 3 OD:
- 0.690 in.
- Quantity:
- Sold As Set (16/pkg)
