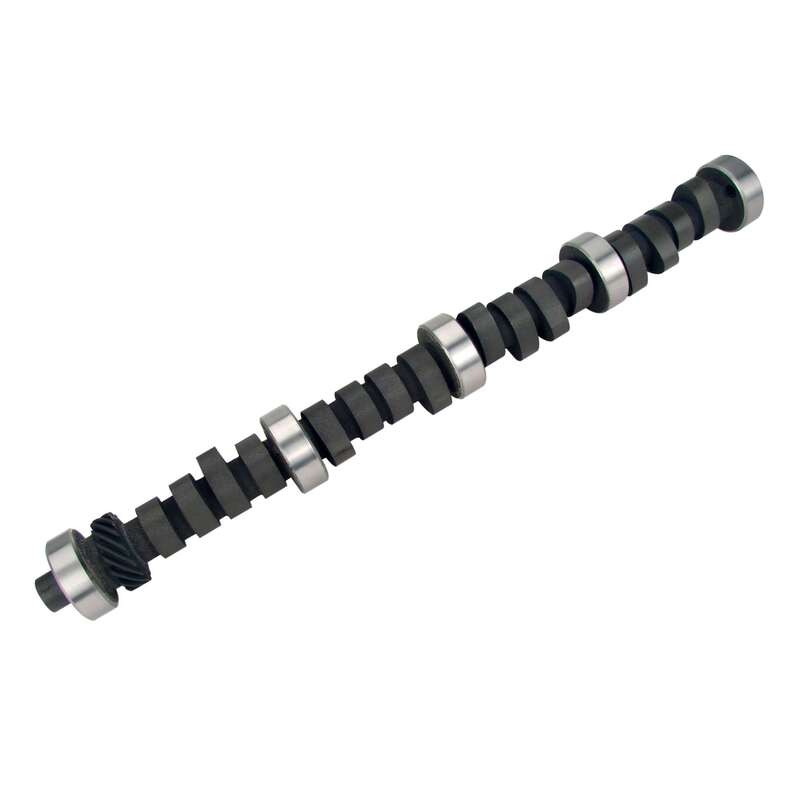

COMP Cams Camshaft 31-414-3; Magnum 1800 to 5800 RPM 0.500 in. 0.500 in. Hydraulic Flat Tappet for Ford 221 to 302
$254.95
Part #: 31-414-3
Brand: COMP Cams
UPC: 036584520085
Estimated Ship Date: 6/4/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Great high RPM power
- Easy on valve train parts
- Can be used with mild ratio rocker arms and traditional performance valve springs
- Best with aftermarket converter and 9.5:1+ compression
Product Description
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
Specifications
- Camshaft Series:
- Magnum
- Make:
- Ford
- Engine:
- 221 to 302
- Camshaft Type:
- Hydraulic Flat Tappet
- RPM Range:
- 1800 to 5800 RPM
- Intake Valve Lift:
- 0.500 in.
- Exhaust Valve Lift:
- 0.500 in.
- Advertised Intake Duration:
- 270 deg.
- Advertised Exhaust Duration:
- 270 deg.
- Intake Duration @ .050":
- 224 deg.
- Exhaust Duration @ .050":
- 224 deg.
- Lobe Separation:
- 110 deg.
- Cam Gear Attachment:
- 1 Bolt
- Camshaft Material:
- Cast Iron
- Camshaft Grind Number:
- 270H
- Usage:
- Street, Strip
- Requires Aftermarket Valve Springs:
- Yes
- Notes:
- Includes assembly lubricant
- Quantity:
- Sold As Each
