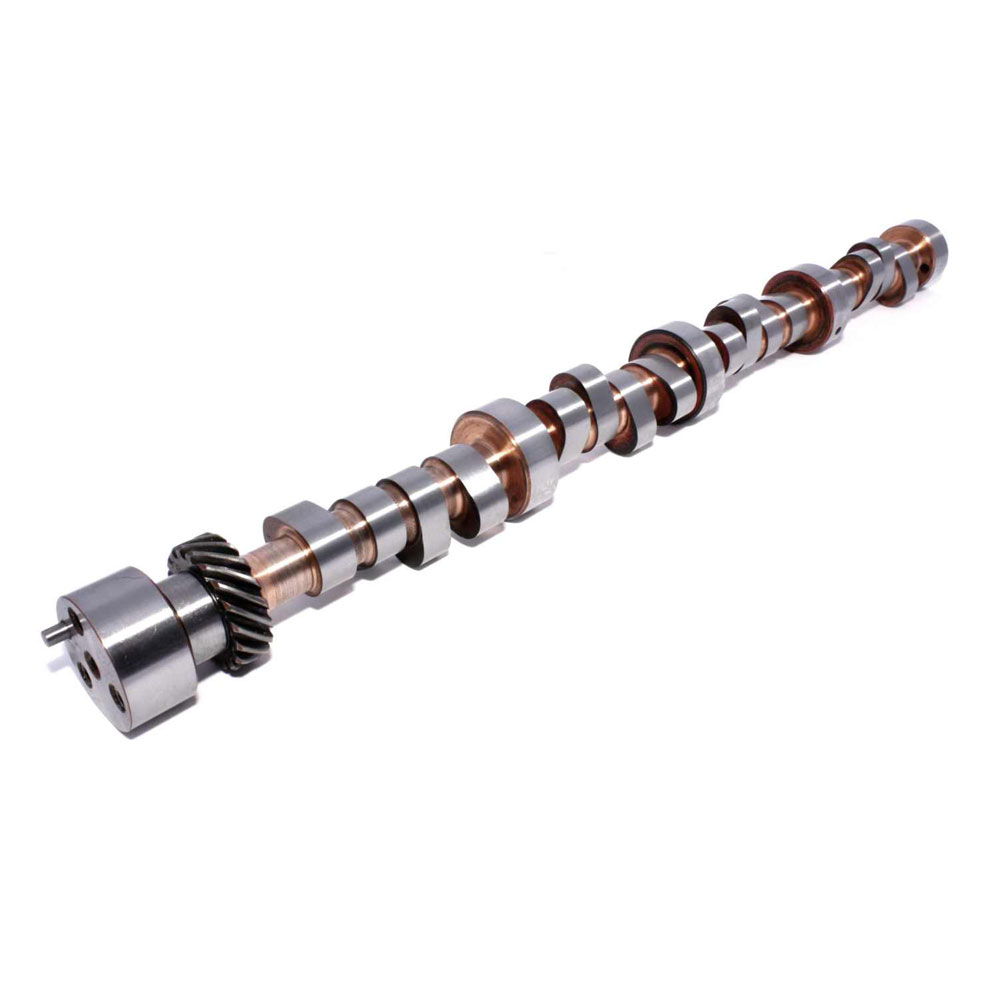

Photo for COMP Cams Camshaft 23-700-9; Xtreme Energy 2000 to 6000 RPM 0.564 in. 0.570 in. Mechanical Roller for Chrysler 383 to 440 Click to enlarge

COMP Cams Camshaft 23-700-9; Xtreme Energy 2000 to 6000 RPM 0.564 in. 0.570 in. Mechanical Roller for Chrysler 383 to 440

$478.76

$531.95

Save 10%

Part #: 23-700-9

Brand: COMP Cams

UPC: 036584081845

Estimated Ship Date: 7/20/2025 (From manufacturer)

Specifications Videos Recommended Alternative Parts

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
  • More vacuum allows an increase in duration for improved performance and assists power brakes
  • Excellent performance in street carbureted applications
  • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
  • Good top end horsepowerNot legal for sale or use on pollution controlled motor vehicles.

Product Description

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Specifications

Camshaft Series:
Xtreme Energy
Make:
Chrysler
Engine:
383 to 440
Camshaft Type:
Mechanical Roller
RPM Range:
2000 to 6000 RPM
Intake Valve Lift:
0.564 in.
Exhaust Valve Lift:
0.570 in.
Advertised Intake Duration:
274 deg.
Advertised Exhaust Duration:
280 deg.
Intake Duration @ .050":
236 deg.
Exhaust Duration @ .050":
242 deg.
Lobe Separation:
110 deg.
Cam Gear Attachment:
3 Bolt
Camshaft Material:
Billet Steel
Camshaft Grind Number:
XR274R
Usage:
Street Performance
Requires Aftermarket Valve Springs:
Yes
Quantity:
Sold As Each

Videos

Recommended

COMP Cams Valve Spring Retainers 741-16; 4140 Chromoly 10 deg. All 1.500 to 1.550 in.

COMP Cams Valve Spring Retainers 741-16; 4140 Chromoly 10 deg. All 1.500 to 1.550 in.

COM741-16

$85.95

Estimated Ship Date: Today

COMP Cams Valve Keepers 627-16; Super Locks 10 deg. 3/8 in. Chrysler 2 Groove, 4 Groove Machined Steel

COMP Cams Valve Keepers 627-16; Super Locks 10 deg. 3/8 in. Chrysler 2 Groove, 4 Groove Machined Steel

COM627-16

$61.95

Estimated Ship Date: Today

COMP Cams Lifters 829-16; Endure X Mechanical Roller Center, Center 0.904 in. for Chrysler 383 to 440

COMP Cams Lifters 829-16; Endure X Mechanical Roller Center, Center 0.904 in. for Chrysler 383 to 440

COM829-16

$594.86 $660.95 Save 10%

Estimated Ship Date: Today

COMP Cams Valve Springs 953-16; Performance Valve Springs 473 lbs/in. Dual Spring 1.550 in.

COMP Cams Valve Springs 953-16; Performance Valve Springs 473 lbs/in. Dual Spring 1.550 in.

COM953-16

$191.95

Estimated Ship Date: Discontinued

COMP Cams Timing Set 2109; Magnum Double Roller for Chrysler 383 to 440

COMP Cams Timing Set 2109; Magnum Double Roller for Chrysler 383 to 440

COM2109

$91.95

Estimated Ship Date: This part has been superceded to COM2109CPG

COMP Cams Rocker Arm Kit 1621-16; Ultra Pro Magnum 1.5 8650 Chromoly Full Roller for Chrysler 383 to 440

COMP Cams Rocker Arm Kit 1621-16; Ultra Pro Magnum 1.5 8650 Chromoly Full Roller for Chrysler 383 to 440

COM1621-16

$948.95

Estimated Ship Date: 7/20/2025 (From manufacturer)

Alternative Parts

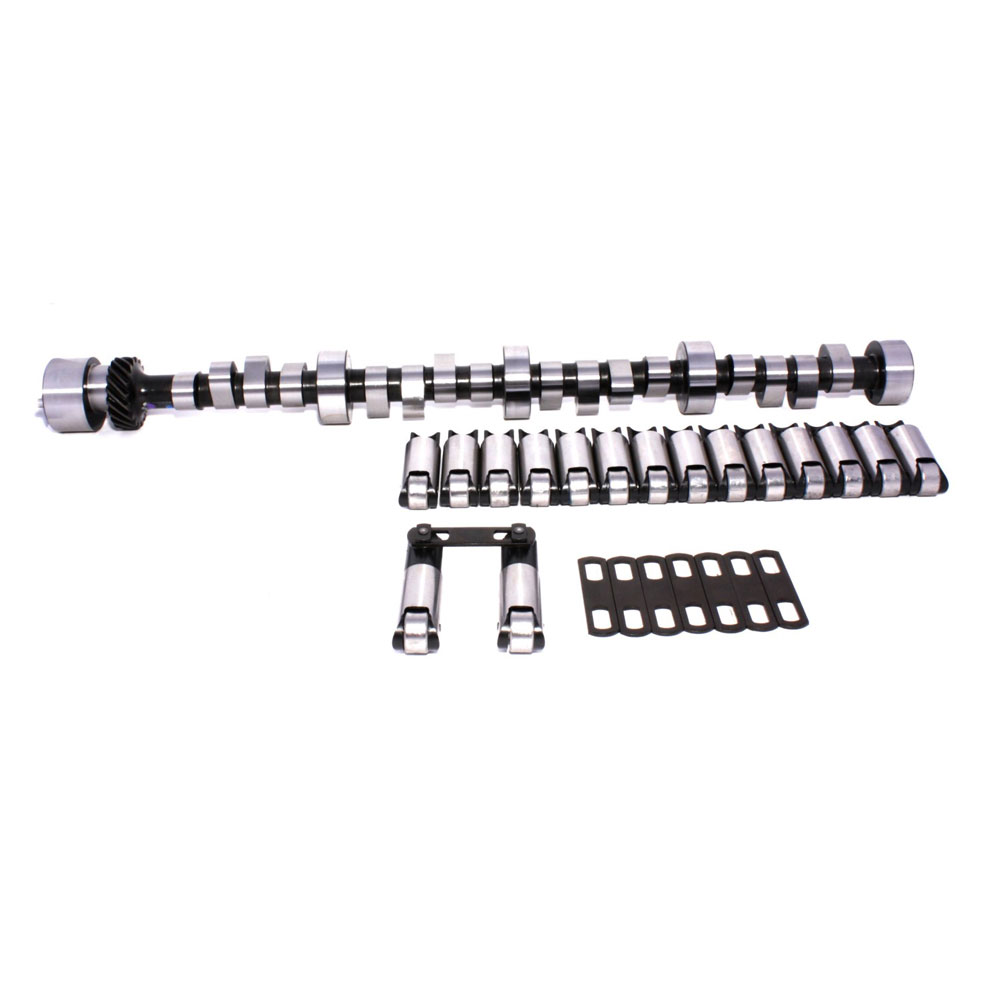

COMP Cams Camshaft and Lifter Kit CL23-700-9; Xtreme Energy Mechanical Roller 2000 to 6000 RPM for Chrysler 383 to 440
