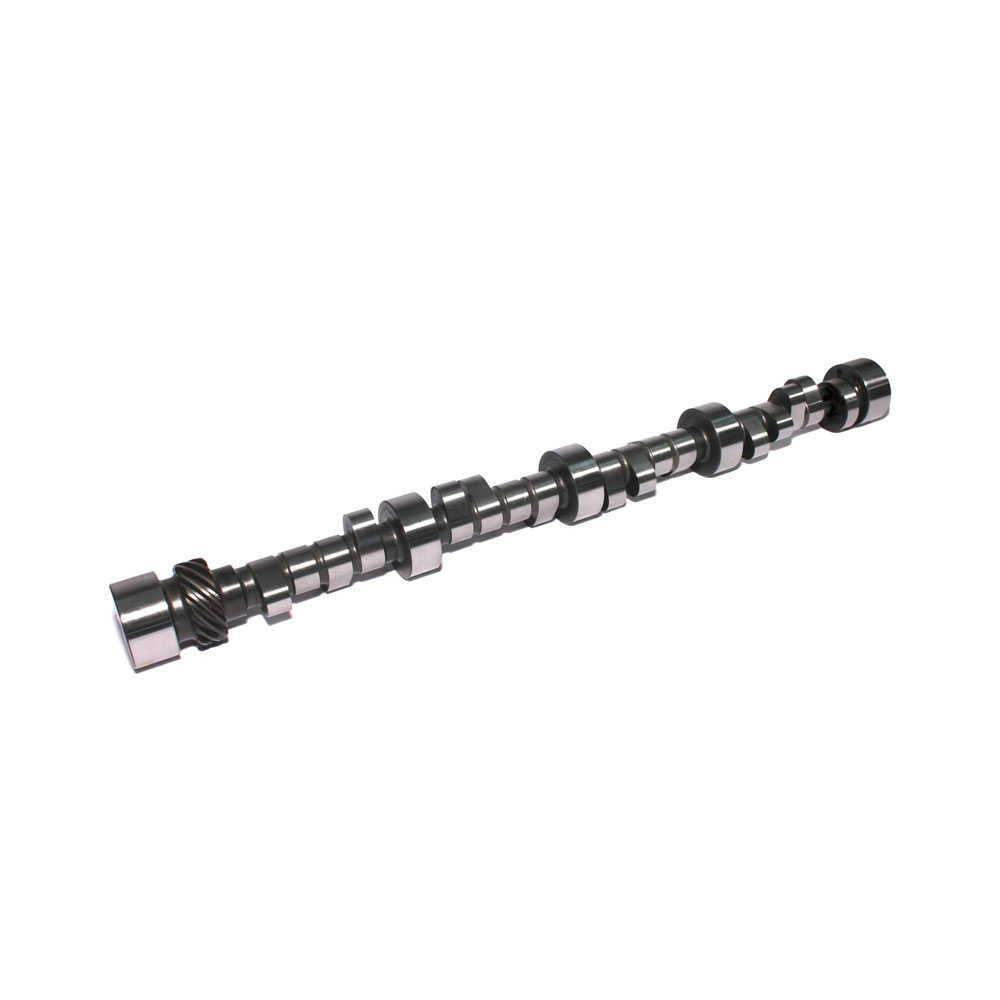

Photo for COMP Cams Camshaft 12-996-9; Oval Track 6200 to 8500 RPM 0.630 in. 0.630 in. Mechanical Roller for Chevy 262 to 400

COMP Cams Camshaft 12-996-9; Oval Track 6200 to 8500 RPM 0.630 in. 0.630 in. Mechanical Roller for Chevy 262 to 400

$505.95

Part #: 12-996-9

Brand: COMP Cams

UPC: 036584690269

Estimated Ship Date: 6/1/2025 (From manufacturer)

Specifications Videos Recommended

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

All Comp Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Specifications

Camshaft Series:
Oval Track
Make:
Chevy
Engine:
262 to 400
Camshaft Type:
Mechanical Roller
RPM Range:
6200 to 8500 RPM
Intake Valve Lift:
0.630 in.
Exhaust Valve Lift:
0.630 in.
Advertised Intake Duration:
312 deg.
Advertised Exhaust Duration:
322 deg.
Intake Duration @ .050":
276 deg.
Exhaust Duration @ .050":
284 deg.
Lobe Separation:
107 deg.
Cam Gear Attachment:
3 Bolt
Camshaft Material:
Billet Steel
Camshaft Grind Number:
312AR-7
Usage:
Strip
Requires Aftermarket Valve Springs:
Yes
Notes:
0.900 in. Base Circle
Quantity:
Sold As Each

Videos

Recommended

COMP Cams Valve Spring Retainer Keeper Set 611-16; Super Locks 10 deg. 11/32 in. Single Groove Steel

COMP Cams Valve Spring Retainer Keeper Set 611-16; Super Locks 10 deg. 11/32 in. Single Groove Steel

COM611-16

$38.95

Estimated Ship Date: Today

COMP Cams Valve Lash Cap Set 621-16; Steel 11/32 in. 0.080 in.

COMP Cams Valve Lash Cap Set 621-16; Steel 11/32 in. 0.080 in.

COM621-16

$50.95

Estimated Ship Date: Special Order

COMP Cams Valve Stem Oil Seal 503-16; 11/32 in. 0.530 in. Positive Stop PTFE

COMP Cams Valve Stem Oil Seal 503-16; 11/32 in. 0.530 in. Positive Stop PTFE

COM503-16

$33.95

Estimated Ship Date: Today

COMP Cams Distributor Gear 12200; Carbon Ultra Poly Composite 0.491 in. for Chevy 262 to 400, 396 to 454

COMP Cams Distributor Gear 12200; Carbon Ultra Poly Composite 0.491 in. for Chevy 262 to 400, 396 to 454

COM12200

$143.95

Estimated Ship Date: Today

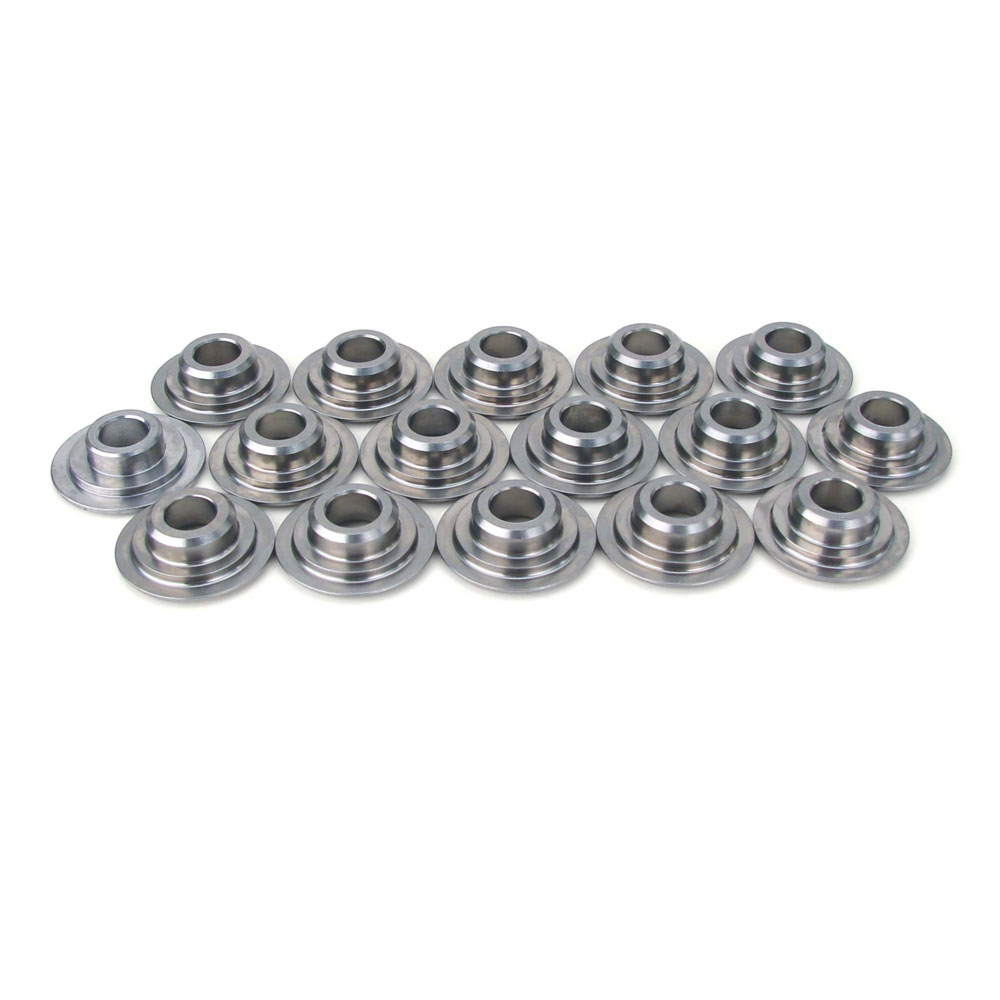

COMP Cams Valve Spring Retainer Set 731-16; Titanium 10 deg. All 1.500 to 1.550 in.

COMP Cams Valve Spring Retainer Set 731-16; Titanium 10 deg. All 1.500 to 1.550 in.

COM731-16

$387.95

Estimated Ship Date: 6/1/2025 (From manufacturer)

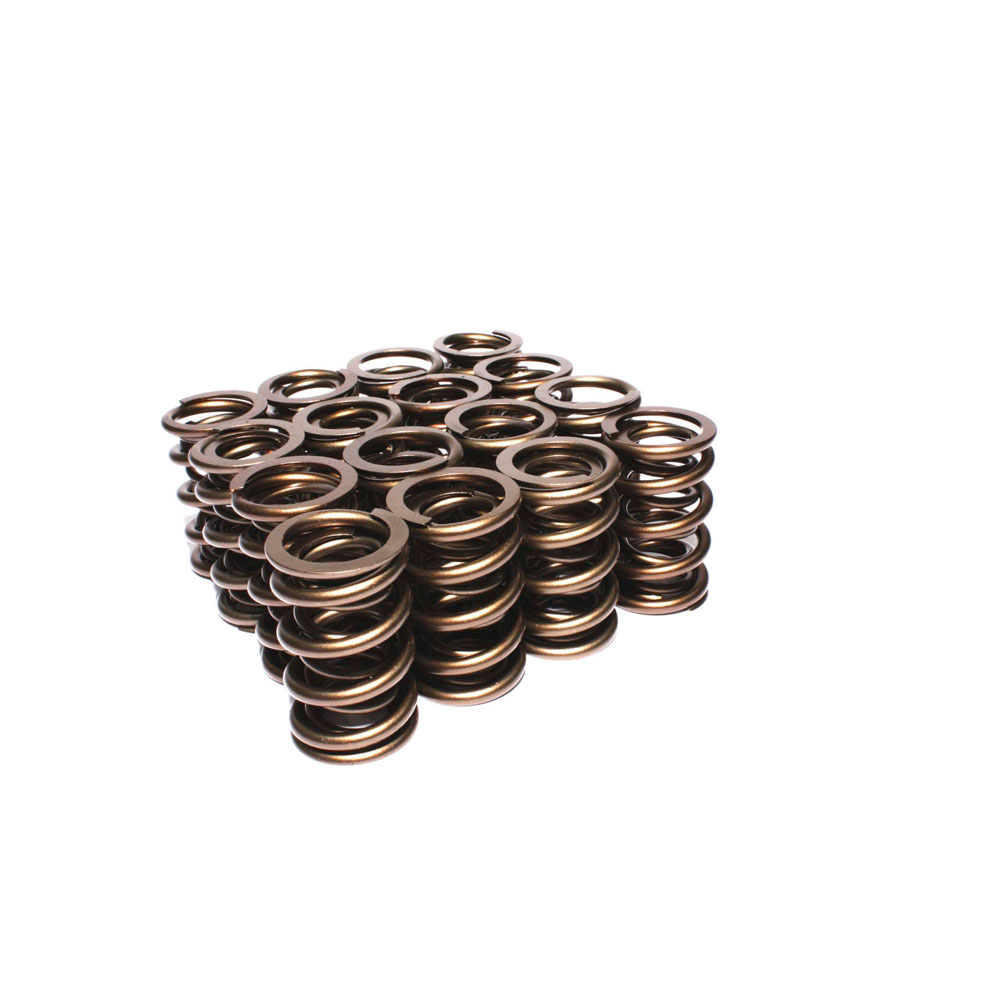

COMP Cams Valve Spring Set 943-16; Race Endurance 551 lbs/in. Dual Spring 1.565 in.
