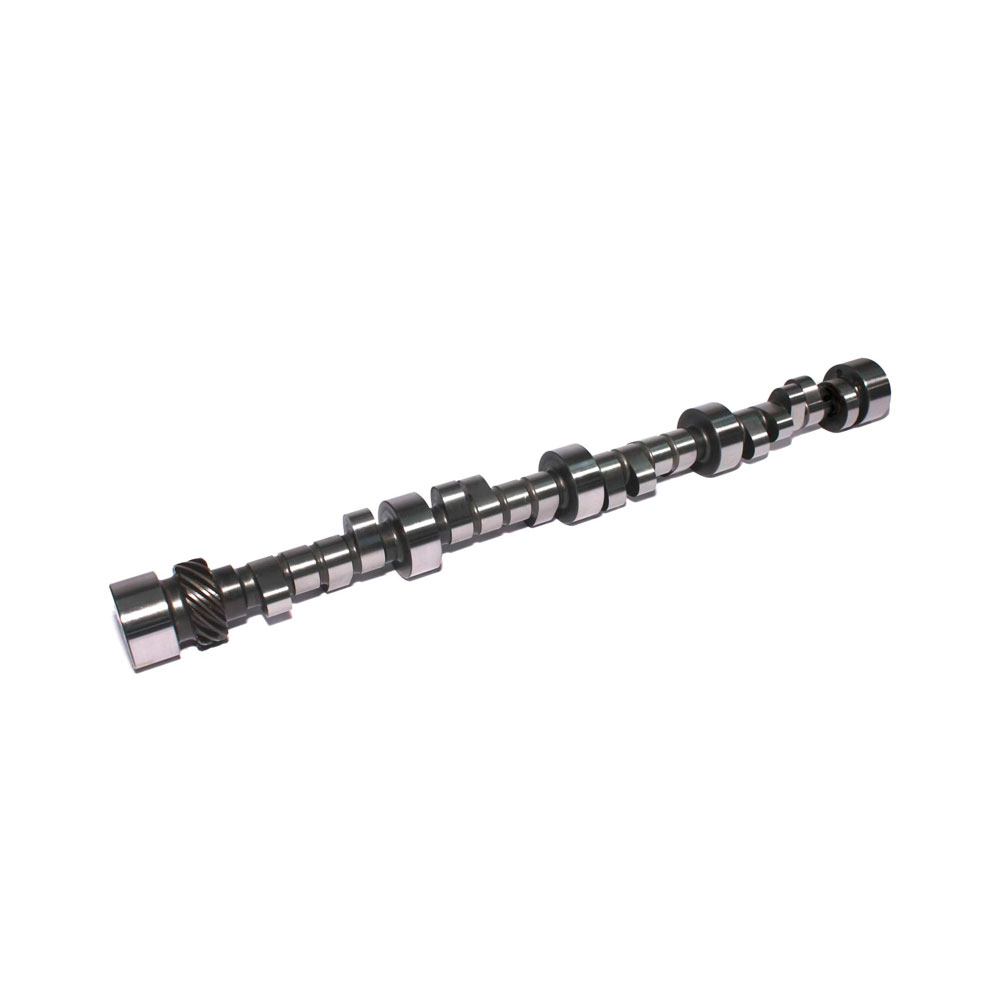

Comp Cams Camshaft 12-970-9; Drag Race 5000 to 7500 RPM 0.679 in. 0.645 in. Mechanical Roller for Chevy 262 to 400

$531.95

Part #: 12-970-9

Brand: Comp Cams

UPC: 036584065975

Estimated Ship Date: 6/14/2026 (From manufacturer)

Specifications Videos Tech Resources Recommended

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

8.15

Specifications

Camshaft Series:
Drag Race
Make:
Chevy
Engine:
262 to 400
Camshaft Type:
Mechanical Roller
RPM Range:
5000 to 7500 RPM
Intake Valve Lift:
0.679 in.
Exhaust Valve Lift:
0.645 in.
Advertised Intake Duration:
312 deg.
Advertised Exhaust Duration:
325 deg.
Intake Duration @ .050":
279 deg.
Exhaust Duration @ .050":
286 deg.
Lobe Separation:
108 deg.
Cam Gear Attachment:
3 Bolt
Camshaft Material:
Billet Steel
Camshaft Grind Number:
312R-8
Usage:
Strip
Requires Aftermarket Valve Springs:
Yes
Notes:
0.900 in. Base Circle
Quantity:
Sold As Each

Videos

Tech Resources

  • Instructions

Recommended

Comp Cams Valve Keepers 611-16; Super Locks 10 deg. 11/32 in. Single Groove Steel

Comp Cams Valve Keepers 611-16; Super Locks 10 deg. 11/32 in. Single Groove Steel

COM611-16

$40.95

Estimated Ship Date: Today

Comp Cams Valve Lash Caps 621-16; Steel 11/32 in. 0.080 in.

Comp Cams Valve Lash Caps 621-16; Steel 11/32 in. 0.080 in.

COM621-16

$53.95

Estimated Ship Date: Please Call

Comp Cams Valve Stem Oil Seals 503-16; 11/32 in. 0.530 in. Positive Stop PTFE

Comp Cams Valve Stem Oil Seals 503-16; 11/32 in. 0.530 in. Positive Stop PTFE

COM503-16

$35.95

Estimated Ship Date: Today

Comp Cams Distributor Gear 12200; Carbon Ultra Poly Composite 0.491 in. for Chevy 262 to 400, 396 to 454

Comp Cams Distributor Gear 12200; Carbon Ultra Poly Composite 0.491 in. for Chevy 262 to 400, 396 to 454

COM12200

$151.95

Estimated Ship Date: Today

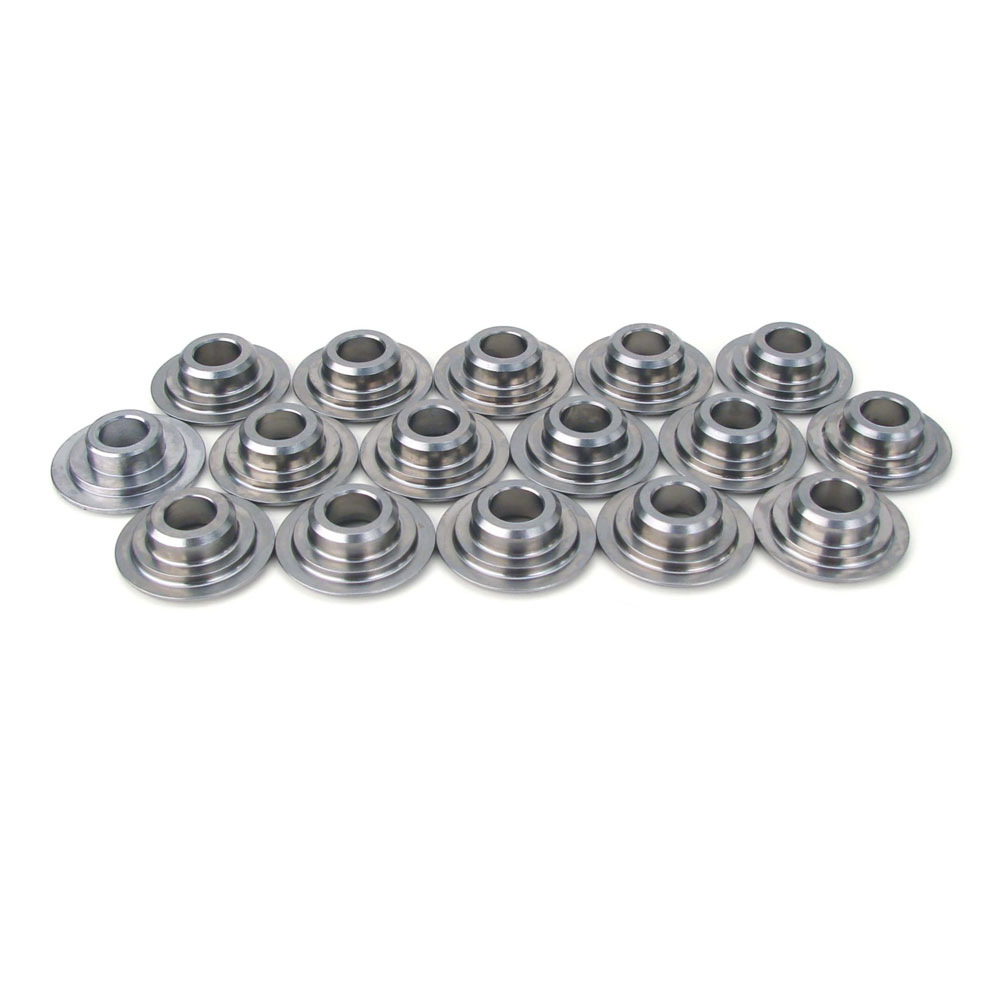

Comp Cams Valve Spring Retainers 732-16; Titanium 10 deg. All 1.500 to 1.550 in.

Comp Cams Valve Spring Retainers 732-16; Titanium 10 deg. All 1.500 to 1.550 in.

COM732-16

$407.95

Estimated Ship Date: 6/14/2026 (From manufacturer)

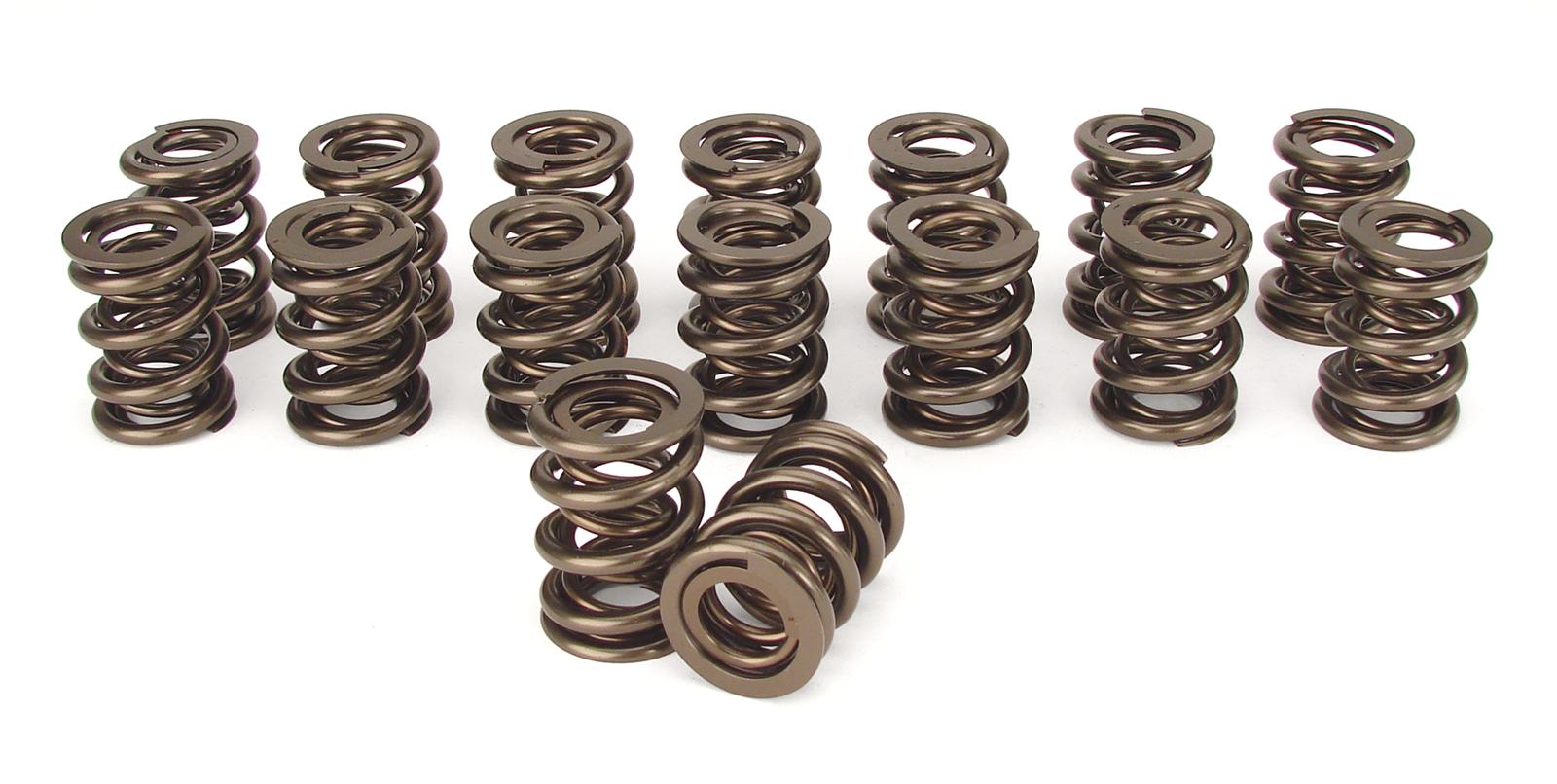

Comp Cams Valve Springs 944-16;
