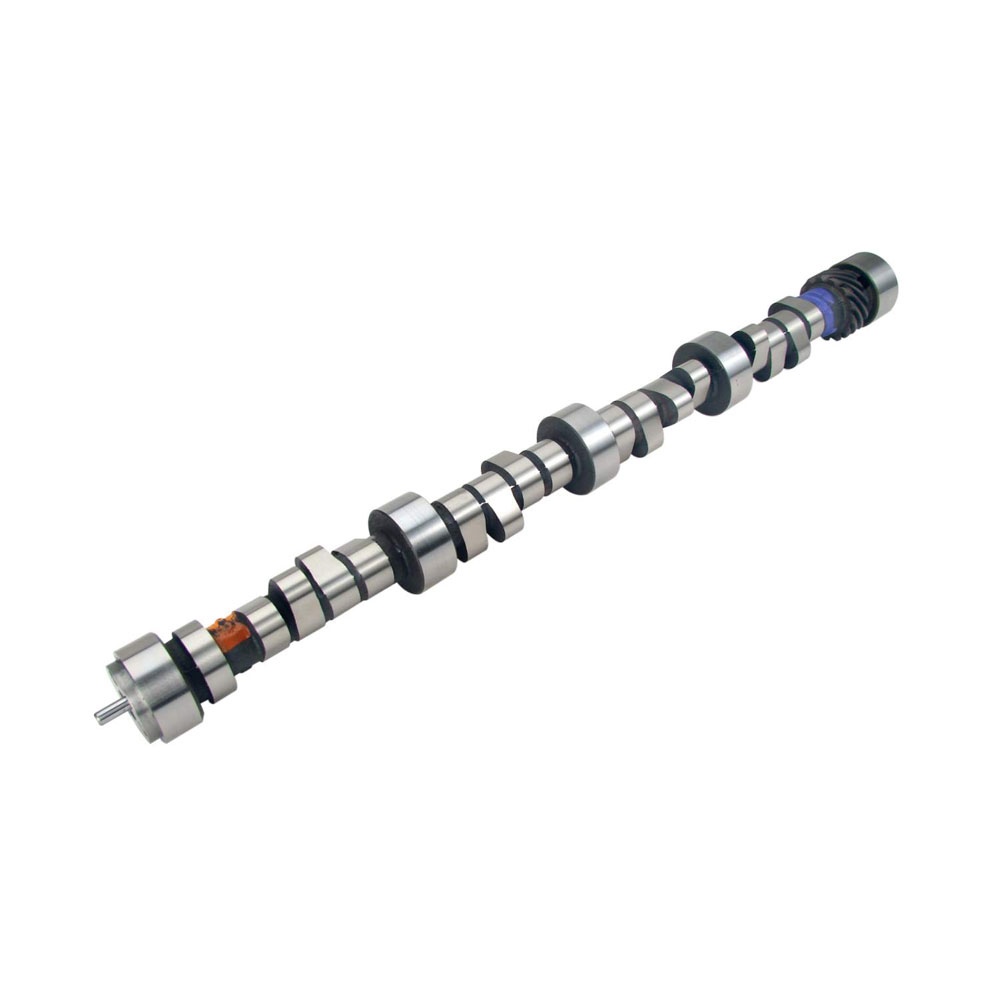

COMP Cams Camshaft 07-306-8; Xtreme Energy 1800 to 5800 RPM 0.510 in. 0.540 in. Hydraulic Roller for Chevy LT1, LT4
$549.95
Part #: 07-306-8
Brand: COMP Cams
UPC: 036584017790
Estimated Ship Date: 8/2/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance and assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Description
All Comp Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
Specifications
- Camshaft Series:
- Xtreme Energy
- Make:
- Chevy
- Engine:
- LT1, LT4
- Camshaft Type:
- Hydraulic Roller
- RPM Range:
- 1800 to 5800 RPM
- Intake Valve Lift:
- 0.510 in.
- Exhaust Valve Lift:
- 0.540 in.
- Advertised Intake Duration:
- 290 deg.
- Advertised Exhaust Duration:
- 307 deg.
- Intake Duration @ .050":
- 230 deg.
- Exhaust Duration @ .050":
- 244 deg.
- Lobe Separation:
- 112 deg.
- Cam Gear Attachment:
- 3 Bolt
- Camshaft Material:
- Austempered Ductile Iron
- Camshaft Grind Number:
- 290HR-12
- Requires Aftermarket Valve Springs:
- Yes
- Quantity:
- Sold As Each
