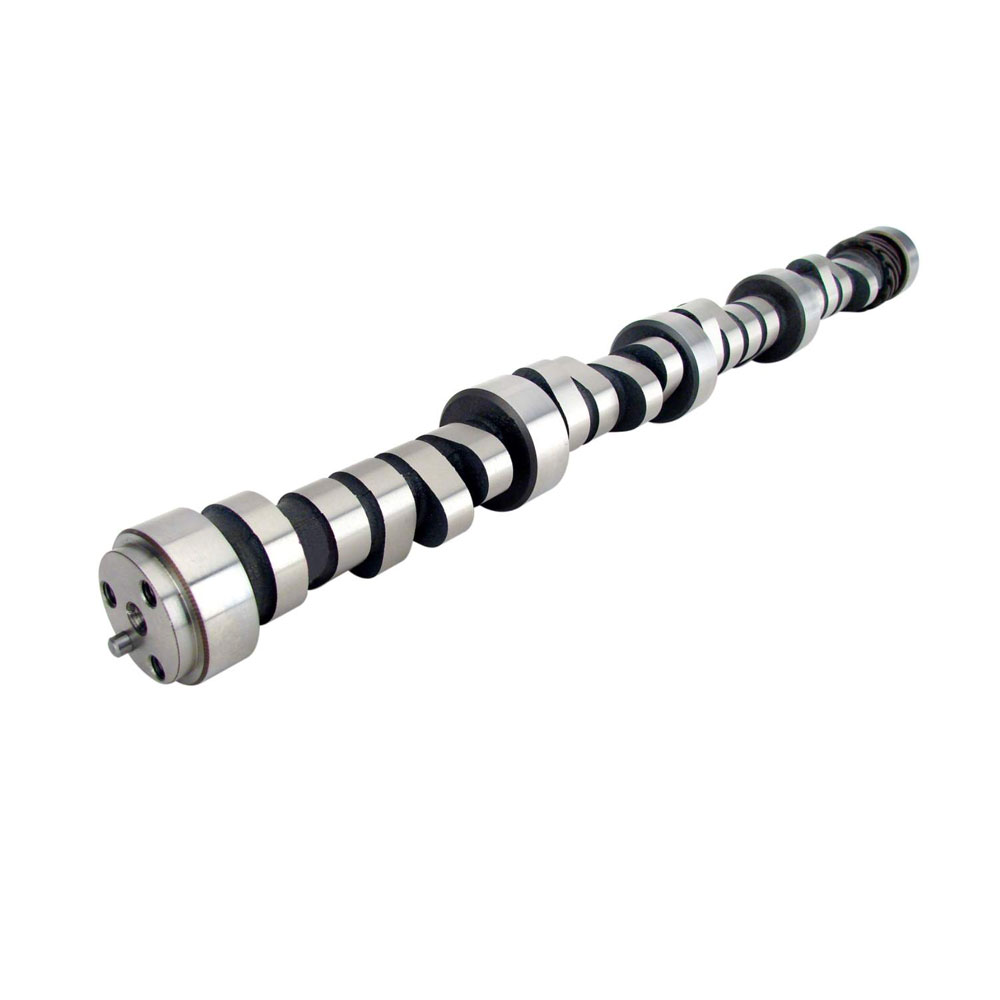

COMP Cams Camshaft 01-424-8; Xtreme Energy 2800 to 6200 RPM 0.540 in. 0.560 in. Hydraulic Roller for Chevy 454, 502 GEN VI
$522.95
Part #: 01-424-8
Brand: COMP Cams
UPC: 036584063483
Estimated Ship Date: 6/4/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance and assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Description

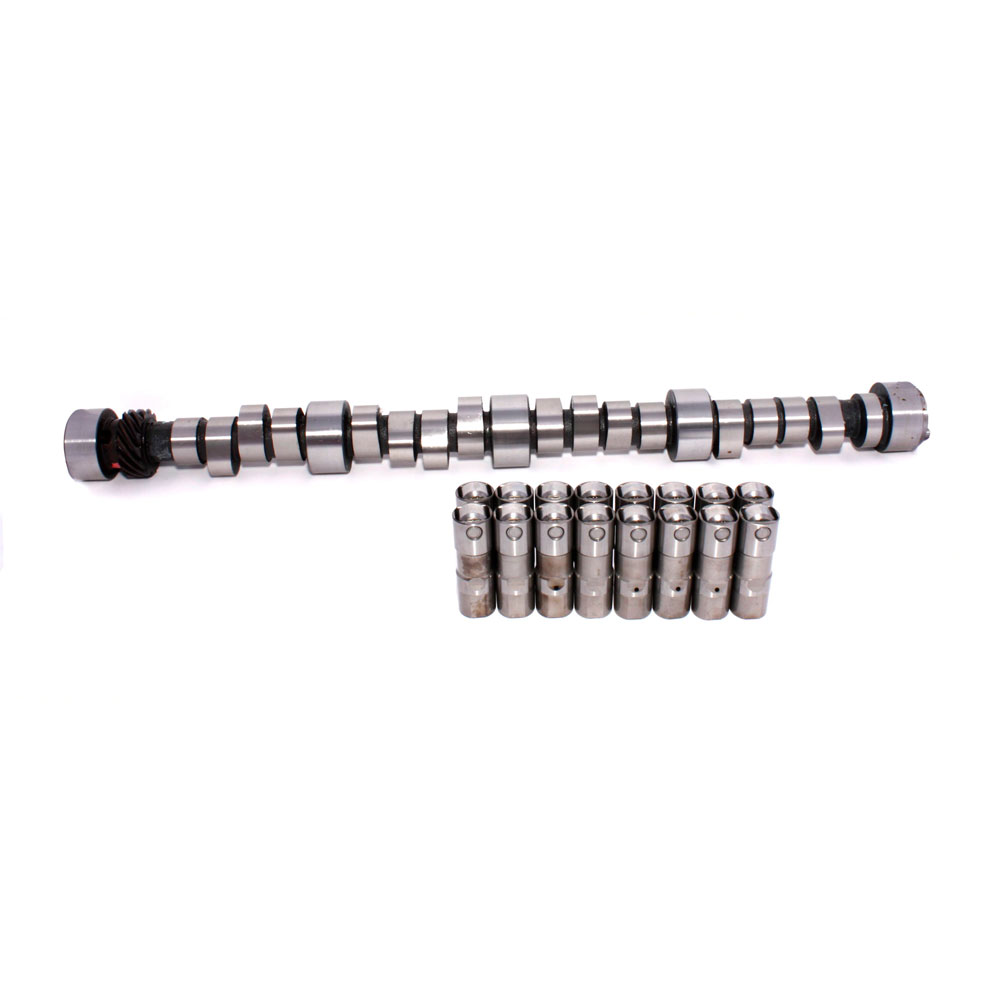

CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions.
Specifications
- Camshaft Series:
- Xtreme Energy
- Make:
- Chevy
- Engine:
- 454, 502 GEN VI
- Camshaft Type:
- Hydraulic Roller
- RPM Range:
- 2800 to 6200 RPM
- Intake Valve Lift:
- 0.540 in.
- Exhaust Valve Lift:
- 0.560 in.
- Advertised Intake Duration:
- 294 deg.
- Advertised Exhaust Duration:
- 300 deg.
- Intake Duration @ .050":
- 242 deg.
- Exhaust Duration @ .050":
- 248 deg.
- Lobe Separation:
- 110 deg.
- Cam Gear Attachment:
- 3 Bolt
- Camshaft Material:
- Austempered Ductile Iron
- Camshaft Grind Number:
- XR294HR
- Usage:
- Street Performance
- Requires Aftermarket Valve Springs:
- Yes
- Quantity:
- Sold As Each
