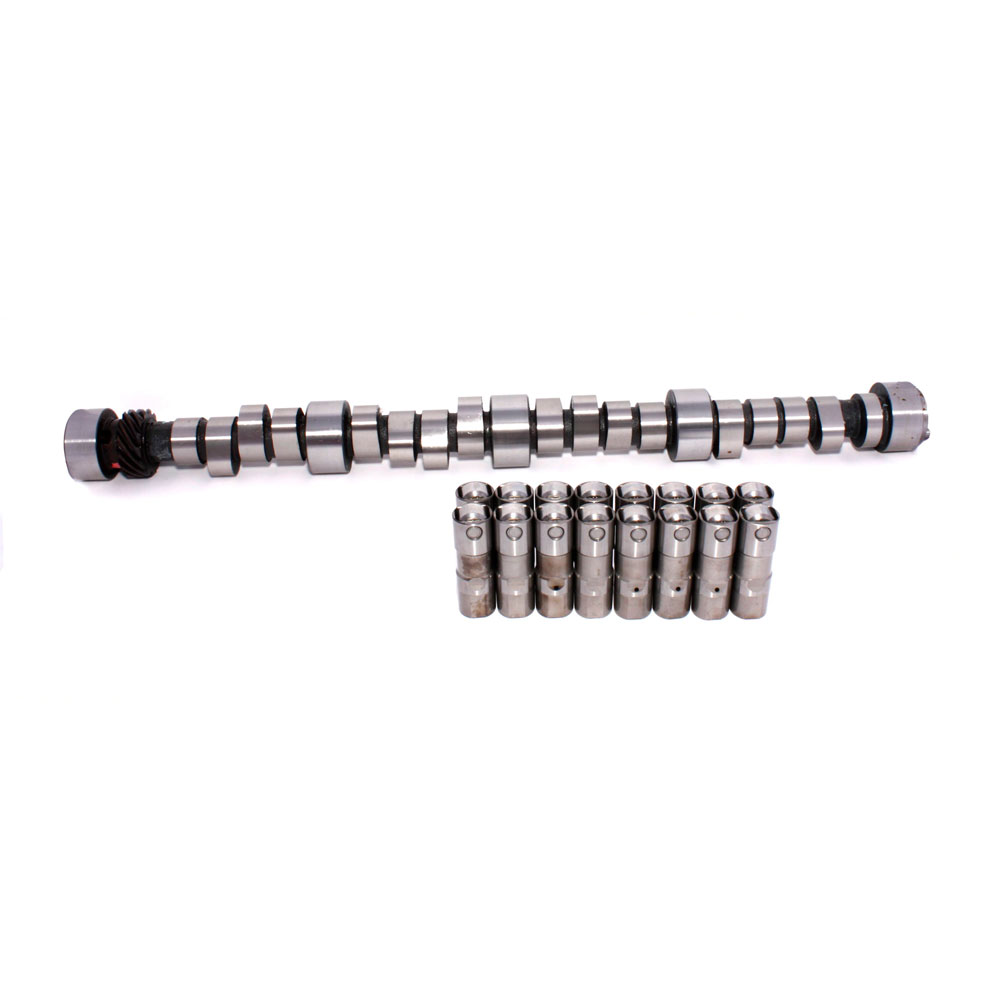

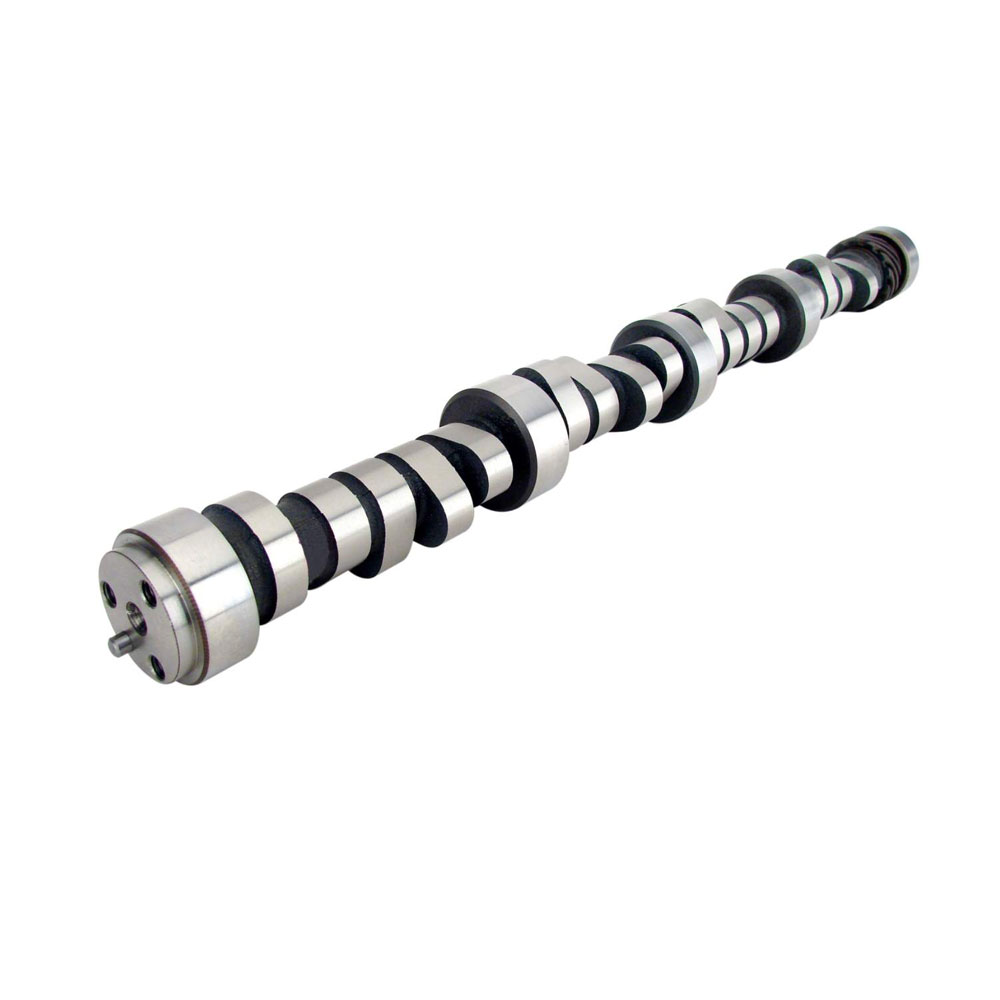

COMP Cams Camshaft 01-416-8; Xtreme Energy 1900 to 5600 RPM 0.510 in. 0.510 in. Hydraulic Roller for Chevy 454, 502 GEN VI
$522.95
Part #: 01-416-8
Brand: COMP Cams
UPC: 036584063452
Estimated Ship Date: 6/11/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance and assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Description
Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.
Specifications
- Camshaft Series:
- Xtreme Energy
- Make:
- Chevy
- Engine:
- 454, 502 GEN VI
- Camshaft Type:
- Hydraulic Roller
- RPM Range:
- 1900 to 5600 RPM
- Intake Valve Lift:
- 0.510 in.
- Exhaust Valve Lift:
- 0.510 in.
- Advertised Intake Duration:
- 276 deg.
- Advertised Exhaust Duration:
- 282 deg.
- Intake Duration @ .050":
- 224 deg.
- Exhaust Duration @ .050":
- 230 deg.
- Lobe Separation:
- 110 deg.
- Cam Gear Attachment:
- 3 Bolt
- Camshaft Material:
- Austempered Ductile Iron
- Camshaft Grind Number:
- XR276HR
- Usage:
- Street Performance
- Requires Aftermarket Valve Springs:
- Yes
- Quantity:
- Sold As Each
