Photo for Cometic Gaskets Head Gasket C5514-040; MLS Stainless Steel 0.040 in. 4.100 in.  for Ford 260 to 351W

Cometic Gaskets Head Gasket C5514-040; MLS Stainless Steel 0.040 in. 4.100 in. for Ford 260 to 351W

$87.95

Part #: C5514-040

Brand: Cometic Gaskets

UPC: 191070007294

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

"Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040"". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements."

Specifications

Engine Cylinder Head Gasket Model or Series:
MLS
Make:
Ford
Engine:
260 to 351W
Material:
Stainless Steel
Compressed Thickness:
0.040 in.
Bore Size:
4.100 in.
Notes:
Non-SVO
Quantity:
Sold As Each

Tech Resources

  • MLSheadgasketinstructions.pdf

Alternative Parts

Fel-Pro Head Gasket 1011-1; Steel Core Laminate 0.041 in. 4.100 in.  for Ford 289 to 351W

Fel-Pro Head Gasket 1011-1; Steel Core Laminate 0.041 in. 4.100 in. for Ford 289 to 351W

FEL1011-1

$45.54

Estimated Ship Date: Today

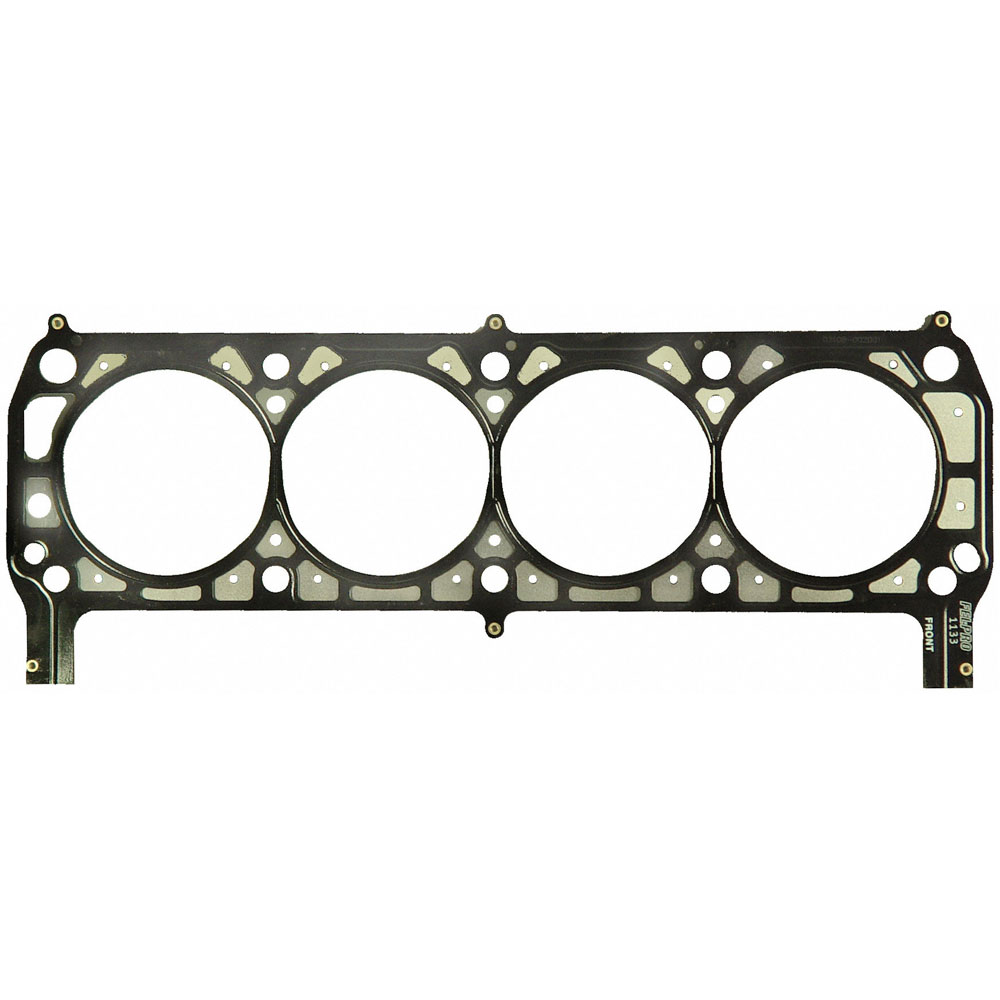

Fel-Pro Head Gasket 1133; PermaTorque MLS Stainless Steel 0.041 in. 4.100 in.  for Ford 289 to 351W

Fel-Pro Head Gasket 1133; PermaTorque MLS Stainless Steel 0.041 in. 4.100 in. for Ford 289 to 351W

FEL1133

$87.04

Estimated Ship Date: Today

JE Pistons Head Gasket FD1001-039; MLS Stainless Steel 0.039 in. 4.100 in.  for Ford 289 to 351W

JE Pistons Head Gasket FD1001-039; MLS Stainless Steel 0.039 in. 4.100 in. for Ford 289 to 351W

JEPFD1001-039

$151.86

Estimated Ship Date: Special Order

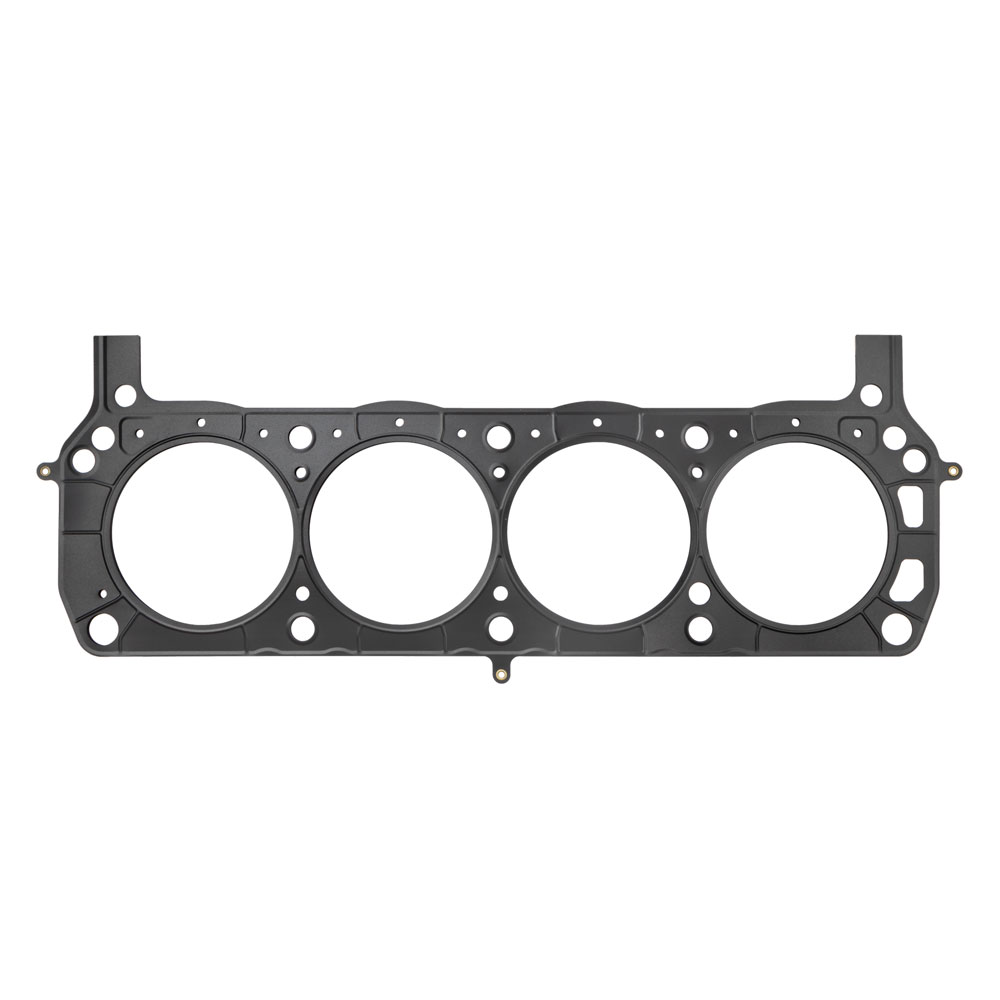

SCE Gaskets Head Gasket M361039; MLS Spartan Stainless Steel 0.039 in. 4.100 in.  for 1962 to 2001 Ford Mustang, Torino, Fairlane, Truck 260 to 351W
SCE Gaskets Head Gasket M361039; MLS Spartan Stainless Steel 0.039 in. 4.100 in.  for 1962 to 2001 Ford Mustang, Torino, Fairlane, Truck 260 to 351W

SCE Gaskets Head Gasket M361039; MLS Spartan Stainless Steel 0.039 in. 4.100 in. for 1962 to 2001 Ford Mustang, Torino, Fairlane, Truck 260 to 351W

SCEM361039

$94.42

Estimated Ship Date: Today
