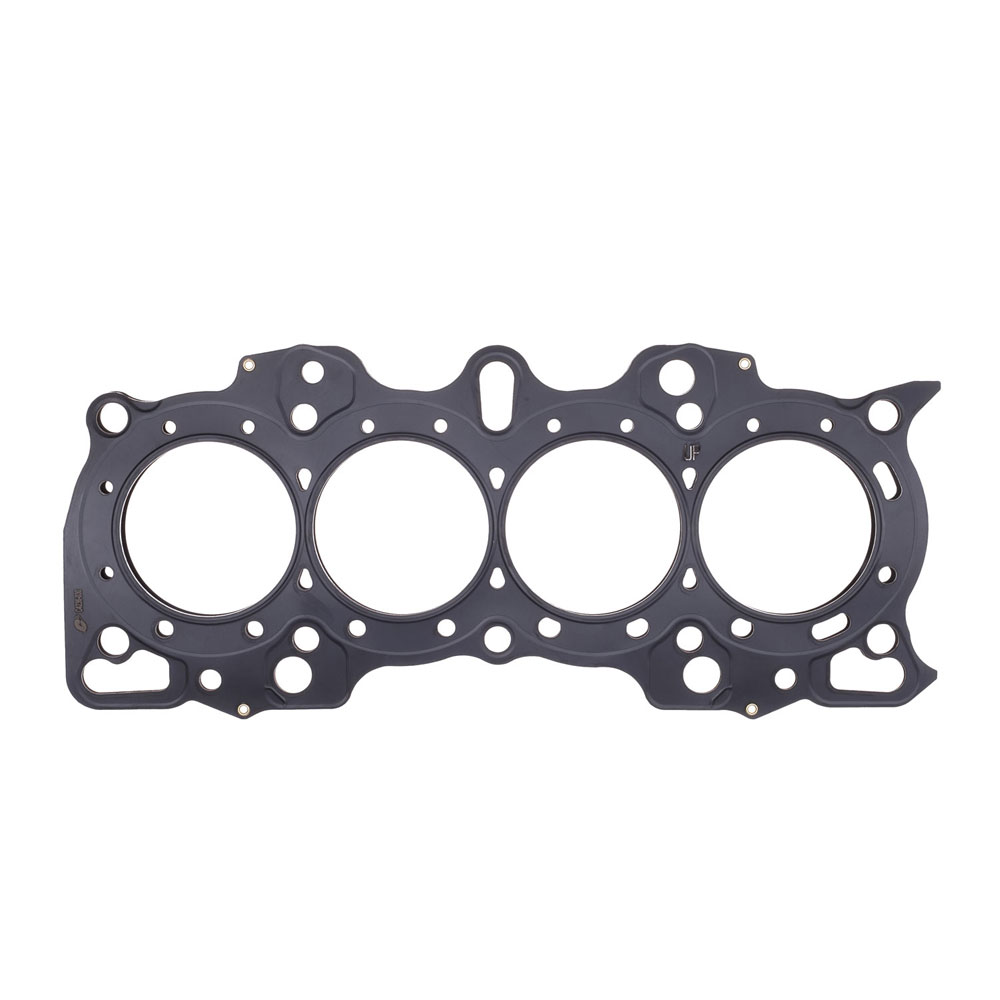

Photo for Cometic Gaskets Head Gasket C4236-040; MLS Stainless Steel 0.040 in. 81.500 mm  for 1988 to 2001 Honda B Series Non VTEC Block with VTEC Heads

Cometic Gaskets Head Gasket C4236-040; MLS Stainless Steel 0.040 in. 81.500 mm for 1988 to 2001 Honda B Series Non VTEC Block with VTEC Heads

$96.50

Part #: C4236-040

Brand: Cometic Gaskets

UPC: 191070033521

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

"Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed thickness is 0.040"". Non-VTEC block with VTEC Heads. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. Non-VTEC block with VTEC Heads."

Specifications

Engine Cylinder Head Gasket Model or Series:
MLS
Year:
1988 to 2001
Make:
Honda
Engine:
B Series Non VTEC Block with VTEC Heads
Material:
Stainless Steel
Compressed Thickness:
0.040 in.
Bore Size:
81.500 mm
Quantity:
Sold As Each

Tech Resources

  • MLSheadgasketinstructions.pdf
