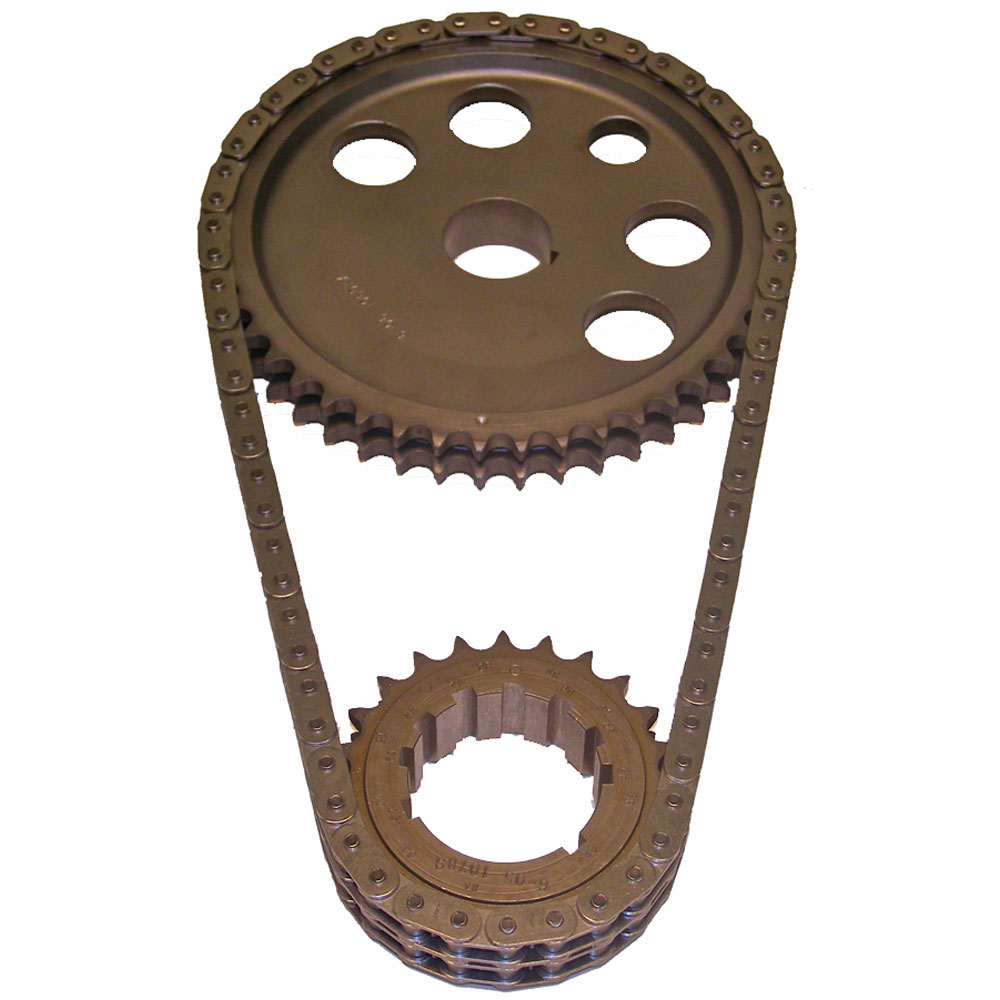

Photo for Cloyes Timing Set 9-3603X9; Premium Billet True Roller Double Roller for 1956 to 1991 Chrysler 273 to 360 LA, 354, 392, Early HEMI

Cloyes Timing Set 9-3603X9; Premium Billet True Roller Double Roller for 1956 to 1991 Chrysler 273 to 360 LA, 354, 392, Early HEMI

$175.92

Part #: 9-3603X9

Brand: Cloyes

UPC: 750385703354

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Induction Heat-Treated, Billet Steel Sprockets
  • 9 Keyway Crank Sprocket allows +/- 8 degrees
  • Adjustability in 2 crank degree increments
  • Premium True Roller Chain with .250 Diameter Rollers
  • Hand Matched to qualify both center distance and run-out
  • Available in .005” and .010” undersize

Product Description

Cloyes Race Billet True Roller Speed Sets are race ready. Sprockets are machined from premium billet steel on our state-of-the-art CNC equipment ensuring the highest quality product and eliminating inconsistencies found in other aftermarket sets. Both sprockets are induction hardened and oil-quenched using our in-house multi-stage heat treat process. Our Premium True Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat-treated for maximum fatigue resistance.The .250 inch rollers are cold rolled and hardened to exacting standards increasing load and RPM capabilities. Race Billet sets are available with 3 or 9 keyway crank sprockets offering multiple valve timing settings. All of our Race Billet sets are hand-matched at our manufacturing facility to qualify center distance and run-out. This Cloyes exclusive ensures that you get the very best with every set.

Specifications

Timing Set Series:
Premium Billet True Roller
Year:
1956 to 1991
Make:
Chrysler
Engine:
273 to 360 LA, 354, 392, Early HEMI
Chain Style:
Double Roller
Cam Gear Material:
Billet Steel
Adjustable Cam Gear:
No
Crank Gear Material:
Billet Steel
Adjustable Crank Gear:
Yes
Includes Torrington Bearing or Thrust Washer:
No
Number Of Keyways:
9 Keyway
Quantity:
Sold As Kit
